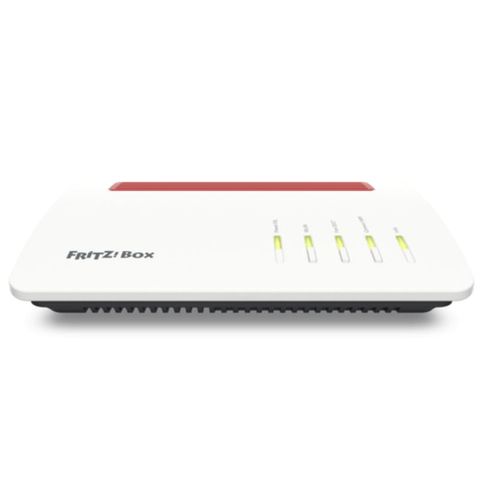

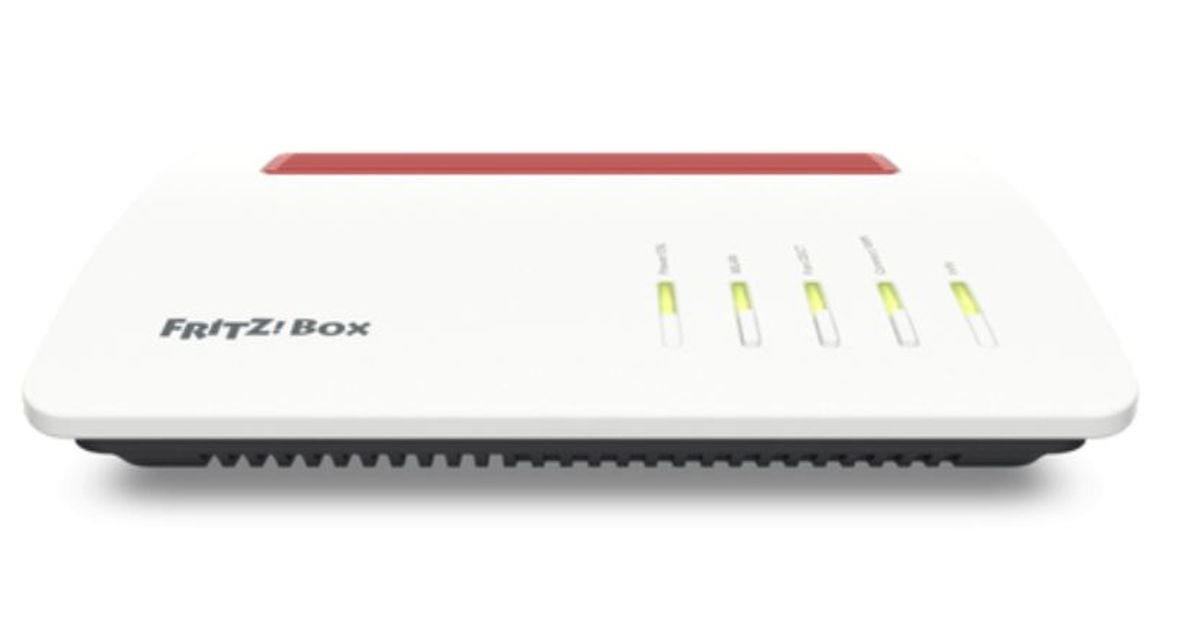

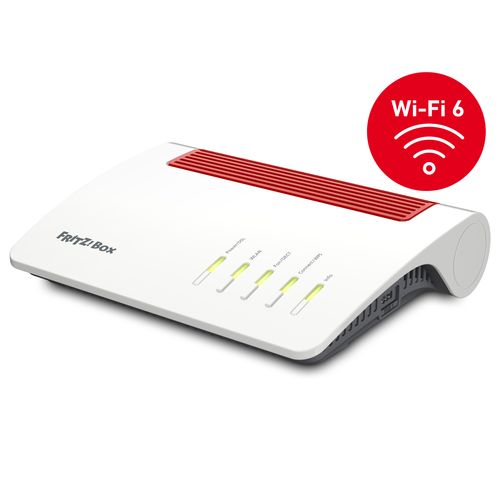

FRITZ!Box 7590 AX wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White
FRITZ!Box 7590 AX, Wi-Fi 6 (802.11ax), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, ADSL2+, White, Tabletop router
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | AVM |
| Product code | 116401617 |
| EAN | 04023125029981 |
| Manufacturer part number | 20002998 |
| Category | Access points and routers |
| WAN connection | |
|---|---|
| Ethernet WAN | Y |
| DSL WAN | Y |
| SIM card slot | N |
| Network | |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Y |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Dynamic DNS (DDNS) | Y |
| Media server | Y |
| 4G | N |
| 5G | N |
| Wake-on-LAN ready | Y |
| Security algorithms | WPA2, WPA3 |
| Wireless LAN features | |
|---|---|
| WLAN data transfer rate (first band) | 1200 Mbit/s |
| WLAN data transfer rate (second band) | 2400 Mbit/s |
| Mobile network | |
|---|---|
| 3G | N |
| DSL features | |
|---|---|
| ADSL2+ | Y |
| VDSL | Y |

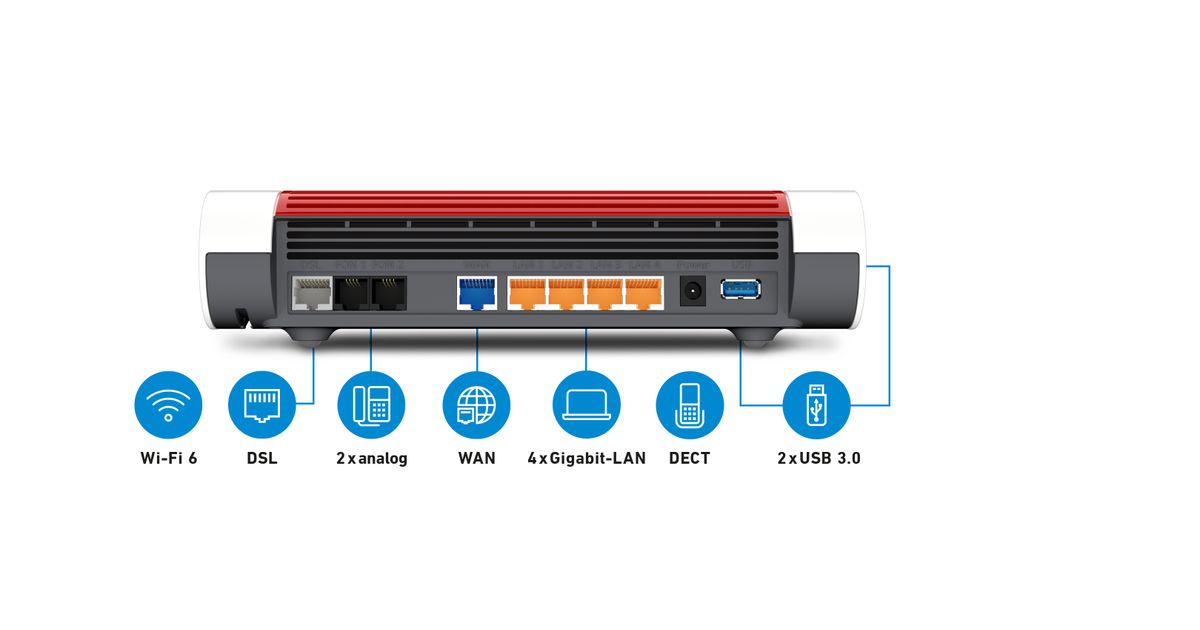

| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| RJ-11 ports quantity | 2 |
| DC-in jack | Y |
| Management features | |
|---|---|
| Web-based management | Y |
| Intelligent Mesh technology | Y |
| Security | |
|---|---|
| WPS push button | Y |
| Firewall | Y |
| Guest access | Y |
| Stateful Packet Inspection (SPI) | Y |
| Network address translation (NAT) | Y |
| Features | |
|---|---|
| MU-MIMO technology | Y |
| Wall mountable | Y |
| Built-in processor | Y |
| Ergonomics | |
|---|---|
| Parental control | Y |
| Indication light | N |
| Performance | |
|---|---|
| DHCP server | Y |
| Firmware upgradeable | Y |
| Power source type | AC |
| Protocols | |
|---|---|
| Universal Plug and Play (UPnP) | Y |
| Design | |
|---|---|
| Product type | Tabletop router |
| Product colour | White |
| LED indicators | DSL, WLAN, WPS |
| Antenna design | Internal |
| Packaging content | |
|---|---|
| Cables included | DSL, LAN (RJ-45) |
| AC adapter included | Y |
| Packaging data | |
|---|---|
| Quick installation guide | Y |
| Processor | |
|---|---|
| Processor cores | 2 |
| Power | |
|---|---|
| Power consumption (typical) | 16 W |
| Weight & dimensions | |
|---|---|
| Width | 254 mm |
| Depth | 191 mm |
| Height | 63 mm |
