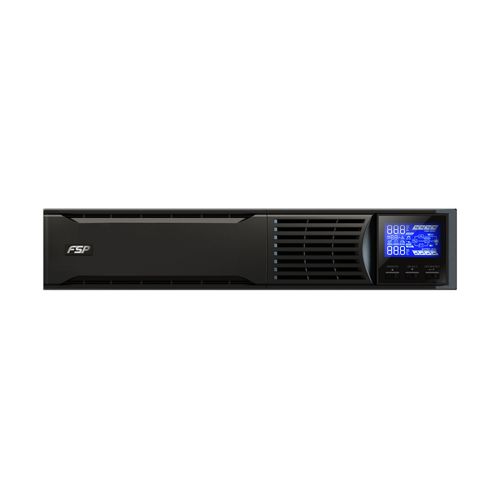

FSP/Fortron Champ Rack 2K Double-conversion (Online) 2 kVA 1800 W
FSP/Fortron Champ Rack 2K, Double-conversion (Online), 2 kVA, 1800 W, Pure sine, 100 V, 240 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | FSP/Fortron |
| Product code | 03128678 |
| EAN | 02000000852201 |
| Manufacturer part number | CHAMP 2K RACK |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 2 kVA |
| Output power | 1800 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Output frequency regulation | ±0.5 Hz |
| Output voltage regulation | ±1% |
| Harmonized System (HS) code | 85078000 |
| Power | |
|---|---|
| Power factor | 0.9 |
| Other features | |
|---|---|
| Noise level | 50 dB |
| USB 2.0 ports quantity | 1 |
| Ports & interfaces | |
|---|---|
| USB port | Y |
| RS-232 ports | 1 |
| Battery | |
|---|---|
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of batteries supported | 4 |
| Design | |
|---|---|
| Form factor | Rackmount |
| Product colour | Black |
| Rack capacity | 2U |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 438 mm |
| Depth | 410 mm |
| Height | 88 mm |
| Weight | 19 kg |
Product Description
FSP Champ is the high density version of double-conversion online UPS with an output power factor that reaches 0.9 and featured with ECO mode for energy saving.
FSP Champ Rack is the high density version of double-conversion online UPS with a output power factor 0.9. It’s designed in small cabinet with microprocessor controller.
Champ also have USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.
FSP Champ Rack is the high density version of double-conversion online UPS with a output power factor 0.9. It’s designed in small cabinet with microprocessor controller.
Champ also have USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.
