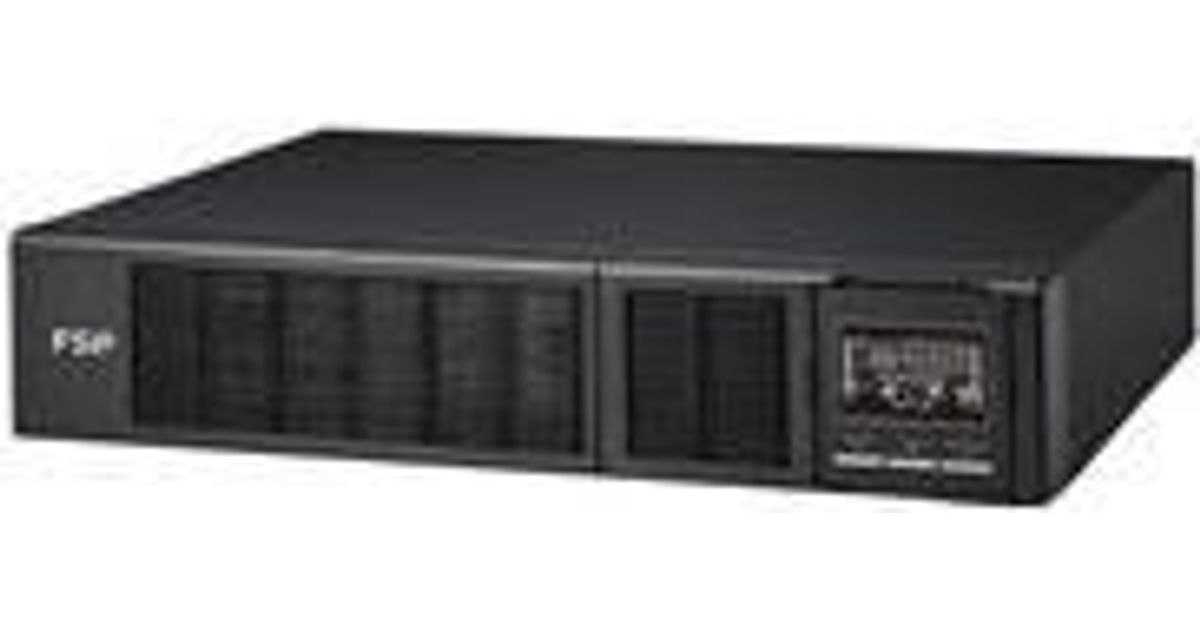

FSP/Fortron Clippers RT 3k Double-conversion (Online) 2000 kVA 2000 W
FSP/Fortron Clippers RT 3k, Double-conversion (Online), 2000 kVA, 2000 W, Sine, 110 V, 300 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | FSP/Fortron |
| Product code | 214265639 |
| EAN | 04713224524905 |
| Manufacturer part number | CLIPPERS RT 3K |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 2000 kVA |
| Output power | 2000 W |
| Waveform | Sine |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 40 - 70 Hz |
| Output frequency | 46/64 Hz |
| Output frequency regulation | 0.1 Hz |
| Output voltage regulation | 1% |
| Number of input phases | 1 |
| Crest factor | 3:1 |
| ECO mode | Y |
| Total Harmonic Distortion (THD) (linear load) | 2% |
| Total Harmonic Distortion (THD) (non-linear load) | 4% |
| Surge protection | N |
| Audible alarm(s) | Y |
| Audible alarm modes | Alarm when on battery, Fault, Overload alarm, Low battery alarm |
| Certification | EMC EN62040-2 C2 |
| Display | |
|---|---|
| Response time | 4 ms |
| Power | |
|---|---|
| Power factor | 0.99 |
| Other features | |
|---|---|
| Noise level | 50 dB |
| Display | LCD |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler |
| USB port | Y |
| USB port type | USB Type-B |
| Serial interface | Y |
| Serial interface type | RS-232 |
| Emergency Power Off (EPO) connector | Y |
| Battery | |
|---|---|
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of battery cells | 4 |
| Typical backup time at full load | 33 min |
| Battery recharge time | 3 h |
| Hot-swap battery | Y |
| Design | |
|---|---|
| Form factor | Rackmount |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Sustainability | |
|---|---|
| Sustainability compliance | Y |
| Sustainability certificates | CE |
| Weight & dimensions | |
|---|---|
| Width | 438 mm |
| Depth | 510 mm |
| Height | 88 mm |
| Weight | 19.5 kg |
Product Description
FSP Clippers Series Clippers series is a premium featured online double conversion UPS with Rack/Tower design and high efficiency to reduce customer‘s total cost of ownership. The internal hot-swappable battery increases system reliability and reduce MTTR; the parallel function is designed for future equipment expansion. Its special firmware design can adapt variouse applications like laser printer, ultrasound device and supporting long back-up time with battery monitoring.
