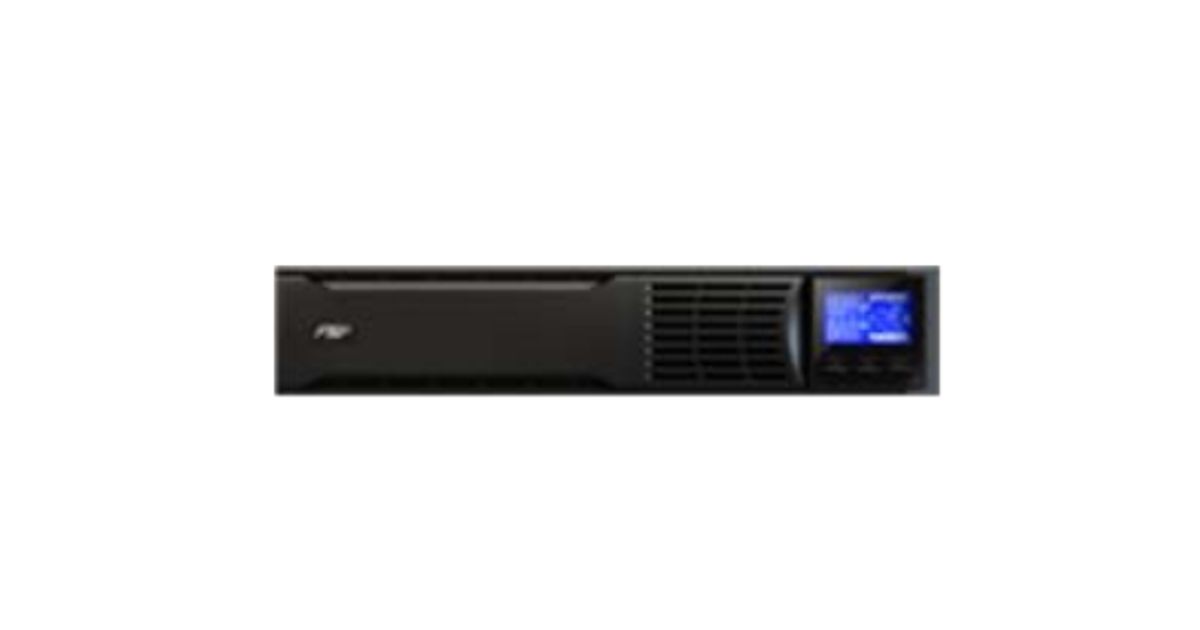

For illustrative purpose only
FSP/Fortron Eufo 2k Line-Interactive 2 kVA 1800 W 8 AC outlet(s)
FSP/Fortron Eufo 2k, Line-Interactive, 2 kVA, 1800 W, Pure sine, 162 V, 290 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | FSP/Fortron |
| Product code | 216827315 |
| EAN | 04711140486130 |
| Manufacturer part number | PPF16A1500 |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 2 kVA |
| Output power | 1800 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 162 V |
| Input operation voltage (max) | 290 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 1.5% |
| Automatic Voltage Regulation (AVR) | Y |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency (On-line mode) | 95% |
| Efficiency (ECO mode) | 97% |
| Input power factor | 0.99 |
| Output power factor | 0.9 |
| Crest factor | 3:1 |
| ECO mode | Y |
| Emergency Power Off (EPO) | Y |
| Audible alarm(s) | Y |
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| Detachable power cord | Y |
| Charging current | 1.5 A |
| Certification | EAC |
| Display | |
|---|---|
| Response time | 6 ms |
| Power | |
|---|---|
| Efficiency | 97% |
| Other features | |
|---|---|
| Noise level | 45 dB |
| Performance | |
|---|---|
| Management protocols | SNMP |
| Power source type | AC |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| USB port | Y |
| USB port type | USB Type-B |
| Serial interface | Y |
| Serial interface type | RS-232, RS-485 |
| RS-232 ports | 1 |
| Emergency Power Off (EPO) connector | Y |
| SmartSlot | Y |
| Battery | |
|---|---|
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of batteries supported | 8 |
| Typical backup time at full load | 4 min |
| Typical backup time at half load | 11 min |
| Battery recharge time | 4 h |
| Hot-swap battery | Y |
| Design | |
|---|---|
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Rack capacity | 2U |
| Display type | LCD |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Sustainability | |
|---|---|
| Sustainability compliance | Y |
| Sustainability certificates | CE |
| Weight & dimensions | |
|---|---|
| Width | 438 mm |
| Depth | 510 mm |
| Height | 88 mm |
| Weight | 21.5 kg |
| Battery width | 43.8 cm |
| Battery depth | 41 cm |
| Battery height | 8.8 cm |
| Battery weight | 10.8 kg |
| Packaging content | |
|---|---|
| Rack mount kit | Y |
| Cables included | Input power cable, USB cable |
Product Description
FSP Eufo Series rating is from 1.1KVA to 3.0KVA and implemented protect functions for power failures, surge overvoltage and brownout. Rack & Tower with easy-shift LCD design is flexible for installation. Moreover, this series built/in Efficiency corrective Optimizer (ECO) that the efficiency is up to 98% for more energy saving. The application is suitable for networking, telecom, server and mission/critical applications.
