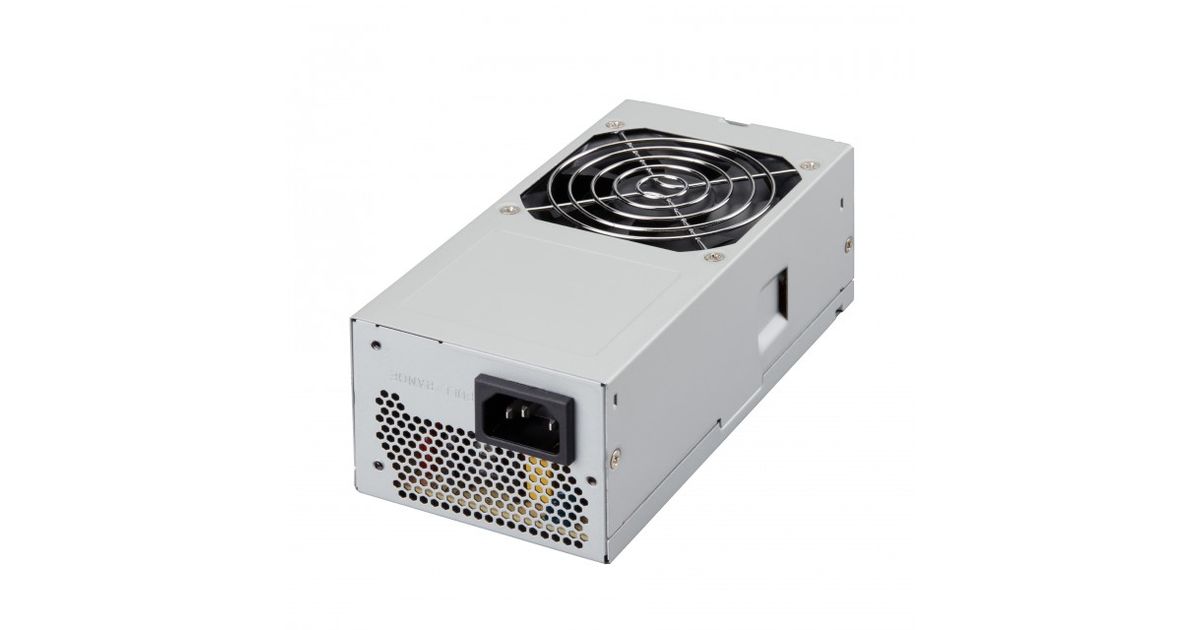

FSP/Fortron FSP350-50TAC power supply unit 350 W ATX
FSP/Fortron FSP350-50TAC, 350 W, 90 - 264 V, 47 - 63 Hz, 5 - 10 A, Active, 85 W
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | FSP/Fortron |
| Product code | 2210245778 |
| Manufacturer part number | 9PA350D301 |
| Category | Toiteplokid |
| Power | |
|---|---|
| Total power | 350 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 - 10 A |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 85 W |
| Combined power (+5V) | 85 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V) | 29.18 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 16 ms |
| Features | |
|---|---|
| Power protection features | Over current, Over voltage, Overheating |
| Certification | CB 62368, CE, FCC, TUV, CUL |
| Mouse | |
|---|---|
| Purpose | PC |
| Performance | |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.52 |
| Mean time between failures (MTBF) | 100000 h |
| Design | |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 175 mm |
| Depth | 85 mm |
| Height | 65 mm |
Product Description
FSP TAC Series features with eco-friendly design, which allows TAC series to reach up to 85% efficiency. TAC series also equipped with complete protection to prevent your system from damage. TAC series does the job efficiently and reliably, making it a stable power supply unit built to satisfy the demands of all kind of system build.
