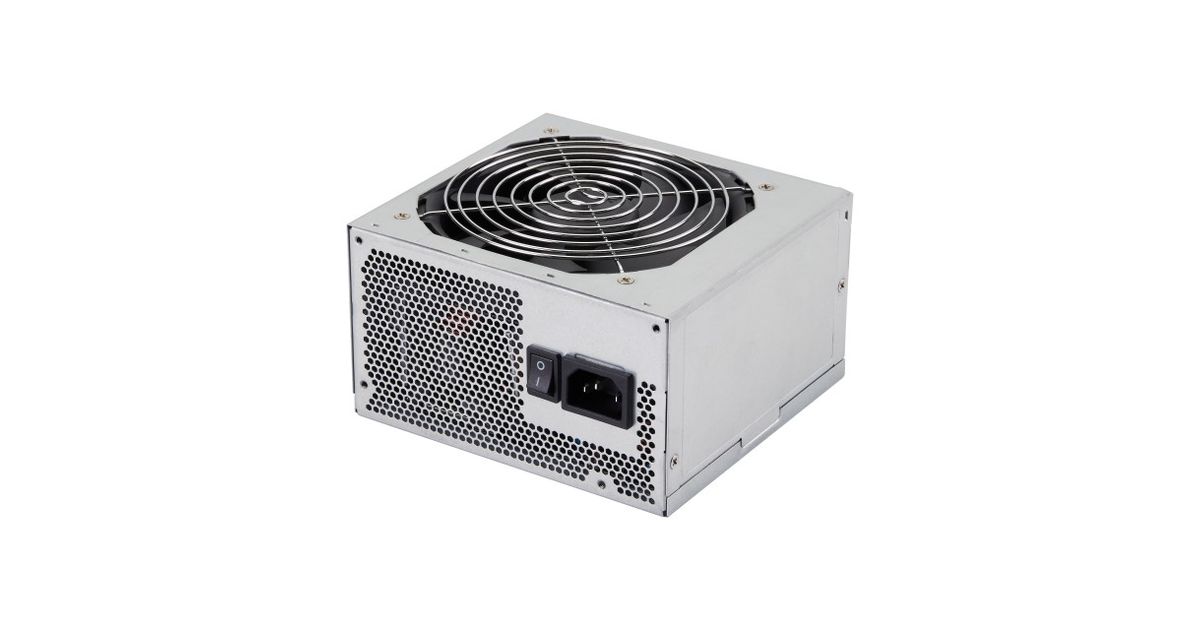

For illustrative purpose only
FSP/Fortron FSP550-50ABA power supply unit 550 W ATX
FSP/Fortron FSP550-50ABA, 550 W, 90 - 264 V, 47 - 63 Hz, 4 - 8 A, Active, 100 W
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | FSP/Fortron |
| Product code | 2210370424 |
| Manufacturer part number | 9PA550A702 |
| Category | Toiteplokid |
| Power | |
|---|---|
| Total power | 550 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 4 - 8 A |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 45.83 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
| Features | |
|---|---|
| Power protection features | Over current, Over voltage, Overheating |
| Certification | CB 62368, CB 60950, EMC, FCC, TUV, CUL |
| Mouse | |
|---|---|
| Purpose | PC |
| Performance | |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.52 |
| Mean time between failures (MTBF) | 100000 h |
| Fan diameter | 12 cm |
| Design | |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Product Description
FSP ABA Series features with eco-friendly design, which allows ABA series to reach up to 90% efficiency. ABA series also equipped with complete protection to prevent your system from damage. ABA series does the job efficiently and reliably, making it a stable power supply unit built to satisfy the demands of all kind of system build.
