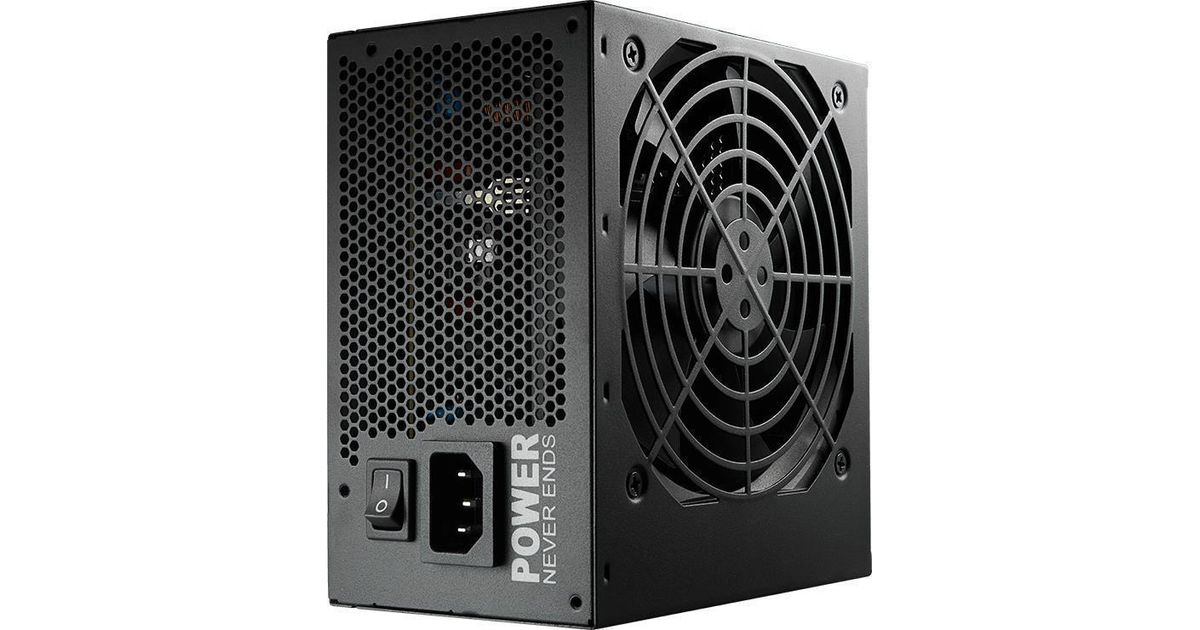

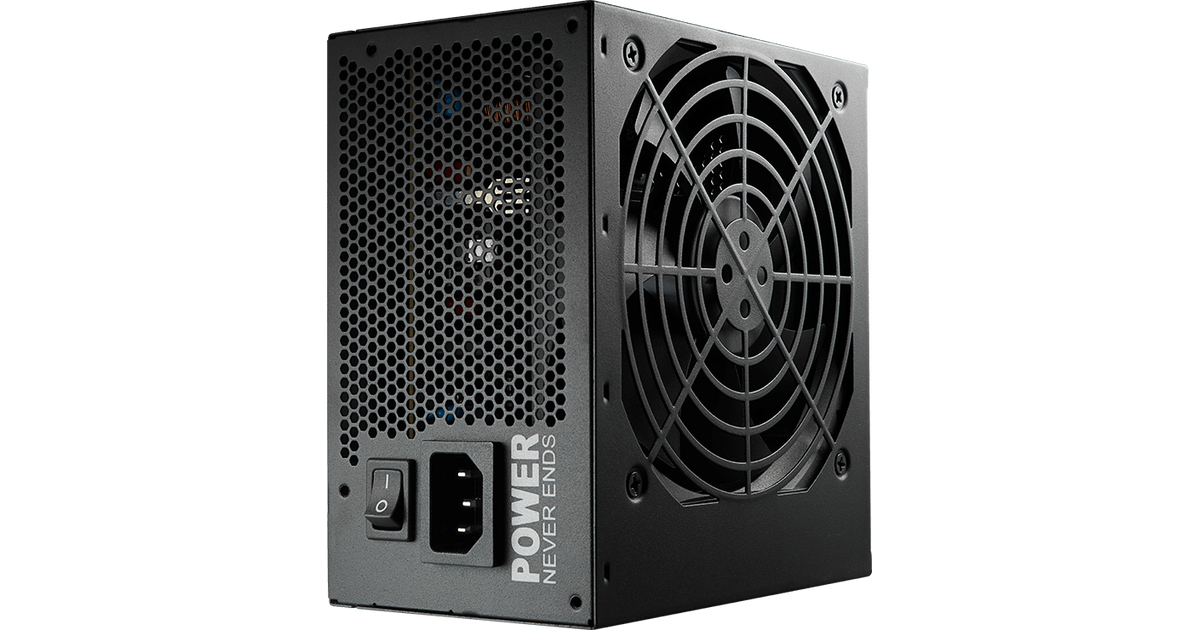

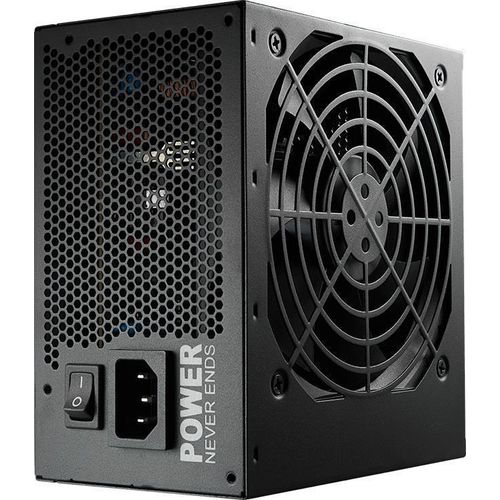

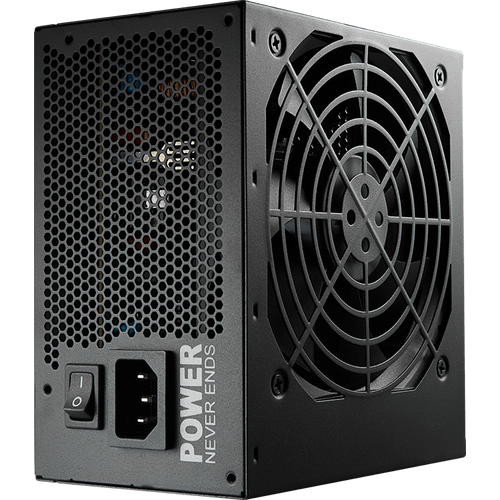

FSP/Fortron Hyper 80+ PRO 700W power supply unit 24-pin ATX ATX Black
FSP/Fortron Hyper 80+ PRO 700W, 700 W, 200 - 240 V, 50/60 Hz, 5 A, 100 W, 696 W
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | FSP/Fortron |
| Product code | 165773174 |
| EAN | 04713224525728 |
| Manufacturer part number | HYPER 80+PRO 700 |
| Category | Toiteplokid |
| Power | |
|---|---|
| Total power | 700 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 5 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 696 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 58 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Features | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Short circuit |
| Ports & interfaces | |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 8 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Y |
| Internal I/O | |
|---|---|
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Mouse | |
|---|---|
| Purpose | PC |
| Performance | |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS White |
| ATX version | 2.52 |
| Fan diameter | 12 cm |
| Design | |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| On/off switch | Y |
| Weight & dimensions | |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.57 kg |
Product Description
The new HYPER 80+ Pro PSUs comply fully ATX 12 v2.52 standard and latest safety 62368 regulation as well, and features with all black and high-grade ribbon cables, will give your PC a polished look. The HYPER 80+ Pro series is characterized by a powerful single +12V rail design that continually delivers maximum performance for the most demanding components, while FSP’s custom DC-DC design provides safety and power efficiency. With an 230V 80 Plus™ rating, both models deliver over 85% high efficiency and low noise levels thanks to its thermal control fan design, where a large 120mm fan takes care of cooling duties when required, making it excellent for situations that are sensitive to size and noise.
80 Plus 230V EU White Certification
HYPER 80+ PRO series, 80 PLUS® 230V EU White certified, saves energy through its high efficiency up to 82% and excesses the standard through its high efficiency up to 85%.
DC-to-DC Module Design
With a 12V SR circuit and the DC to DC structure, HYPER 80+ PRO series ensure you outstanding conversion efficiency and provides stable output voltage.
450V 105C, Heavy-duty capacitor
The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.
Energy Related ErP/Eup 2013
Green Power! The total AC power consumption of the completed system is less than 5Vsb rail to support the new EU Regulation ErP 2013 for modern day systems.
Keep in Compliance IEC 62368
FSP Group provides a full kinds of additional safety approvals to keep designs ahead of the changing regulations. FSP has upgraded the majority of power supplies to the new IEC 62368 standard for your gaming rigs.
Intelligent Fan Speed Control
An advanced thermal control fan makes optimal cooling and reduces noise under maximum operation.
120mm fan and heat dissipation design to spin quietly and keep cooling under maximum operation.
All Black Round Cables
The all black coating round cables give your system a superior look rather so many entry-level power supplies.
80 Plus 230V EU White Certification
HYPER 80+ PRO series, 80 PLUS® 230V EU White certified, saves energy through its high efficiency up to 82% and excesses the standard through its high efficiency up to 85%.
DC-to-DC Module Design
With a 12V SR circuit and the DC to DC structure, HYPER 80+ PRO series ensure you outstanding conversion efficiency and provides stable output voltage.
450V 105C, Heavy-duty capacitor
The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.
Energy Related ErP/Eup 2013
Green Power! The total AC power consumption of the completed system is less than 5Vsb rail to support the new EU Regulation ErP 2013 for modern day systems.
Keep in Compliance IEC 62368
FSP Group provides a full kinds of additional safety approvals to keep designs ahead of the changing regulations. FSP has upgraded the majority of power supplies to the new IEC 62368 standard for your gaming rigs.
Intelligent Fan Speed Control
An advanced thermal control fan makes optimal cooling and reduces noise under maximum operation.
120mm fan and heat dissipation design to spin quietly and keep cooling under maximum operation.
All Black Round Cables
The all black coating round cables give your system a superior look rather so many entry-level power supplies.
