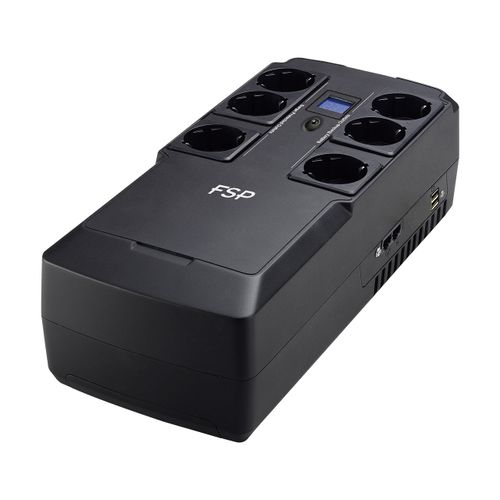

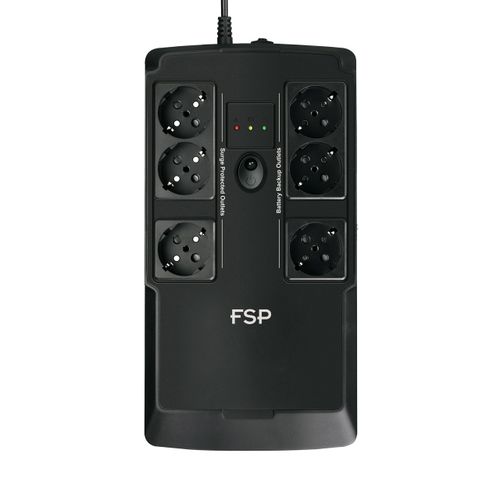

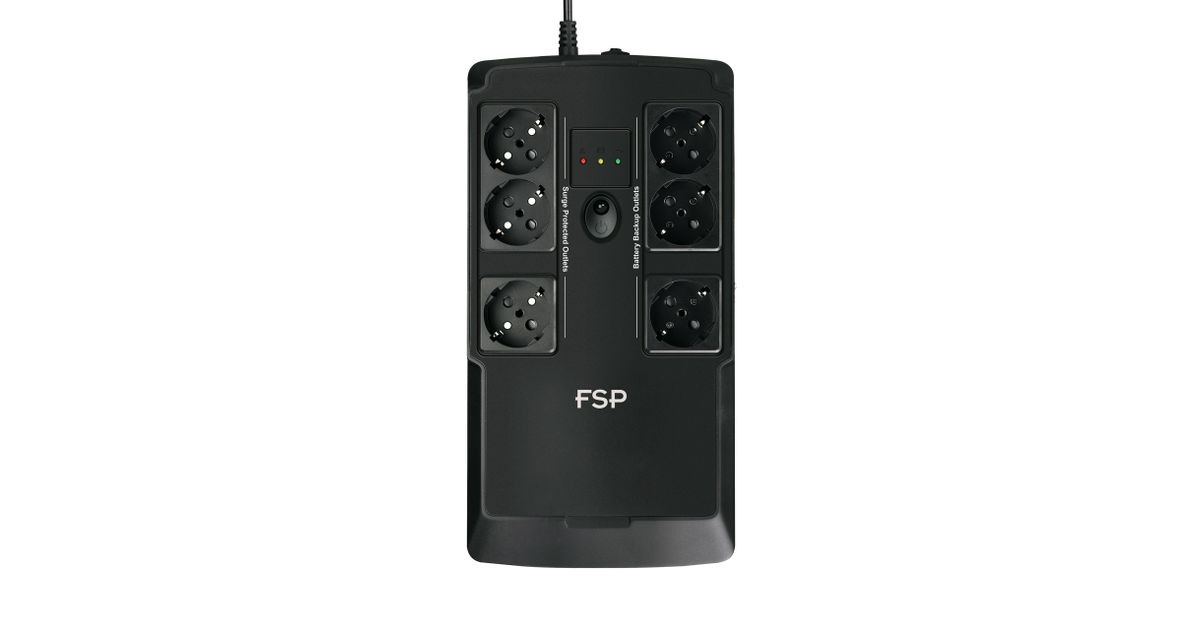

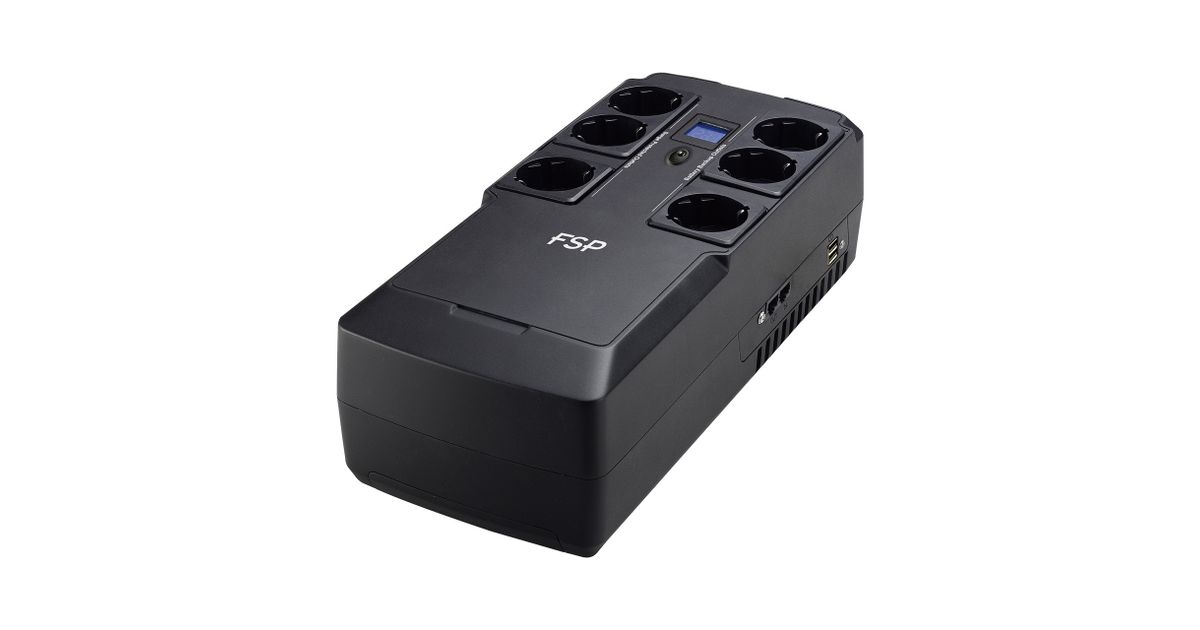

FSP/Fortron NanoFit 800 0.8 kVA 480 W 6 AC outlet(s)
FSP/Fortron NanoFit 800, 0.8 kVA, 480 W, Sine, 220 V, 240 V, 50/60 Hz
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | FSP/Fortron |
| Product code | 03128681 |
| EAN | 04713224521157 |
| Manufacturer part number | Nano FIT 800 |
| Category | UPS hardware |
| Features | |
|---|---|
| Output power capacity | 0.8 kVA |
| Output power | 480 W |
| Waveform | Sine |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Output frequency regulation | ±1 Hz |
| Output voltage regulation | ±10%% |
| Surge protection | Y |
| Surge protection features | Network |
| Power protection features | Overcharge, Overdischarge, Overload |
| Harmonized System (HS) code | 85078000 |
| Display | |
|---|---|
| Response time | 6 ms |
| Other features | |
|---|---|
| Noise level | 40 dB |
| USB 2.0 ports quantity | 2 |
| Ports & interfaces | |
|---|---|
| AC outlets quantity | 6 AC outlet(s) |
| USB port | Y |
| USB port type | USB Type-A |
| Ethernet LAN (RJ-45) ports | 2 |
| Battery | |
|---|---|
| Battery capacity | 5 Ah |
| Battery voltage | 12 V |
| Number of batteries supported | 1 |
| Design | |
|---|---|
| Form factor | Compact |
| Product colour | Black |
| Display type | LCD |
| Performance | |
|---|---|
| Safety | CE |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 158.5 mm |
| Depth | 305 mm |
| Height | 95 mm |
| Weight | 2.9 kg |
Product Description
A compact size with stand and mounting flexibility Off line UPS to provide the expected backup power for home, gaming or personal appliances.
Compact size can be desktop or wall-mounted
RJ45 Surge Protection safeguards your equipment against damaging surges and spikes that travel along utility and internet lines.
Nanofit 600/800 can be monitored by computer software
(This function only available for UPS with Type-B com. Port)
FSP UPS provides back up battery power so you can work through short and medium length power outages.
Protect your productivity from the constant threat of bad power and lost data.
Compact size can be desktop or wall-mounted
RJ45 Surge Protection safeguards your equipment against damaging surges and spikes that travel along utility and internet lines.
Nanofit 600/800 can be monitored by computer software
(This function only available for UPS with Type-B com. Port)
FSP UPS provides back up battery power so you can work through short and medium length power outages.
Protect your productivity from the constant threat of bad power and lost data.
