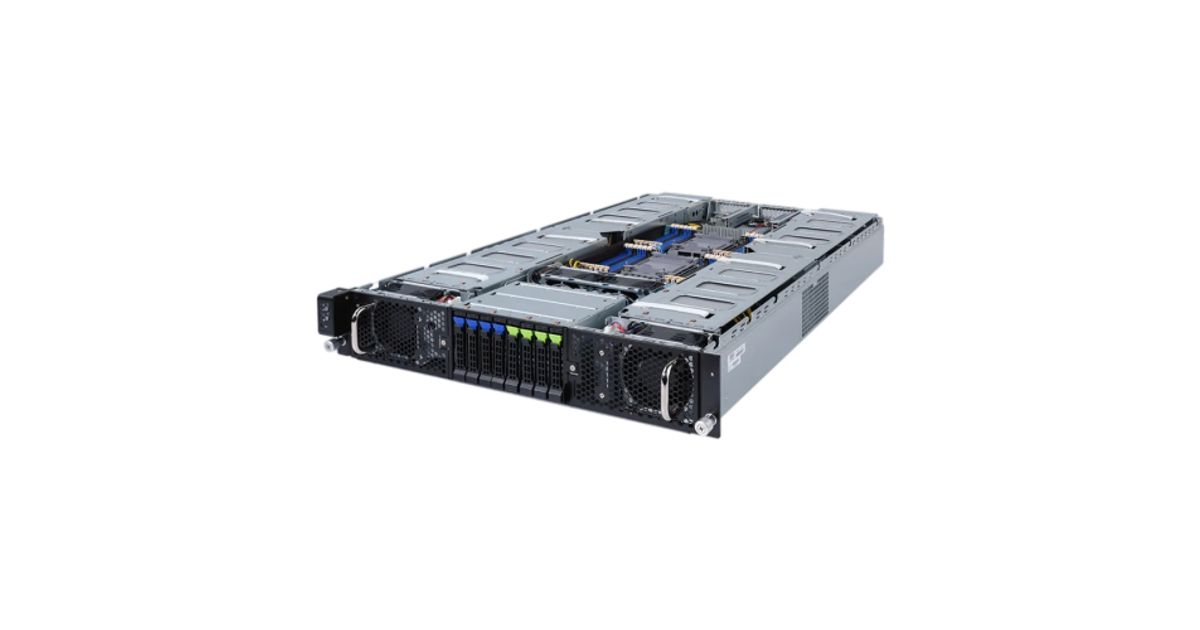

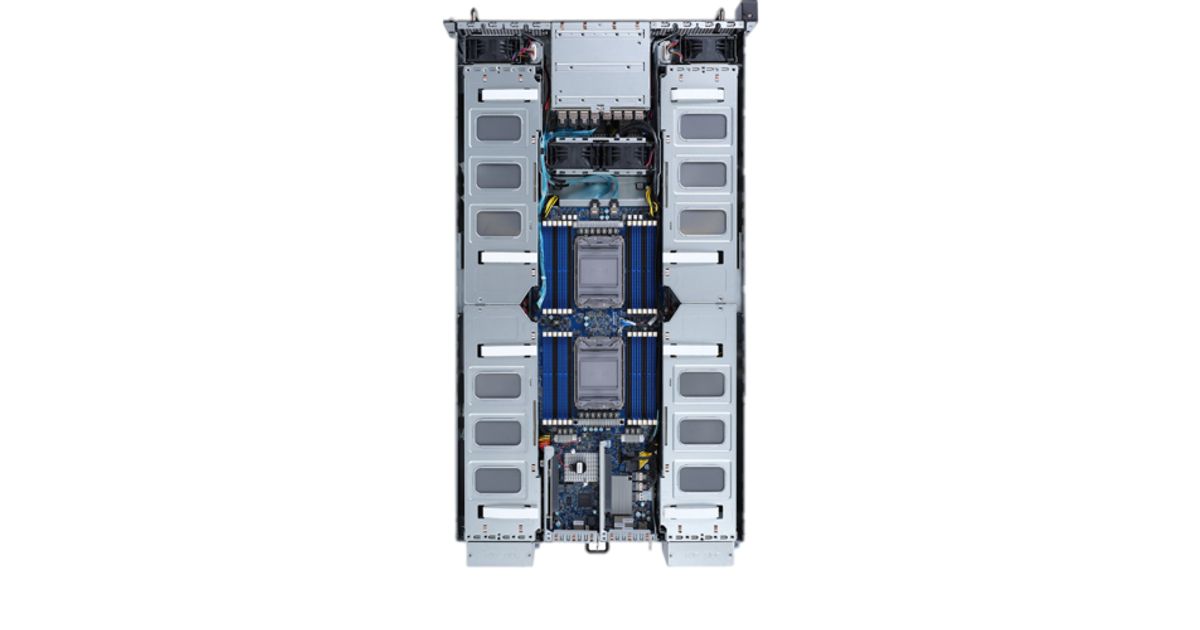

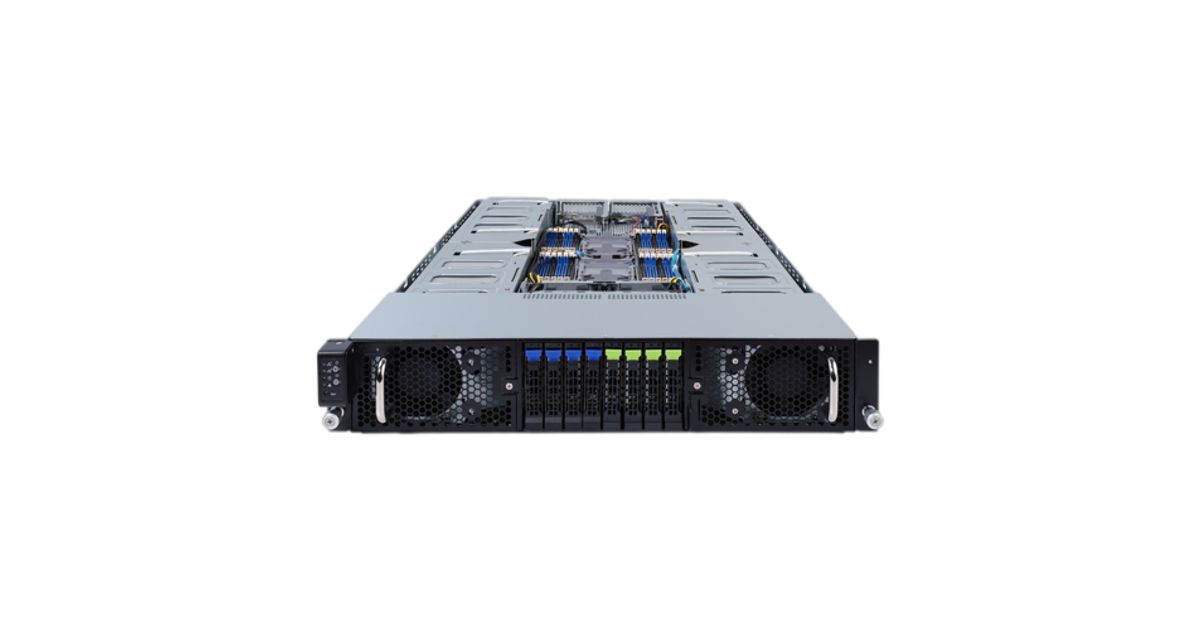

Gigabyte G292-280 Intel® C621 LGA 4189 Rack (2U)
Gigabyte G292-280, Intel® C621, LGA 4189, Intel, Intel® Xeon®, DDR4-SDRAM, 8GB, 16GB, 32GB, 64GB, 128GB
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Gigabyte |
| Product code | 576272310 |
| EAN | 04719331601034 |
| Manufacturer part number | 6NG292280MR-00 |
| Category | Servers |
| Features | |
|---|---|
| Built-in processor | N |
| Motherboard chipset | Intel® C621 |
| Memory voltage | 1.2 V |
| Number of storage drives supported | 8 |
| Trusted Platform Module (TPM) | Y |
| Trusted Platform Module (TPM) version | 2.0 |
| Harmonized System (HS) code | 84714100 |
| Processor | |
|---|---|
| Processor socket | LGA 4189 |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| PCI Express slots version | 4.0 |
| Other features | |
|---|---|
| Number of processors supported | 2 |
| Number of DIMM slots | 24 |
| Supported DIMM module capacities | 8GB, 16GB, 32GB, 64GB, 128GB |
| Supported RDIMM clock speeds | 2666,2933,3200 MHz |
| Backplanes support | Y |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Supported UDIMM clock speeds | 2666,3200 MHz |
| Memory channels | Octa-channel |
| Storage | |
|---|---|
| Hot-swap HDD bays | Y |
| Design | |
|---|---|
| Number of 2.5" bays | 8 |
| Chassis type | Rack (2U) |
| LED indicators | HDD, LAN, Power, System |
| On/off switch | Y |
| Reset button | Y |
| Number of fans | 8 fan(s) |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| On-board graphics adapter model | Aspeed AST2600 |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel X710-AT2 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 1 |
| Internal I/O | |
|---|---|
| Number of SATA III connectors | 8 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 1.x) slots | 10 |
| Performance | |
|---|---|
| Fan diameter | 8 cm |
| Power | |
|---|---|
| Power supply | 3200 W |
| AC input voltage | 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 437 mm |
| Depth | 730 mm |
| Height | 87.5 mm |
| Packaging content | 1 x G292-280 2 x CPU heatsinks 1 x Rail kit |
Product Description
Where Compute Reigns
3rd Gen Intel® Xeon® Scalable Processors – “Ice Lake”
GIGABYTE servers and Intel Xeon Scalable Processors deliver incredible 1P/2P performance from edge to data center with incredible gains in I/O throughput and workload demands that need high performing CPUs with large, yet optimized, memory configurations.
Enhanced I/0: Support for PCIe 4.0 allows for double the throughput of PCIe 3.0 for fast and large data transfers. Also, 64 lanes per socket with up to 128 lanes in a 2P configuration for fast data transmission from CPU to GPU, accelerator or storage.
CPU Performance Boost: Now up to 40 cores per socket with greatly improved IPC on Intel’s 10nm architecture while operating CPUs at 105-270W. Also, an additional UPI lane is added for up to 11.2GT/s for a low latency interconnect between CPUs.
Next Gen Memory: Support for DDR4-3200MHz (1DPC or 2DPC) DIMM. 8 channel memory has been added with up to 16 DIMMs per socket delivering up to 4TB of system memory via usage of 256GB DDR4 DIMM. Additionally, 2/4/6/8-way interleaves for optimal configuration.
Arrival of Intel Optane PMem 200 Series: Optimized for improvements in latency while increasing system memory up to 6TB per socket as a mix of PMem and DDR. The 200 Series also has support for memory mode to expand capacity and app direct mode to act as fast flash storage.
Next Level Security: New instructions and architecture deliver a high level of cryptographic operations for data privacy and protection. Cryptographic accelerators speed up encryption protocols as well as improvements in software guard extensions and memory encryption are added.
AI Acceleration: AI inference and training are enhanced with DL Boost Technology for greater business, operational, and security insights. Applications include HPC, AI, and Media & Graphics.
Server Management
GIGABYTE offers free-of-charge server management applications via small processor (BMC) built on the server.
- Server health monitoring
- Remote troubleshooting
- Resource utilization monitoring
- Reduction in server downtimes
GIGABYTE Management Console
- Single server management
- Feature-rich and easy to use browser-based interface
- Integration of 3rd party applications
- Automatic recording function
- SAS / RAID controller monitoring function
GIGABYTE Server Management (GSM)
Multiple server management platform
Compatible w/ IPMI or Redfish
Certified Ready with Software Partners
Being a member of key software alliance partner programs enables GIGABYTE to together rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization. GIGABYTE servers have a compatibility across various ecosystems.
Support Various Computing Accelerators
GIGABYTE servers have been tested and validated across a range of workloads with various computing accelerators designed to deliver high levels of performance for deep learning, high performance computing (HPC), enabling data scientists, researchers, and engineers to tackle challenges that were once impossible.
