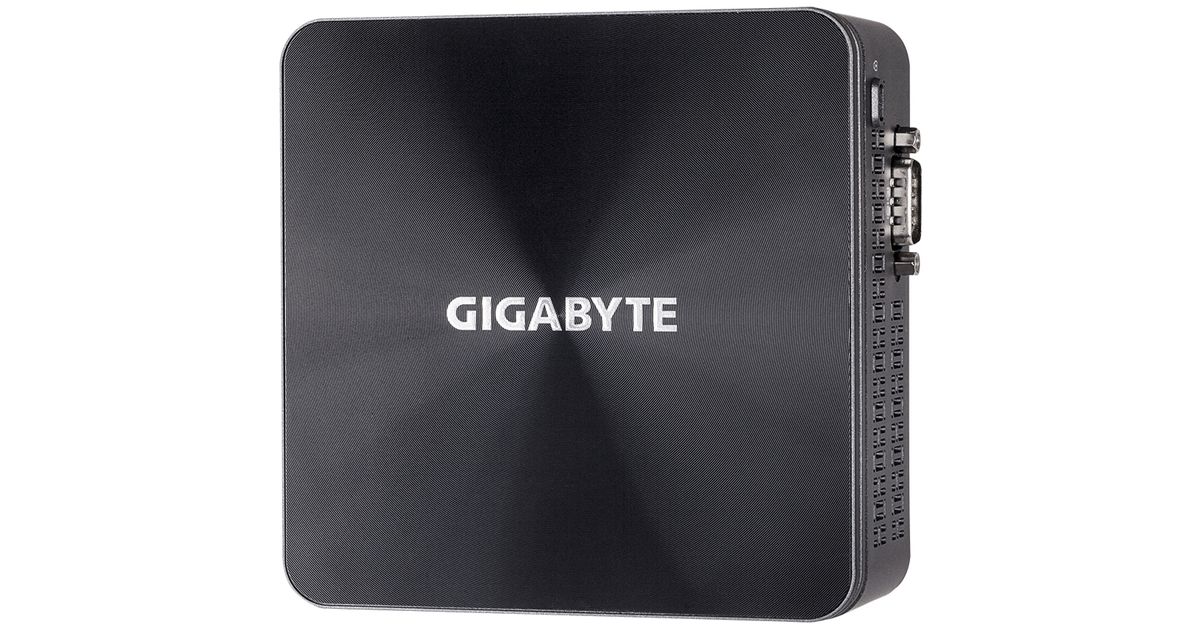

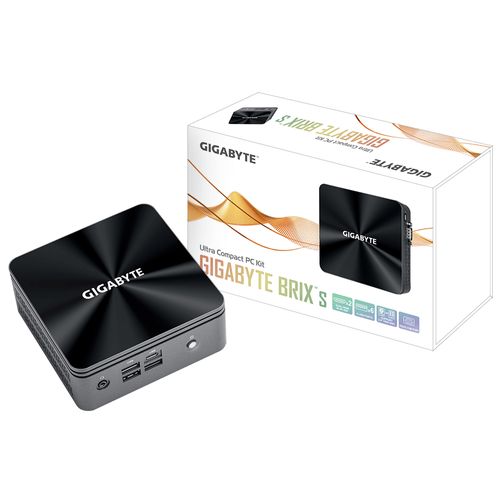

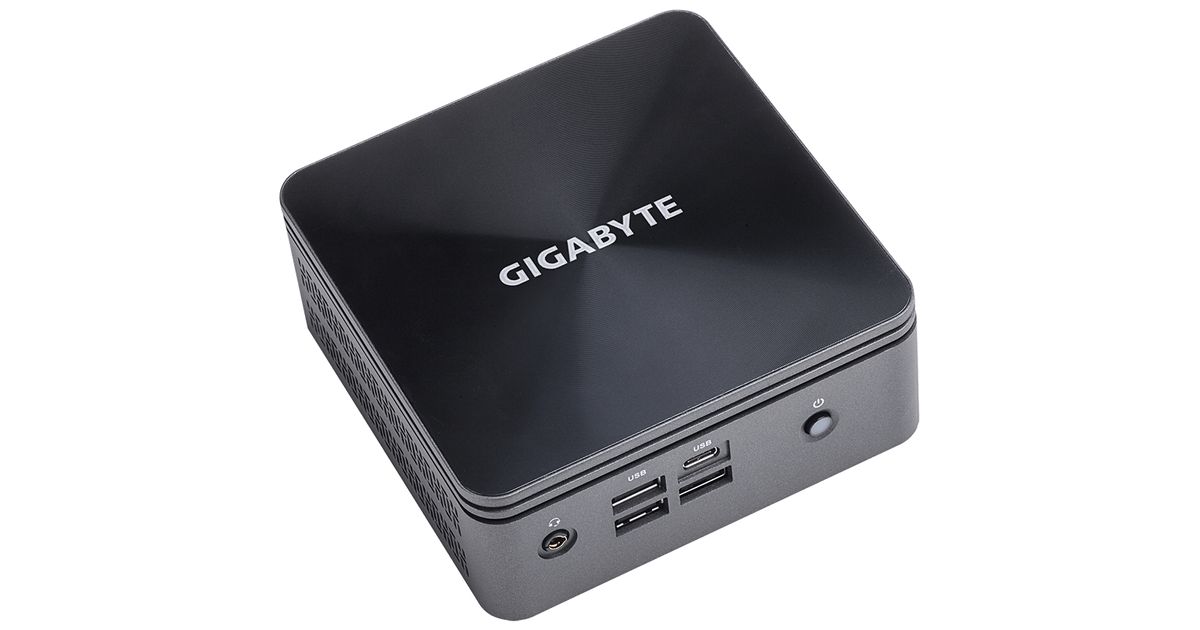

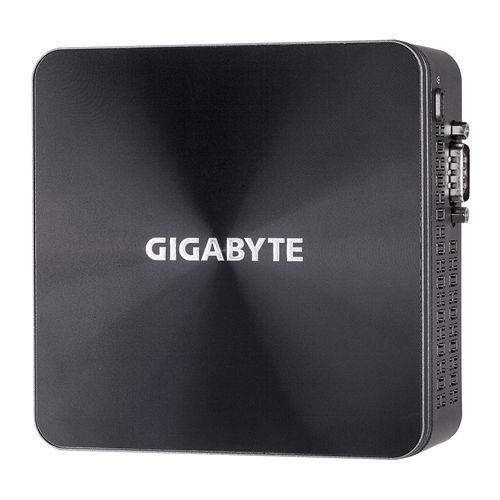

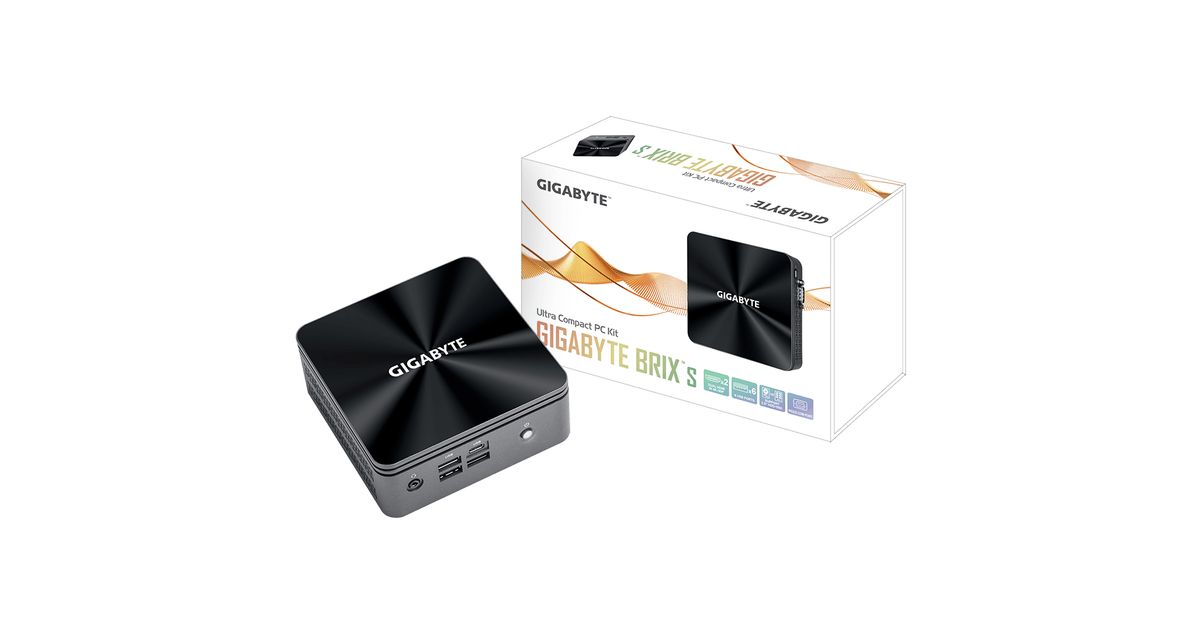

Gigabyte GB-BRi5H-10210(E) UCFF Black i5-10210U 1.6 GHz
Gigabyte GB-BRi5H-10210(E), UCFF, Mini PC barebone, DDR4-SDRAM, M.2, PCI Express, Serial ATA III, Ethernet LAN, Wi-Fi 5 (802.11ac)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Gigabyte |
| Product code | 185718740 |
| EAN | 04719331600228 |
| Manufacturer part number | BRI5H-10210E |
| Category | Barebone PC-s |
| Features | |
|---|---|
| Built-in processor | Y |
| Storage drive sizes supported | 2.5,M.2 |
| SSD form factor | 2.5" |
| VESA mounting | Y |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Audio chip | Realtek ALC255 |
| Harmonized System (HS) code | 84713000 |
| Power supply type | External AC adapter |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor model | i5-10210U |
| Processor frequency | 1.6 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor lithography | 14 nm |
| Processor boost frequency | 4.2 GHz |
| Processor cache | 6 MB |
| Thermal Design Power (TDP) | 15 W |
| Processor special features | |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | N |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Intel 64 | Y |
| Idle States | Y |
| Enhanced Intel SpeedStep Technology | Y |
| Intel Flex Memory Access | Y |
| Intel Trusted Execution Technology | N |
| Execute Disable Bit | Y |
| Intel TSX-NI | N |
| Intel Stable Image Platform Program (SIPP) | N |
| Intel Clear Video Technology | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Memory | |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2666 MHz |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Hard drive | |
|---|---|
| Storage drive interface | M.2, PCI Express, Serial ATA III |
| Graphics | |
|---|---|
| On-board graphics adapter | Y |
| Graphics adapter family | Intel |
| On-board graphics adapter model | Intel® UHD Graphics 620 |
| Maximum resolution | 3840 x 2160 pixels |
| Display | |
|---|---|
| Touchscreen | N |
| Audio | |
|---|---|
| Built-in speaker(s) | N |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| WLAN controller model | Intel Dual Band Wireless-AC 3168 |
| LAN controller | Intel® I219-V |
| Bluetooth | Y |
| Bluetooth version | 4.2 |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.0 |
| Combo headphone/mic port | Y |
| DC-in jack | Y |
| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| COM ports quantity | 1 |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Design | |
|---|---|
| Chassis type | UCFF |
| Product colour | Black |
| Product type | Mini PC barebone |
| On/off switch | Y |
| Cable lock slot type | Kensington |
| Performance | |
|---|---|
| Cable lock slot | Y |
| Other features | |
|---|---|
| Number of processors supported | 1 |
| Quick start guide | Y |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10 |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
|---|---|
| Width | 119.5 mm |
| Depth | 119.5 mm |
| Height | 46.8 mm |
| Packaging content | |
|---|---|
| Power cord included | Y |
| AC adapter included | Y |
Product Description
The Perfect Fit for Any Space
Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with pure black stylish chassis design. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience. With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit.
The Perfect Compact Home PC
- Living room
- Bedroom
- Kitchen
- Study
Vertical Markets
- School
- University computer labs
- Libraries
- Hospital / Medical equipment
- Governmental
An Ultimate Graphics Powerhouse
- Play the latest 3D game
- Multimedia production
- Video editing
- 3D design
Powerful Commercial Applications
- Factory testing machine
- Bank ATM system
- Gaming equipment
- Vending machine
- Security system
At the Office
- Meeting room device
- Workstation
- Studio
- Freelance office space
Simpler and Smarter Digital Life
- Shopping mall signboard
- Scoreboard system
- Split-flap display
- Indoor / Outdoor LED Display
New 10th Gen Intel® CoreTM U-series Processors
The new U-series SKU extends these benefits by delivering increased productivity and performance scaling for demanding compute intensive projects. With 4 core U-series, 10th Gen has already delivered intelligent performance, stunning entertainment, and the best connectivity.
Connecting the Future
USB Type-C™ Connector
The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.2 Gen2 support for 10 Gb/s transfer speed.
Network Connectivity
GIGABYTE BRIX™ also includes a M.2 module offering IEEE 802.11ac Wi-Fi and the latest Bluetooth 4.2, providing connectivity for low power Bluetooth users to easily connect mobile devices.
Support HDMI 2.0a Output
HDMI 2.0
HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly twice that of the previous generation.
Native cinematic 21:9 ratio
This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.

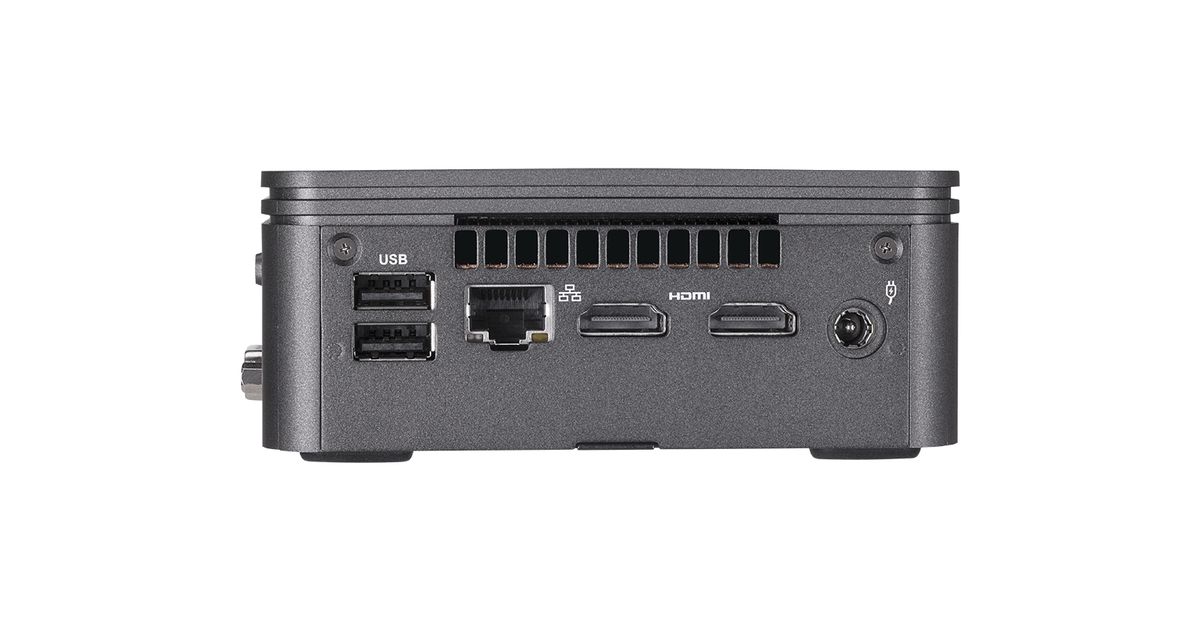

Two HDMI outputs
With two HDMI outputs, GIGABYTE BRIX can power two displays simultaneously, making it a perfect choice as a high productivity device in IoT applications.
Experience Fast Like Never Before
Support DDR4 Memory
GIGABYTE BRIX provides a 128-bit memory controller that supports DDR4 at up to 2400MHz. DDR4 is a type of synchronous dynamic random-access memory with a double data rate and high bandwidth interface. The primary advantages of DDR4 over its predecessor, DDR3, include higher module density and lower voltage requirements, coupled with higher data rate transfer speeds.
Join The Optane Revolution
GIGABYTE Motherboards unlimits the potential of your PC with Intel® Optane™ Memory. Optane memory accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This non-volatile memory transforms the everyday PC to a performance driven system.

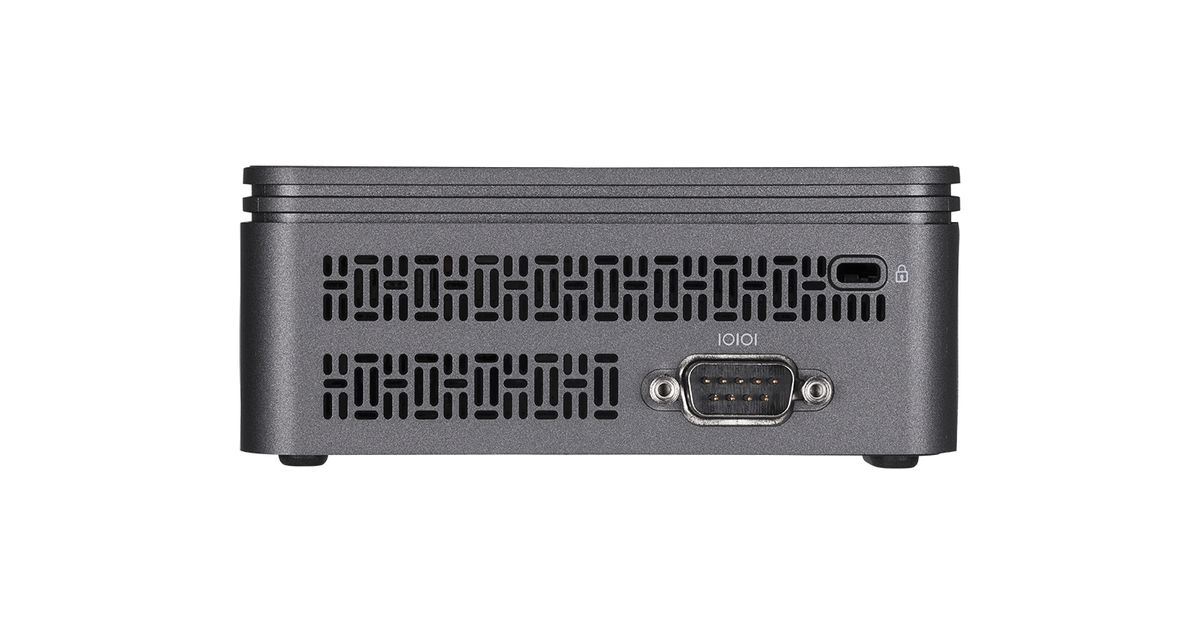

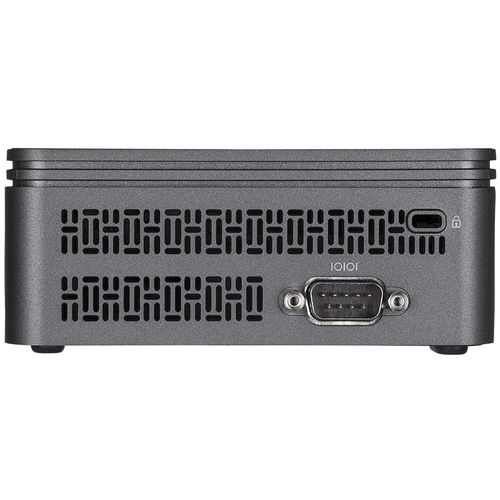

RS232 COM Port Support
GIGABYTE BRIX is equipped with 1 x COM Port to support RS232, it can be easily used in a variety of commercial applications, such as Security system, Vending machine, ATM system, KIOSK, and so on.
Expanding the capability with GC-BRCML-DLC Add-On Card
The new add-on card provides you expansion options by offering two extra RJ45 ports; one is dedicated for Ethernet use, the other functions as RS-232 signals receiver. It hugely increases the flexibility and functionality to adapt to various applications. Combined with different I/O shields, this compact BRIX system offers unlimited possibilities!
Enjoy Always Available Responsiveness With Intel® Ready Mode Technology
Now there’s no waiting to resume activity on your PC. With Intel® Ready Mode Technology, your PC resumes to fully functional in an instant. It works by providing an alternative to traditional sleep-a quiet, low power state similar to the kind used by your cell phone and tablet...
VESA Support
Bundled with a VESA bracket, the GIGABYTE BRIX™ can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
