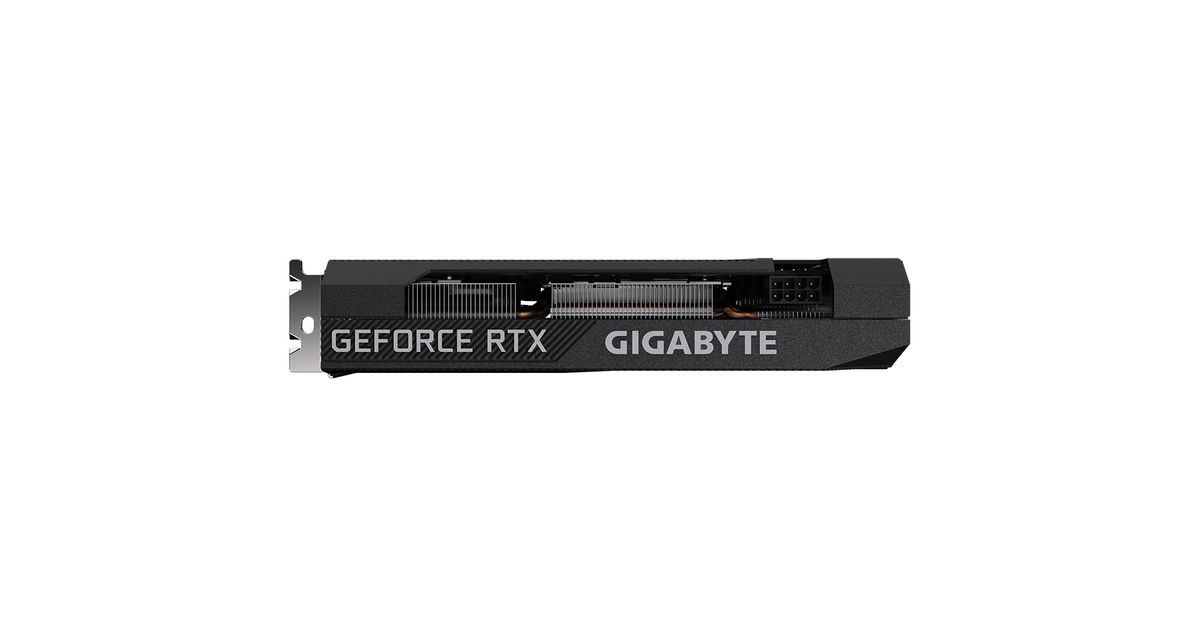

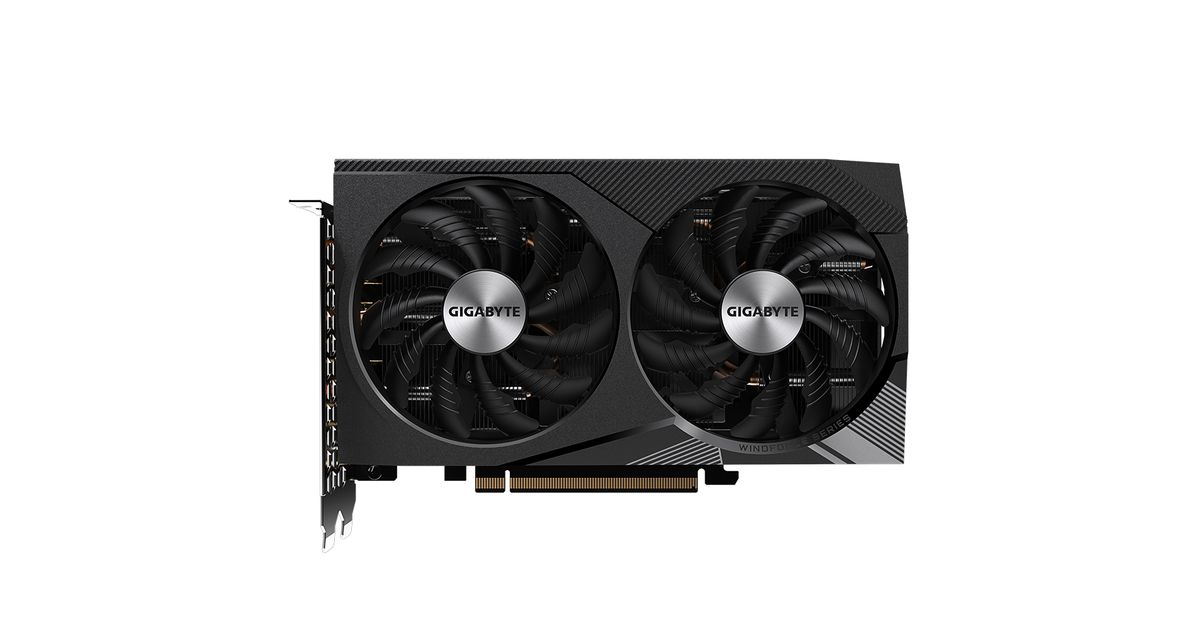

For illustrative purpose only
Gigabyte GeForce RTX 3060 OC NVIDIA 8 GB GDDR6
Gigabyte GeForce RTX 3060 OC, GeForce RTX 3060, 8 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express 4.0
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Gigabyte |
| Product code | 259355764 |
| EAN | 04719331311957 |
| Manufacturer part number | GV-N3060GAMING OC-8GD |
| Category | Graafikakaardid |
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3060 |
| CUDA | Y |
| Processor frequency | 1807 MHz |
| CUDA cores | 3584 |
| Processor frequency (OC mode) | 1777 MHz |
| Maximum displays per videocard | 4 |
| Graphics | |
|---|---|
| Maximum resolution | 7680 x 4320 pixels |
| Discrete graphics adapter memory | 8 GB |
| Memory | |
|---|---|
| Graphics adapter memory type | GDDR6 |
| Memory bus | 128 bit |
| Memory clock speed | 15000 MHz |
| Memory bandwidth (max) | 240 GB/s |
| Ports & interfaces | |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1 |
| Features | |
|---|---|
| DisplayPort version | 1.4a |
| Dual Link DVI | N |
| Supplementary power connectors | 1x 8-pin |
| Performance | |
|---|---|
| TV tuner integrated | N |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Fan diameter | 9 cm |
| Design | |
|---|---|
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 2X |
| Number of fans | 2 fan(s) |
| Number of slots | 2 |
| Power | |
|---|---|
| Minimum system power supply | 550 W |
| Packaging data | |
|---|---|
| Quick installation guide | Y |
| Weight & dimensions | |
|---|---|
| Depth | 198 mm |
| Height | 39 mm |
| Width | 121 mm |
Product Description
WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
BUILT STRONG
TINY SIZE WITH MIGHTY PERFORMANCE.
For gamers who prefer a small build with powerful performance, GIGABYTE delivers a compact graphics card with less than 200mm in length. The card provides mighty performance and is easy to install in any small chassis as well.
EXTREME DURABILITY & OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
The WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
BUILT STRONG
TINY SIZE WITH MIGHTY PERFORMANCE.
For gamers who prefer a small build with powerful performance, GIGABYTE delivers a compact graphics card with less than 200mm in length. The card provides mighty performance and is easy to install in any small chassis as well.
EXTREME DURABILITY & OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
