For illustrative purpose only

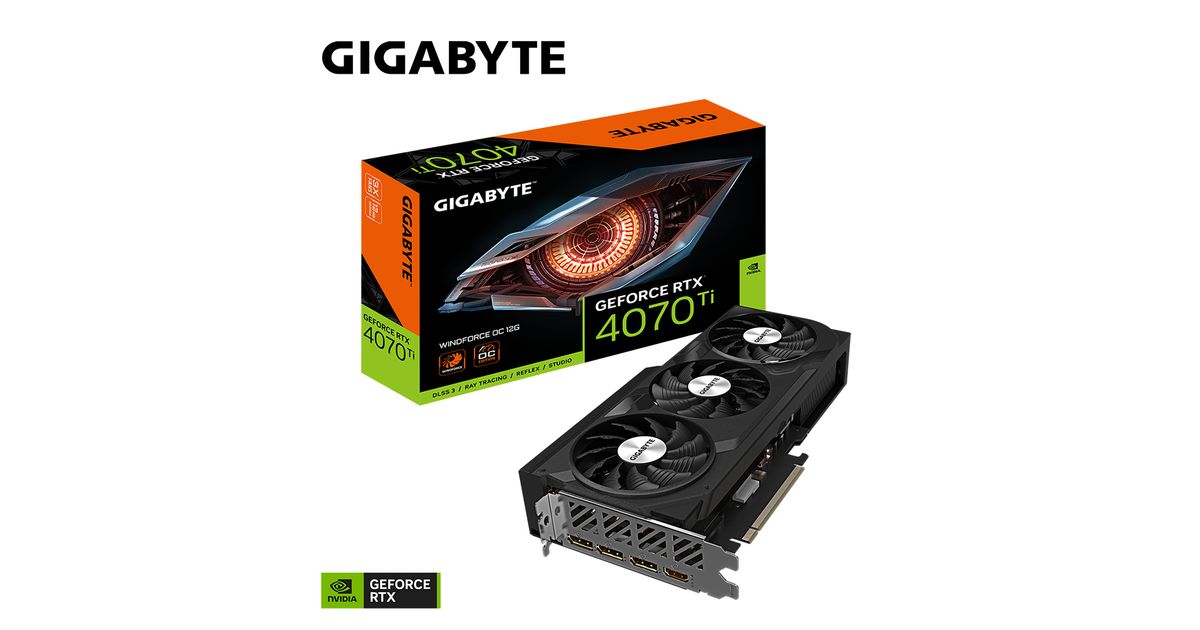

Gigabyte GeForce RTX 4070 Ti WINDFORCE OC 12G NVIDIA 12 GB GDDR6X
Gigabyte GeForce RTX 4070 Ti WINDFORCE OC 12G, GeForce RTX 4070 Ti, 12 GB, GDDR6X, 192 bit, 7680 x 4320 pixels, PCI Express 4.0
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Gigabyte |
| Product code | 229213084 |
| EAN | 04719331312985 |
| Manufacturer part number | GV-N407TWF3OC-12GD |
| Category | Graphics cards |
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4070 Ti |
| CUDA | Y |
| Processor frequency | 2610 MHz |
| CUDA cores | 7680 |
| Maximum displays per videocard | 4 |
| Graphics | |
|---|---|
| Maximum resolution | 7680 x 4320 pixels |
| Discrete graphics adapter memory | 12 GB |
| Memory | |
|---|---|
| Graphics adapter memory type | GDDR6X |
| Memory bus | 192 bit |
| Memory bandwidth (max) | 21 GB/s |
| Ports & interfaces | |
|---|---|
| Interface type | PCI Express 4.0 |

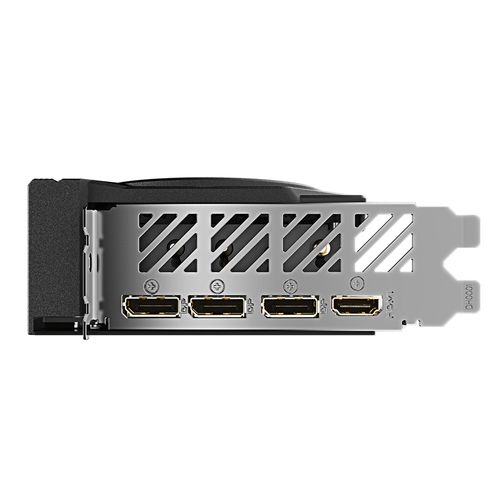

| HDMI ports quantity | 1 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1a |
| Features | |
|---|---|
| DisplayPort version | 1.4a |
| Dual Link DVI | N |
| Supplementary power connectors | 1x 16-pin |
| Performance | |
|---|---|
| TV tuner integrated | N |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Design | |
|---|---|
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Illumination | Y |
| Product colour | Black |
| Power | |
|---|---|
| Minimum system power supply | 750 W |
| Weight & dimensions | |
|---|---|
| Depth | 261 mm |
| Height | 50 mm |
| Width | 126 mm |
| Other features | |
|---|---|
| User guide | Y |
| Packaging data | |
|---|---|
| Package type | Box |
Product Description
WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
