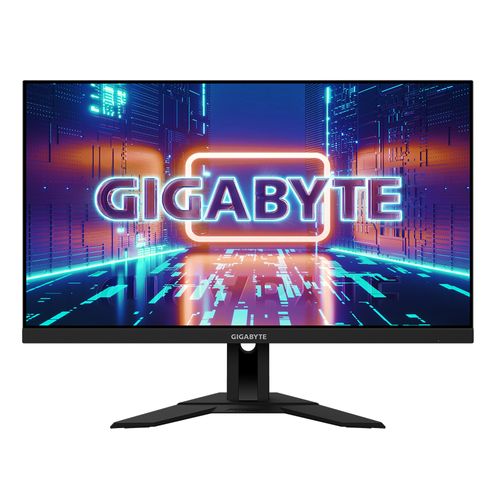

Gigabyte M28U 71.1 cm (28") 3840 x 2160 pixels 4K Ultra HD LED Black
Gigabyte M28U, 71.1 cm (28"), 3840 x 2160 pixels, 4K Ultra HD, LED, 1 ms, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Gigabyte |
| Product code | 125873128 |
| EAN | 04719331811259 |
| Manufacturer part number | M28U |
| Category | Monitors |
| Display | |
|---|---|
| Display diagonal | 71.1 cm (28") |
| Display resolution | 3840 x 2160 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | N |
| HD type | 4K Ultra HD |
| Panel type | SS-IPS |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 144 Hz |
| Display number of colours | 16.7 million colours |
| Display brightness (typical) | 300 cd/m² |
| Response time | 1 ms |
| Anti-glare screen | Y |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.16 x 0.16 mm |
| Viewable size, vertical | 63.2 cm |
| Viewable size diagonal | 36 cm |
| High Dynamic Range (HDR) supported | Y |
| RGB colour space | DCI-P3 |
| Colour gamut | 94% |
| sRGB coverage (typical) | 120% |
| Design | |
|---|---|
| Backlight type | Edge LED |
| Market positioning | Gaming |
| Product colour | Black |
| Feet colour | Black |
| Cable lock slot type | Kensington |
| Features | |
|---|---|
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 480, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160 |
| High Dynamic Range (HDR) technology | High Dynamic Range (HDR) 400 |
| Colour depth | 8 bit |
| HBR3 support | Y |
| DisplayPort version | 1.4 |
| VESA mounting | Y |
| Panel mounting interface | 100 x 100 mm |
| Height adjustment | 13 cm |
| Harmonized System (HS) code | 85285210 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | N |
| AMD FreeSync | Y |
| AMD FreeSync type | FreeSync Premium Pro |
| Flicker-free technology | Y |
| Cable lock slot | Y |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Number of speakers | 2 |
| Camera | |
|---|---|
| Built-in camera | N |
| Multimedia | |
|---|---|
| RMS rated power | 6 W |

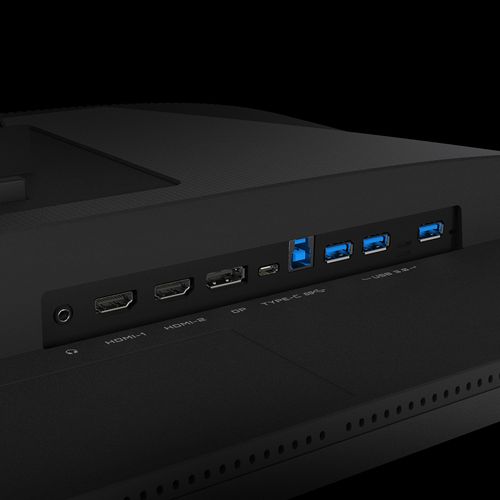

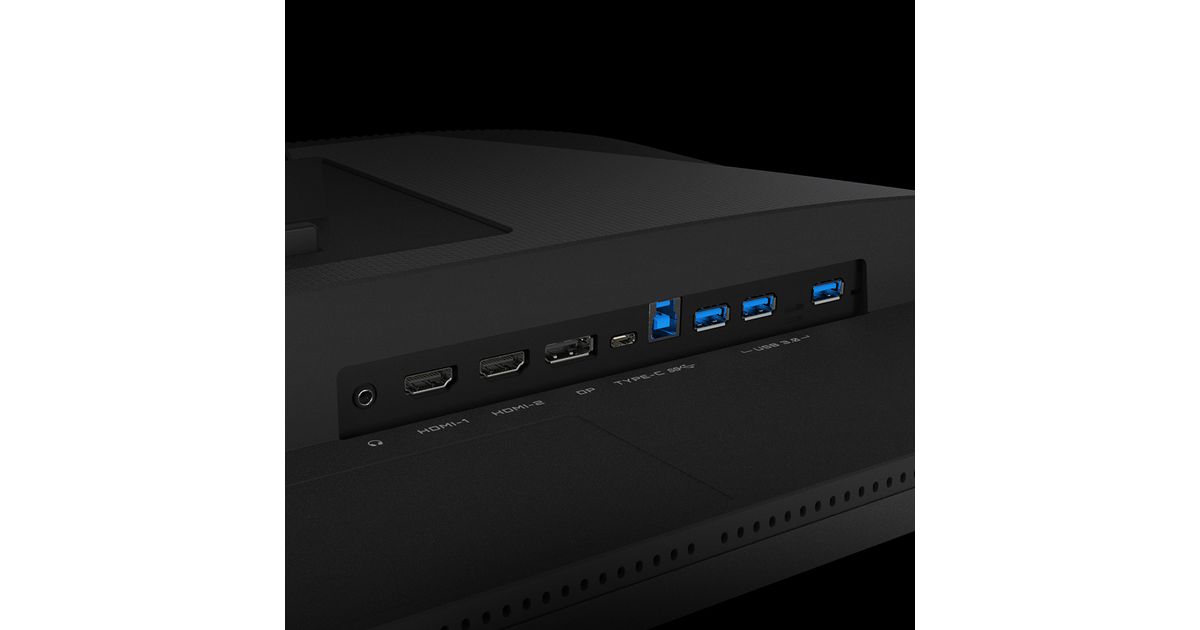

| Ports & interfaces | |
|---|---|
| Built-in USB hub | Y |
| HDMI | Y |
| Headphone out | Y |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| Number of USB Type-C upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 3 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| AC (power) in | Y |
| Ergonomics | |
|---|---|
| Height adjustment | Y |
| Tiltable | Y |
| Tilt angle range | -5 - 20° |
| Power | |
|---|---|
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 115 W |
| Power consumption (off) | 0.3 W |
| Power consumption (PowerSave) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |
|---|---|
| Stand included | Y |
| Cables included | AC, DisplayPort, HDMI, USB |
| Other features | |
|---|---|
| Quick start guide | Y |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 636.5 mm |
| Depth (with stand) | 193.6 mm |
| Height (with stand) | 534.2 mm |
| Weight (with stand) | 6.93 kg |
| Width (without stand) | 63.6 cm |
| Depth (without stand) | 6.31 cm |
| Height (without stand) | 37.2 cm |
| Weight (without stand) | 5.18 kg |
| Package weight | 9.7 kg |
| Packaging data | |
|---|---|
| Package width | 890 mm |
| Package depth | 148 mm |
| Package height | 510 mm |
| Package type | Box |
Product Description
World’s First KVM Gaming Monitor
It's time
The last mile for your gaming system
As an unseen player, monitor is often being underestimated. The truth is monitors form as a synergistic effect and bring out the best performance of PC components. GIGABYTE gaming monitors offer the ultimate specifications and quality, users can truly enjoy upscale performance without the need for extravagance.
Support Adaptive-Sync Technology
One For All
KVM feature allows you to control multiple devices via one set of keyboard, video and mouse. With our exclusive KVM button, you’ll find switching devices cannot be any easier! Quick like a snap!
Performance
1ms GTG Response Time
The SuperSpeed IPS technology reduces the response time to 1ms; meanwhile offering the IPS-grade splendid color!
Performance
UHD with 144Hz
High resolution and fast refresh rate, giving you the detailed display quality and fluid gaming experience!
8-bit color, 94% DCI-P3
Fantastic color display and 94% DCI-P3 super wide-gamut color.
HIGH BIT RATE 3
The support of DisplayPort High Bit Rate 3 (HBR3) provides the bandwidth to offer monitor’s fastest refresh rate, full color depth and HDR effect at the same time!
Characteristic
Simple but stylish
The streamline appearance represents the simplicity of the GIGABYTE gaming series design philosophy, sturdy stand and matte finish built for functional and aesthetic features adding more to the characteristics.
Gaming Features
OSD Sidekick
GIGABYTE OSD Sidekick allows you to set the display options with keyboard and mouse, giving you the easiest way to adjust monitor settings.
Timer
Onscreen timer will assist you on tracking the elapsed game time.
Counter
The gaming counter will help you calculate the time more easily.
Alignment
The display alignment function will facilitate you on the multi-display set-up, monitors will line up perfectly.
Aim Stablizer Sync
The latest upgrade allows you to reduce motion blur and enable V-Sync technology at the same time!
PIP / PBP
The PIP and PBP functions allow users to view different video sources which are presented in one screen at the same time, you are able to watch the game guides at the same time using only one monitor!
Dashboard
The dashboard reveals your real-time hardware information including CPU voltages, clock speed, temperatures, etc. The best part is that it won’t be blocked by any games.
Black Equalizer
This feature allows you to have more details of the dark side without overexposing the bright side at the same time.
HIGHER LEVEL OF CUSTOMIZED COLOR ADJUSTMENT
With the help of Six Axis Control, it’s able get to control six colors (red, green, blue, cyan, magenta, and yellow) individually. It allows you to more accurately display the color gamut on the monitor.
Auto-Update
Users can effortlessly enjoy the finest gaming experience with features GIGABYTE continues to develop and upgrade while giving extra protection to your monitor.
Flicker-Free
Preventing eye strain and fatigue.
Clear Sound
Offering the quality sound experience.
EYESAFE®
Certified by TÜV Rheinland and Eyesafe® association to meet the standard for color balance and blue light reduction
