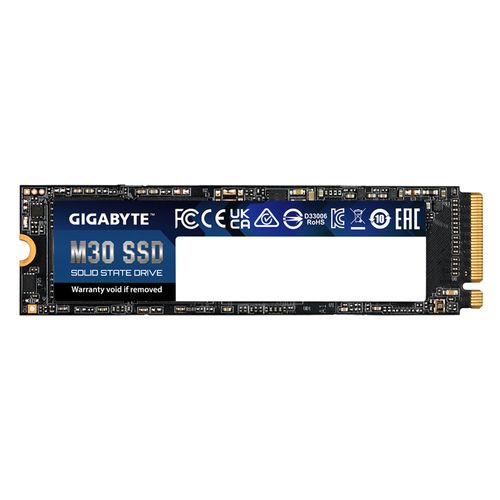

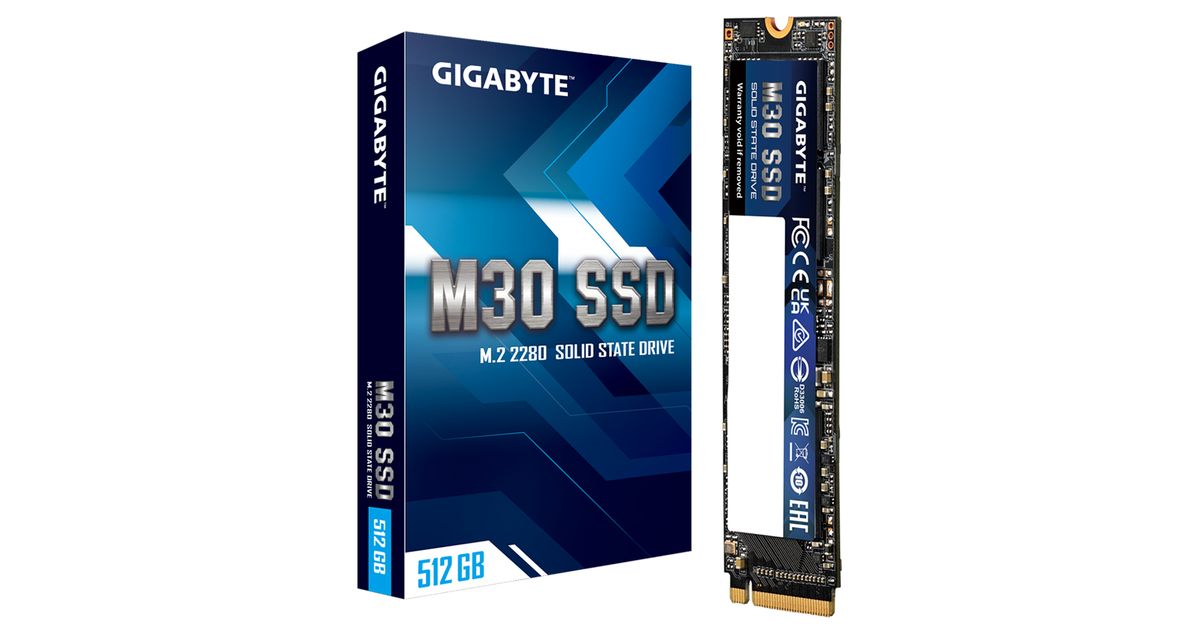

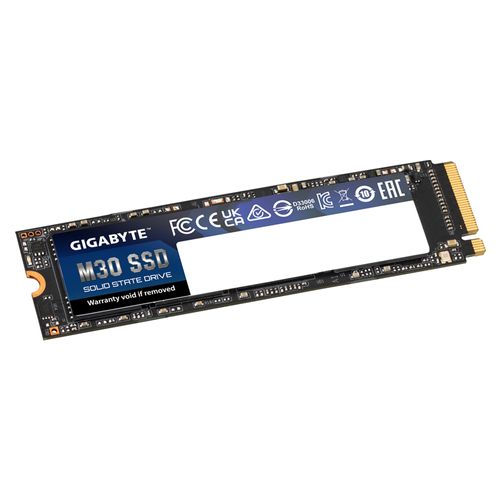

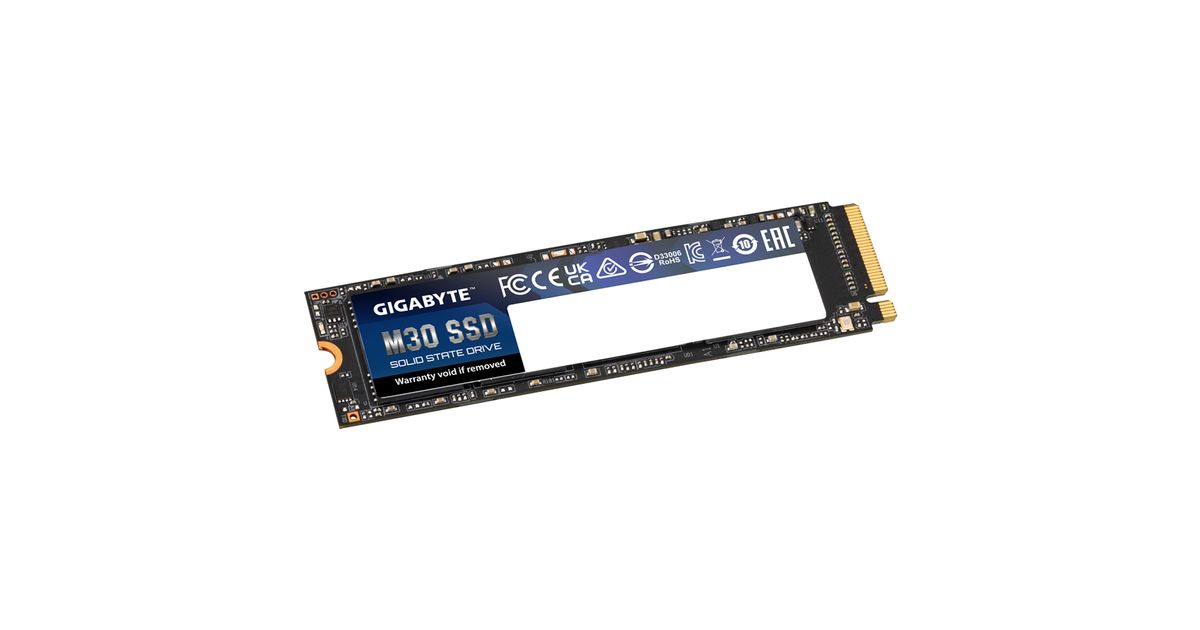

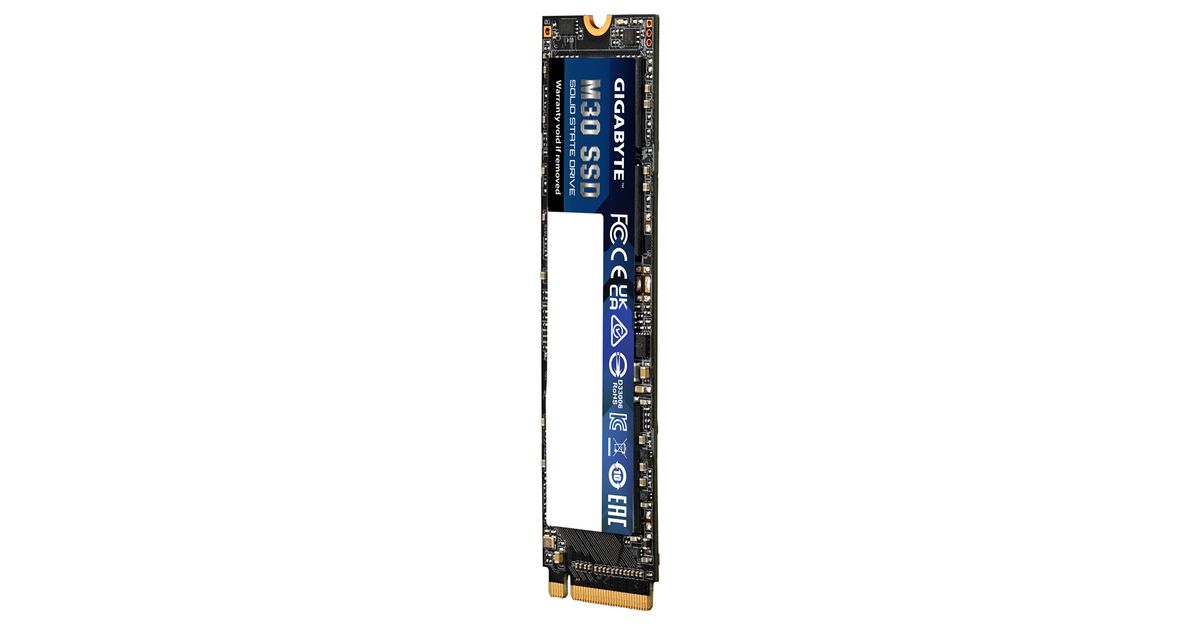

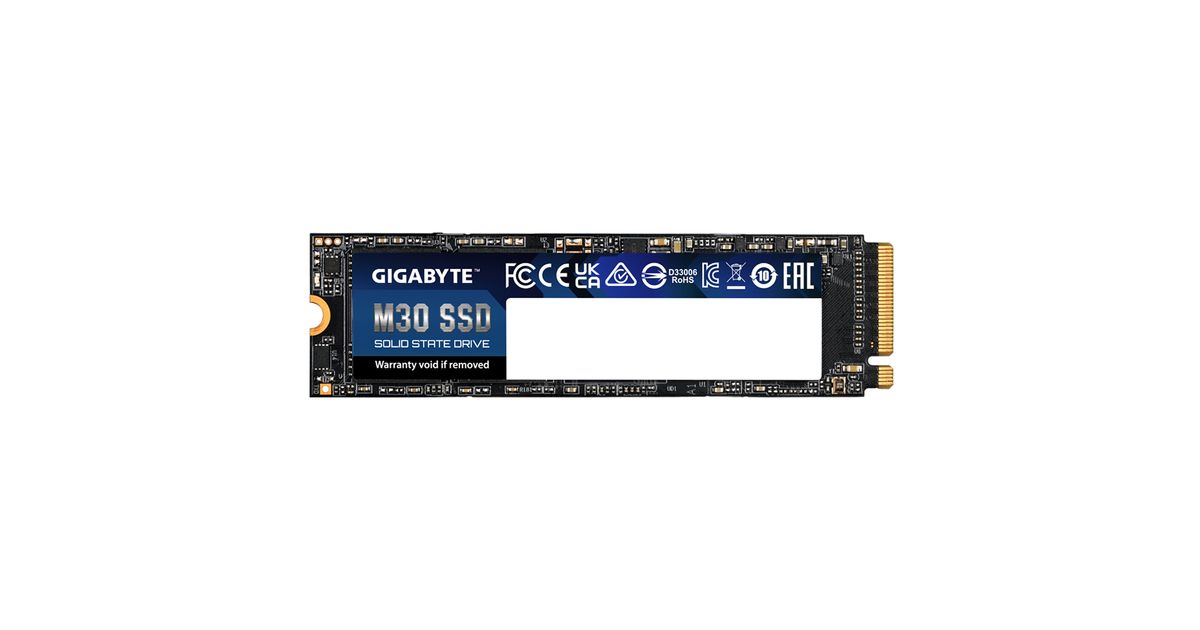

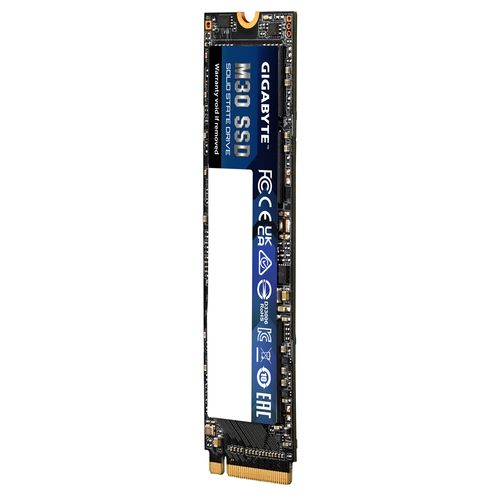

Gigabyte M30 M.2 512 GB PCI Express 3.0 3D TLC NAND NVMe
Gigabyte M30, 512 GB, M.2, 3500 MB/s
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Gigabyte |
| Product code | 174918232 |
| EAN | 04719331822828 |
| Manufacturer part number | GP−GM30512G−G |
| Category | HDD S-ATA 3,5" |
| Features | |
|---|---|
| SSD form factor | M.2 |
| Memory type | 3D TLC NAND |
| NVMe | Y |
| NVMe version | 1.3 |
| Read speed | 3500 MB/s |
| Write speed | 2600 MB/s |
| Random read (4KB) | 350 IOPS |
| Random write (4KB) | 302 IOPS |
| PCI Express interface data lanes | x4 |
| Harmonized System (HS) code | 84717070 |
| Storage | |
|---|---|
| SSD capacity | 512 GB |
| Ports & interfaces | |
|---|---|
| Interface | PCI Express 3.0 |
| Design | |
|---|---|
| Component for | PC/notebook |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 2000000 h |
| Power | |
|---|---|
| Current | 0.9 A |
| Power consumption (read) | 5.9 W |
| Power consumption (write) | 5 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Maximum operating temperature | 70 °C |
| Weight & dimensions | |
|---|---|
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.3 mm |
Product Description
Xtreme Storage Performance
With the high-quality controller and flash, GIGABYTE M30 SSD can reach up to 3500 MB/sec sequential read, and up to 3000 MB/s sequential writes. Moreover, it comes with the DDR3L DRAM, SLC Cache, and advanced LDPC error correction to enhance the performance. It’s an ideal choice for gamers, PC enthusiasts, and content creators.
Breaking Limitations
GIGABYTE M30 SSD delivers outstanding performance: up to 3500 MB/sec sequential read, and up to 3000 MB/s sequential write. Equipped with a robust combination of controller and 3D NAND, M30 is up to 6 times faster than SATA III Solid State Drives and reach the limit of PCIe Gen3x4.
Ultra Durable, 2 oz copper PCB Design
Under a high-stress workload, most SSD controllers can peak over 70°C. In this situation, the drives will start slowing down to avert itself from failing. The hotter your SSD runs, the quicker it wears out the flash inside of the drive. GIGABYTE M30 SSD applied with 2 oz copper PCB design, which helps dissipate heat and prevent throttling.
Why is keeping A SSD at lower tempertures so important?
Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher. With 2 oz coppetr PCB, GIGABYTE M30 SSD can operate at lower working temperatures to improve data storage reliability. Furthermore, SSDs can running at extreme performance longer.
Lower temperature, better performance
GIGABYTE M30 SSD not only offers incredible performance but also handles heavy workloads without overheating. Thanks to the improved efficiency thermal solution by using 2 oz copper PCB, GIGABYTE M30 SSD decrease 16% working temperatures compare with regular SSD without a heatsink.
External DDR3L DRAM Cache
GIGABYTE M30 SSD is equipped with high speed DDR3L DRAM cache and does not need to reserve over-provisioning space, thus improving the random Read/Write performance. This means the users can use the full capacity of the drive. Moreover, external DRAM can be a buffer between controller and NAND flash for sustained performance when capacity is occupied by more and more data.
SSD Tool Box
The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.
