For illustrative purpose only

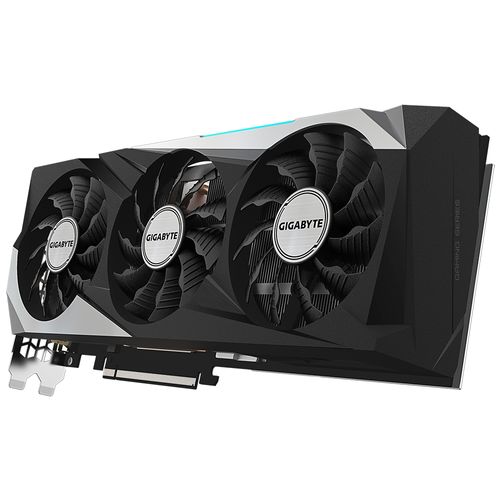

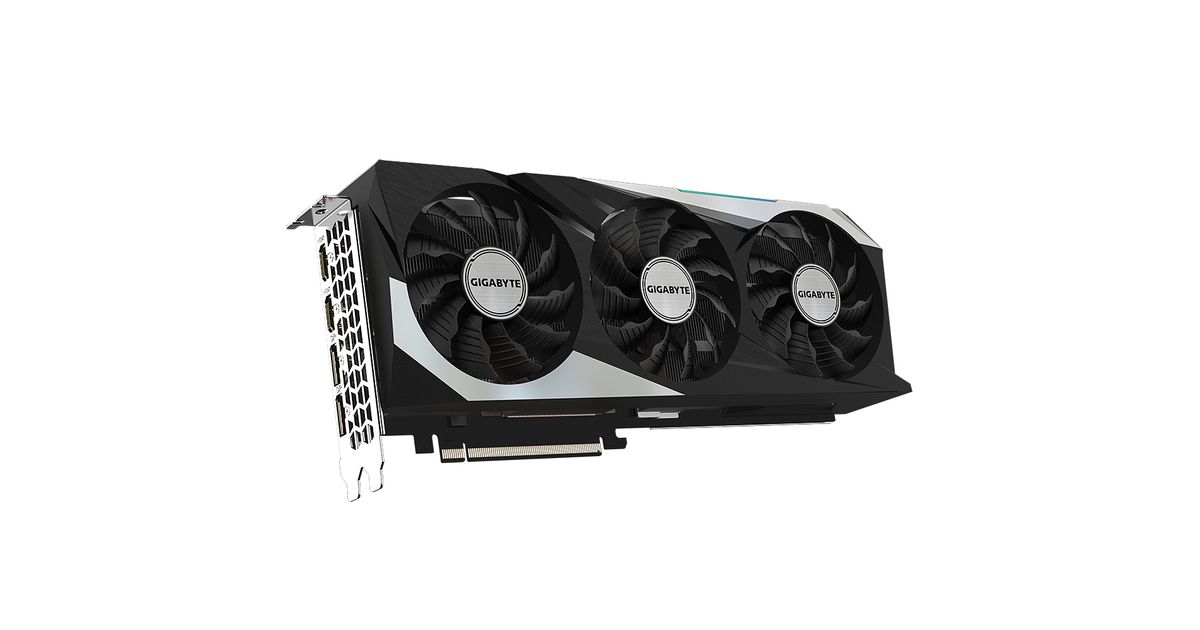

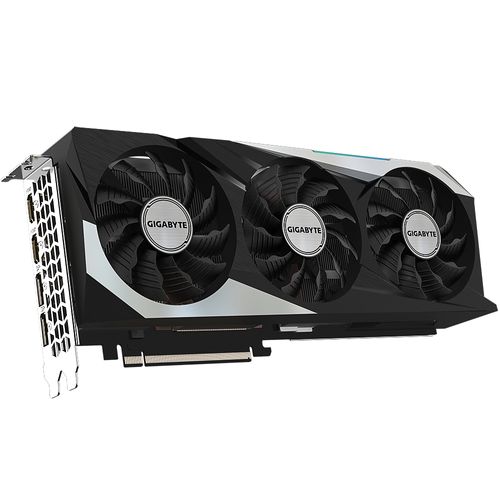

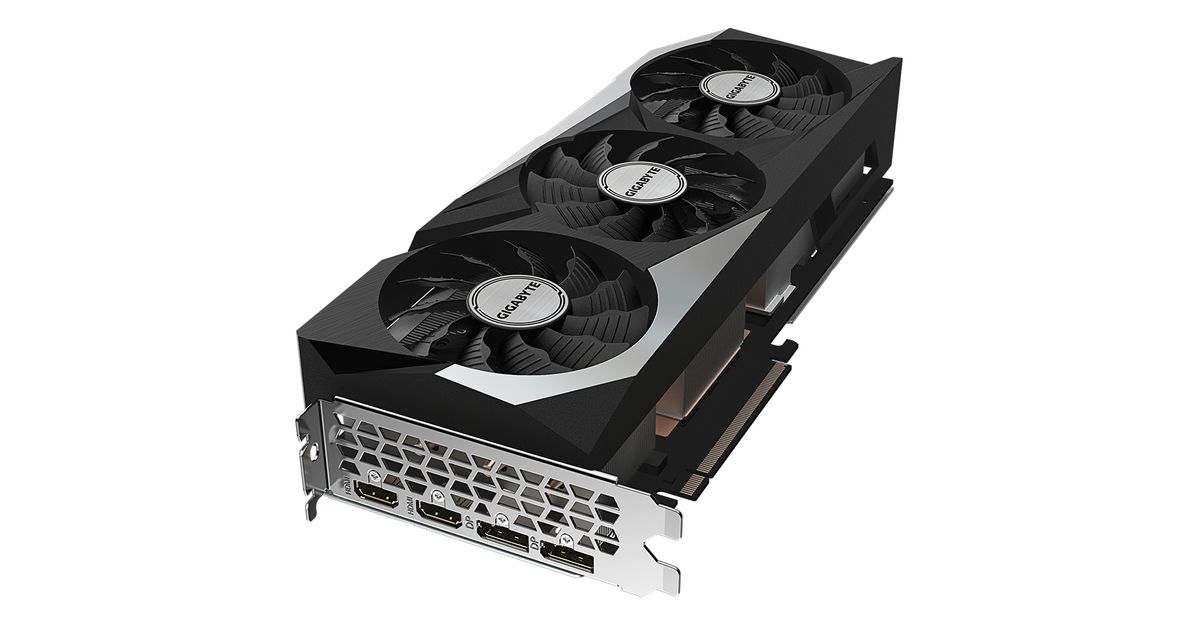

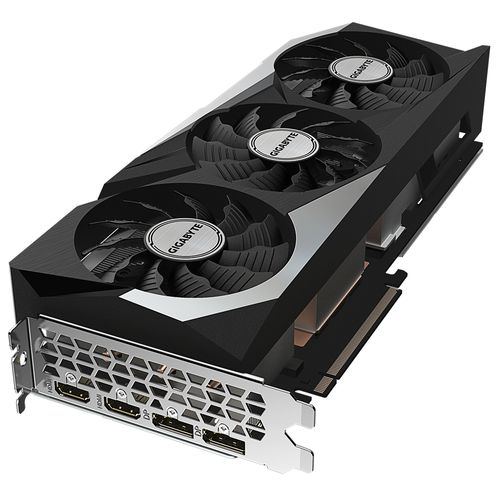

Gigabyte Radeon RX 6900 XT GAMING OC 16G AMD 16 GB GDDR6
Gigabyte Radeon RX 6900 XT GAMING OC 16G, Radeon RX 6900 XT, 16 GB, GDDR6, 256 bit, 7680 x 4320 pixels, PCI Express x16 4.0
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Gigabyte |
| Product code | 254270722 |
| EAN | 04719331308407 |
| Manufacturer part number | KGGBAA609577000 |
| Category | Graphics cards |
| Processor | |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 6900 XT |
| CUDA | N |
| Processor boost clock speed | 2285 MHz |
| Stream processors | 5120 |
| Maximum displays per videocard | 4 |
| Graphics | |
|---|---|
| Maximum resolution | 7680 x 4320 pixels |
| Discrete graphics adapter memory | 16 GB |
| Memory | |
|---|---|
| Graphics adapter memory type | GDDR6 |
| Memory bus | 256 bit |
| Memory clock speed | 16000 MHz |
| Memory bandwidth (max) | 512 GB/s |

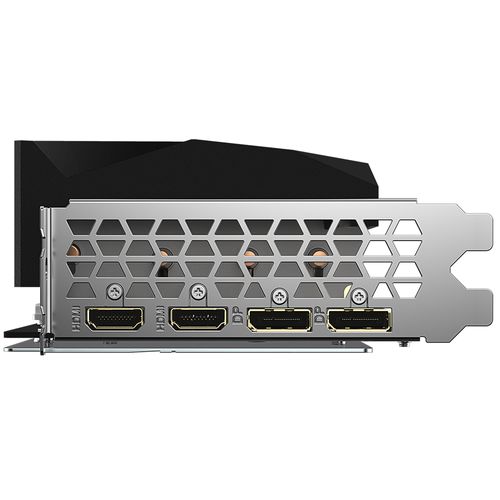

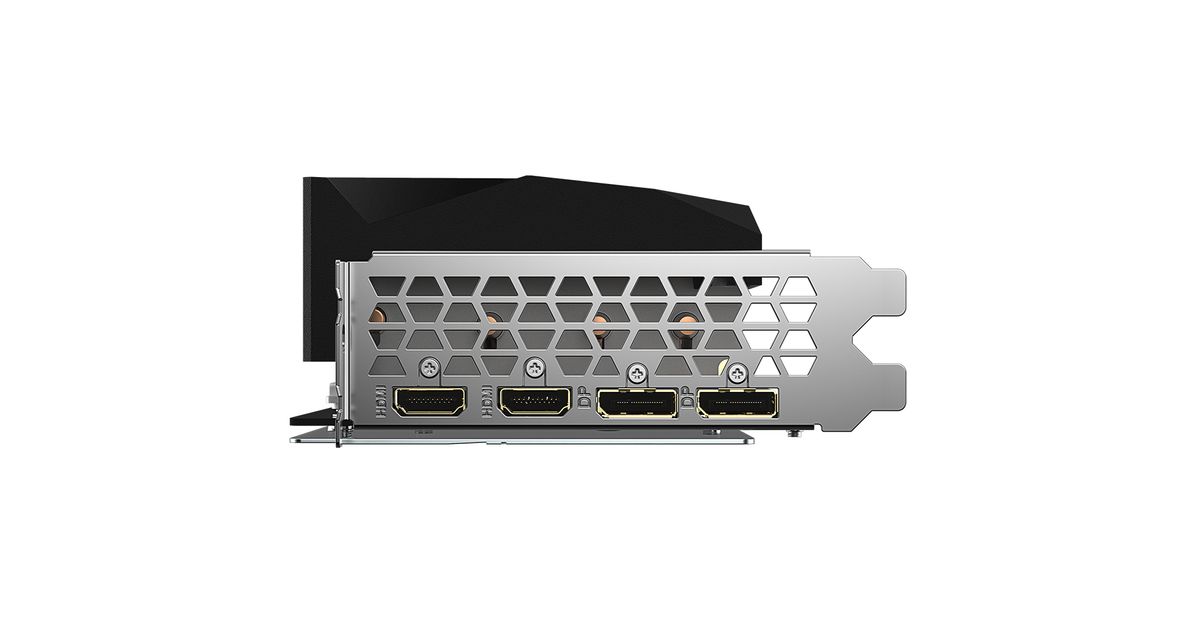

| Ports & interfaces | |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1 |
| Features | |
|---|---|
| DisplayPort version | 1.4a |
| Dual Link DVI | N |
| Supplementary power connectors | 3x 8-pin |
| Harmonized System (HS) code | 84733020 |
| Performance | |
|---|---|
| TV tuner integrated | N |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| PhysX | N |
| Virtual Reality (VR) ready | Y |
| AMD FreeSync | Y |
| Fan diameter | 8 cm |
| Design | |
|---|---|
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Illumination | Y |
| Illumination colour | Multi |
| Product colour | Black, Stainless steel |
| Other features | |
|---|---|
| Bracket height | Full-Height (FH) |
| User guide | Y |
| Power | |
|---|---|
| Minimum system power supply | 850 W |
| Weight & dimensions | |
|---|---|
| Depth | 286 mm |
| Height | 58 mm |
| Width | 118 mm |
| Packaging data | |
|---|---|

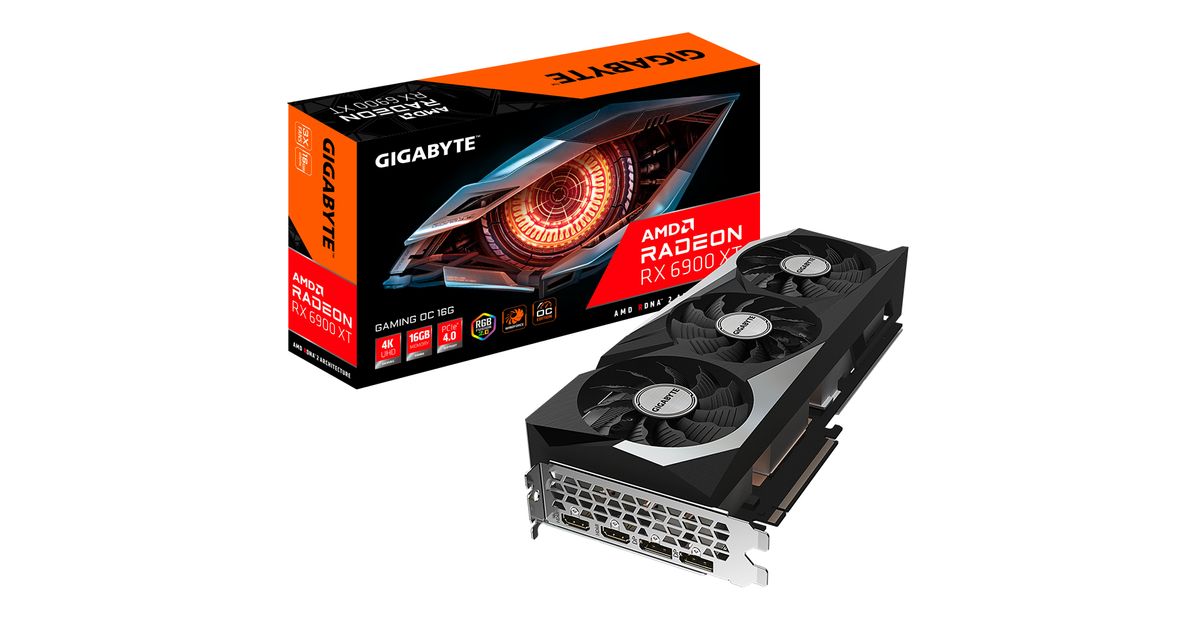

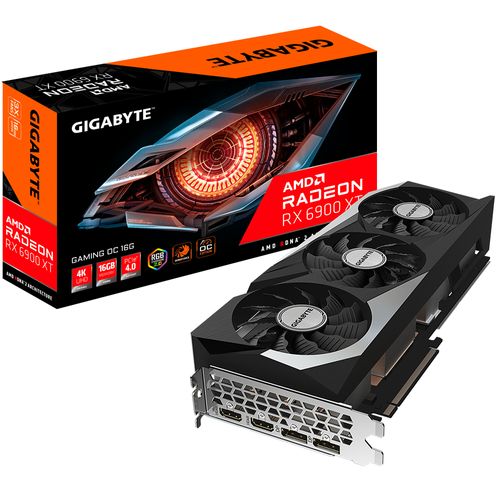

| Package type | Box |
Product Description
POWERHOUSE PERFORMANCE
AMD Radeon™ RX 6000 Series graphics cards deliver ultra-high frame rates and serious 4K gameplay. Get the ultimate gaming experience with powerful new compute units, groundbreaking AMD Infinity Cache, and up to 16GB of dedicated GDDR6 memory. And, when paired with an AMD Ryzen™ 5000 Series desktop processor, AMD Smart Access Memory technology offers new levels of gaming performance.
VIVID VISUALS
AMD Radeon™ RX 6000 Series graphics cards pull you into the action with immersive gaming technologies and support for DirectX® 12 Ultimate. Experience gaming with realistic lighting, shadows, and reflections along with rich detail thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimized for AMD RDNA™ 2 architecture.
ELEVATED EXPERIENCES
Ultimate responsiveness and smooth gaming are up-leveled with low-latency gaming technology from AMD Radeon Anti-Lag and AMD Radeon Boost.Propel your gaming experience with the latest HDMI™ 2.1 VRR technology, USB-C™ enabled VR headsets, or over 1250 AMD FreeSync™ technology-enabled gaming displays.
ONE GAMING DNA FOR PCS AND CONSOLES
AMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi-gaming platforms, like no other graphics architecture before.

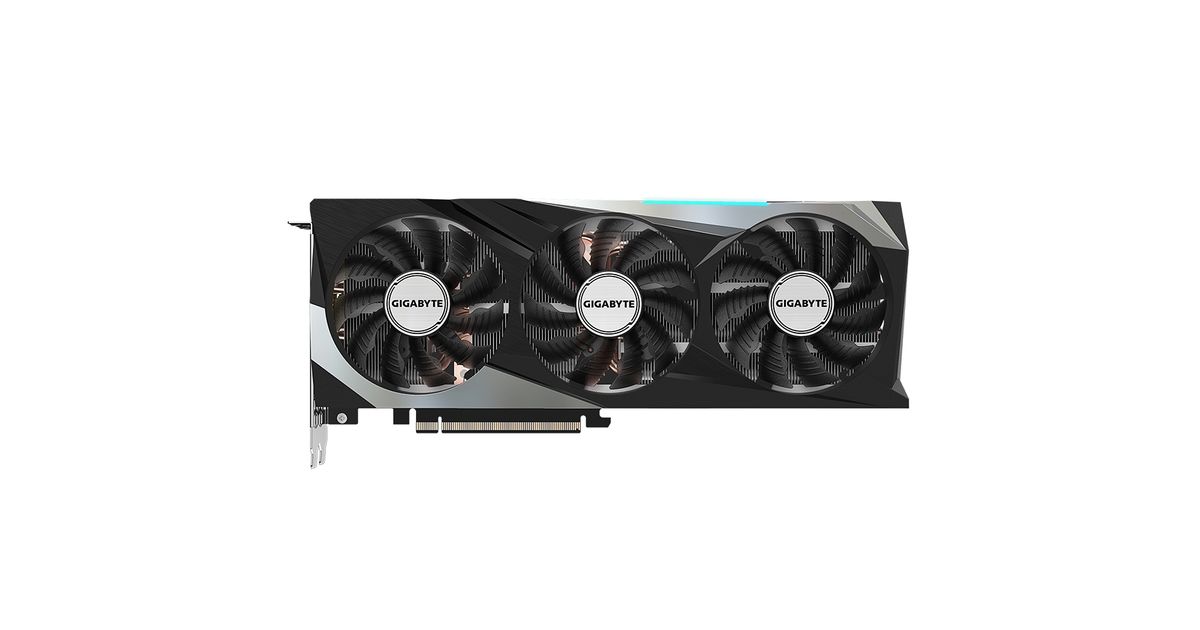

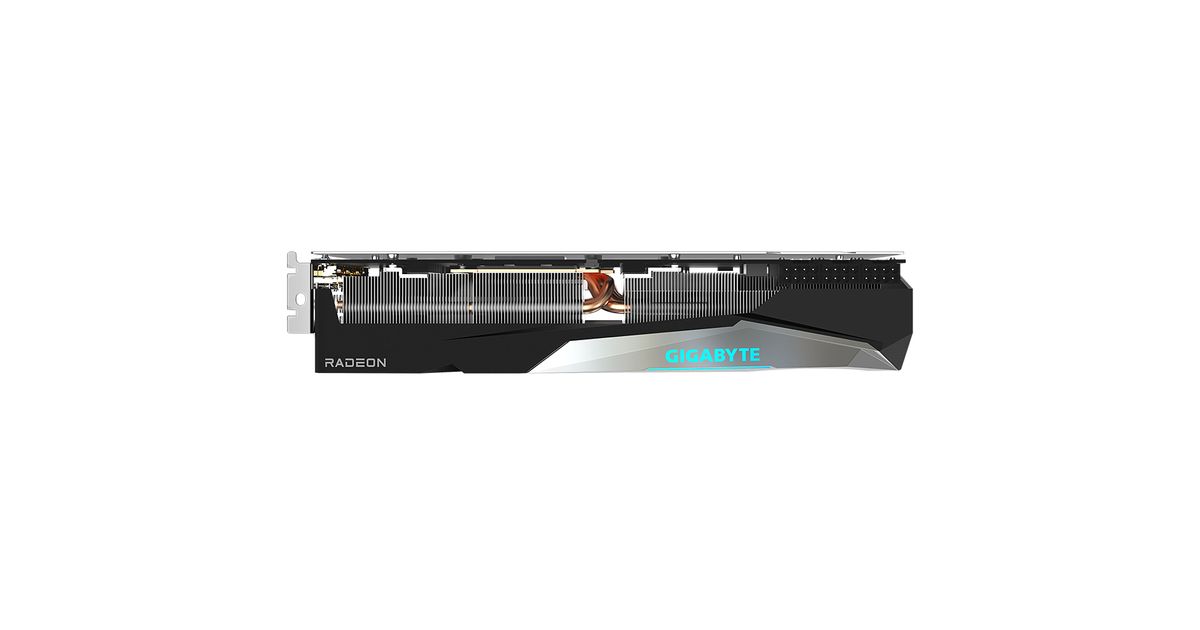

WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 6 composite copper heat pipes, large copper plate direct touch GPU and 3D active fan, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
LARGE COPPER PLATE & HEAT-PIPE
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

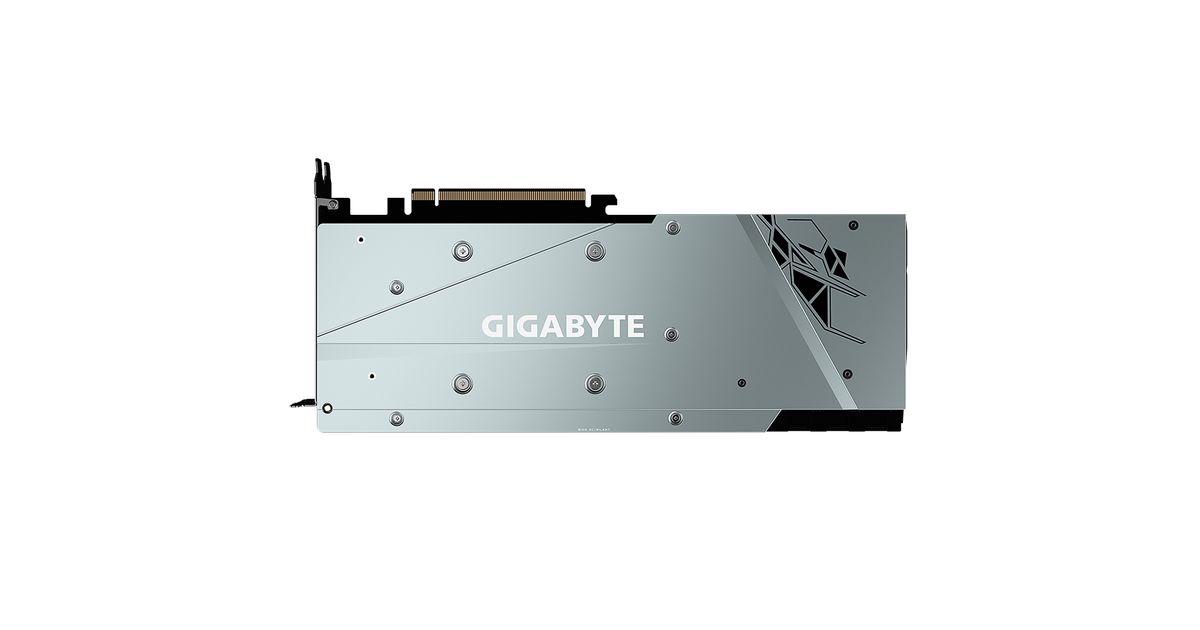

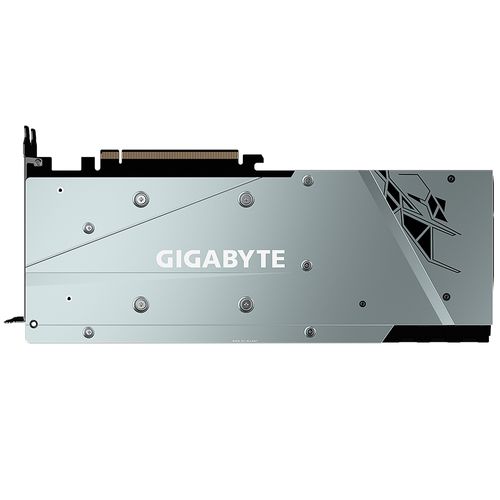

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
