Gigabyte Radeon RX 7800 XT GAMING OC AMD 16 GB GDDR6
Gigabyte Radeon RX 7800 XT GAMING OC, Radeon RX 7800 XT, 16 GB, GDDR6, 256 bit, 7680 x 4320 pixels, PCI Express 4.0
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Gigabyte |
| Product code | 2210372066 |
| EAN | 04719331314514 |
| Manufacturer part number | GV-R78XTGAMING OC-16GD |
| Category | Graafikakaardid |
| Processor | |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 7800 XT |
| CUDA | No |
| Processor boost clock speed | 2565 MHz |
| Stream processors | 3840 |
| Maximum displays per videocard | 4 |
| Graphics | |
|---|---|
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Discrete graphics adapter memory | 16 GB |
| Memory | |
|---|---|
| Graphics adapter memory type | GDDR6 |
| Memory bus | 256 bit |
| Number of pipelines | 7 |
| Features | |
|---|---|
| Data transfer rate | 19.5 Gbit/s |
| DisplayPort version | 2.1 |
| Dual Link DVI | No |
| Supplementary power connectors | 2x 8-pin |
| Ports & interfaces | |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1 |
| Performance | |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Fan diameter | 9 cm |
| Design | |
|---|---|
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Black |
| Other features | |
|---|---|
| Bracket height | Full-Height (FH) |
| User guide | Yes |
| Power | |
|---|---|
| Minimum system power supply | 700 W |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
|---|---|
| Depth | 302 mm |
| Height | 56 mm |
| Width | 130 mm |
| Packaging data | |
|---|---|
| Package type | Box |
Product Description

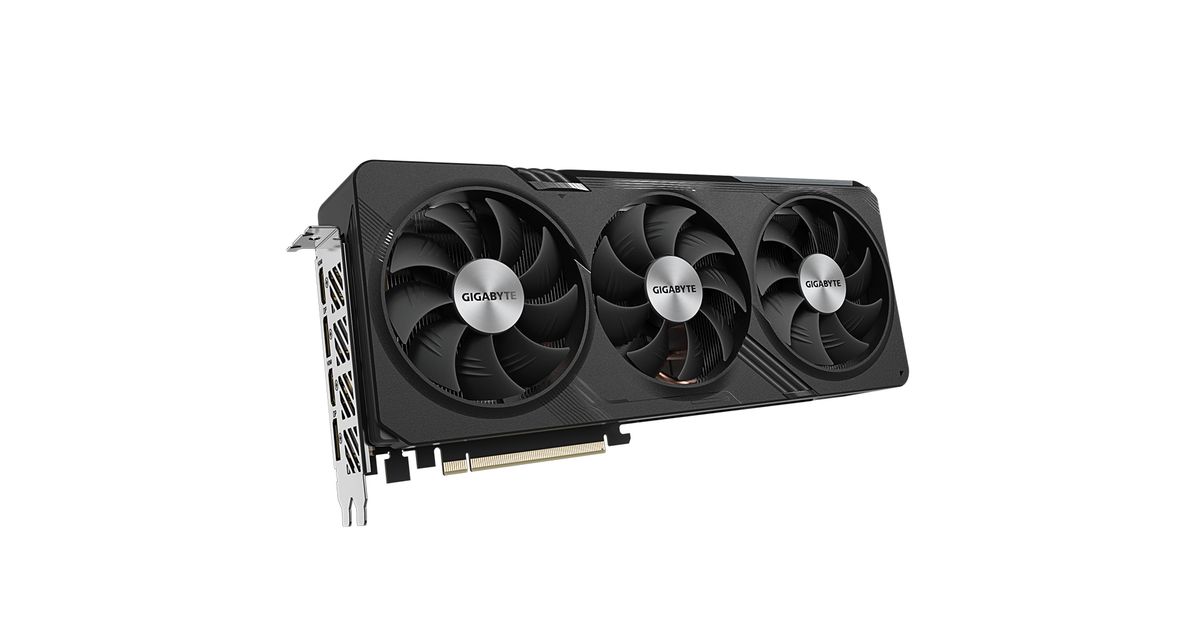

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

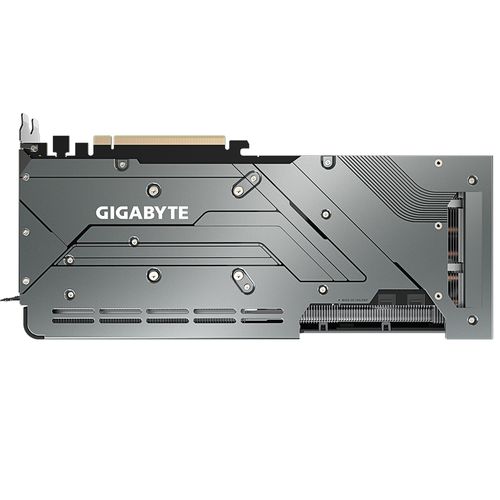

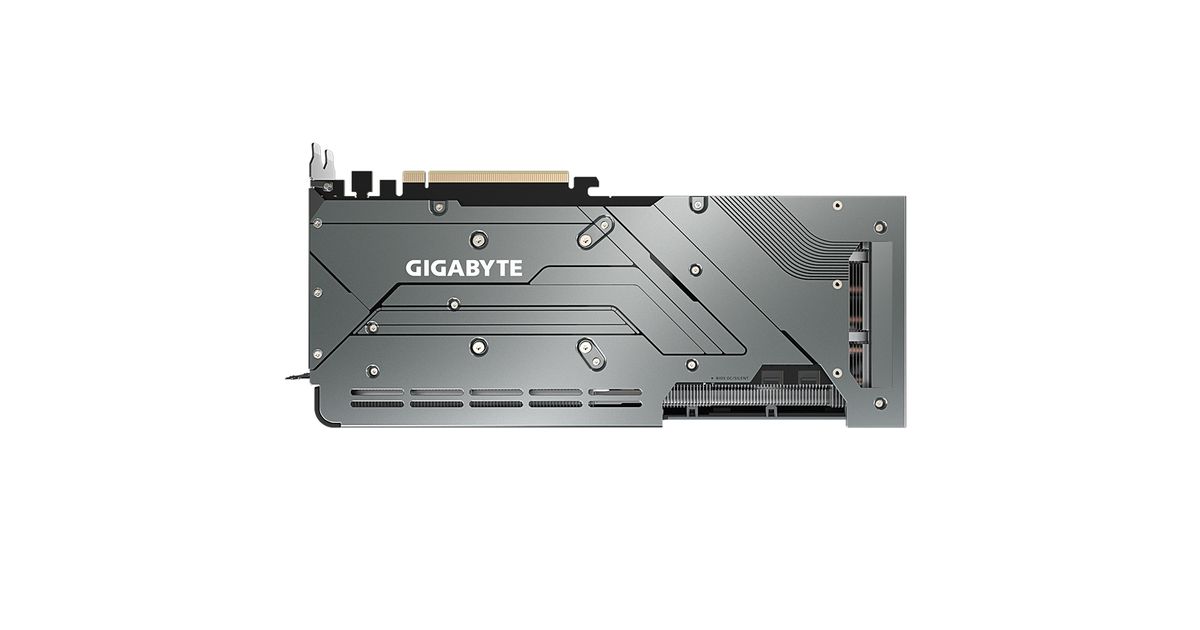

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
BUILT STRONG
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
AMD Radeon™ Anti-Lag
Minimizes input lag so you can game like a champion.
AMD Radeon™ Boost
Delivers extra performance and responsiveness when you need it most.
AMD Radeon™ Image Sharpening
Improves in-game visuals with virtually no impact to performance.
AMD Radeon™ Super Resolution
In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.
AMD Noise Suppression
Reduces background audio noise from your surrounding environment for clearer communication.
AMD Link
Connect your phone, tablet, TV, or Windows-based PC and play your games from almost anywhere in the world.
