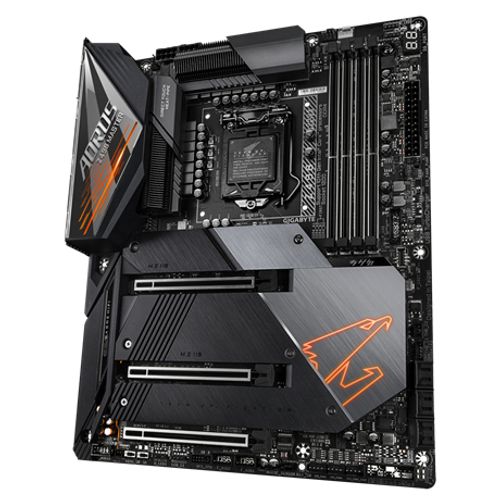

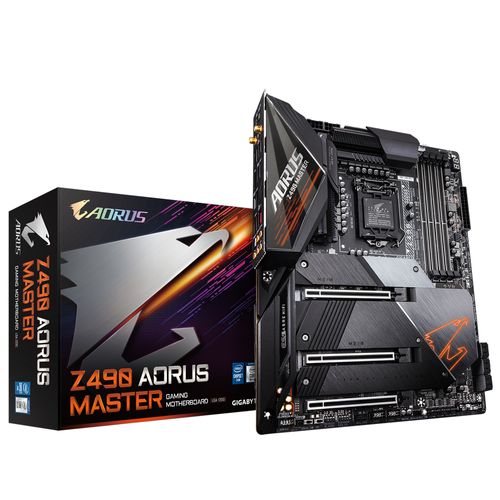

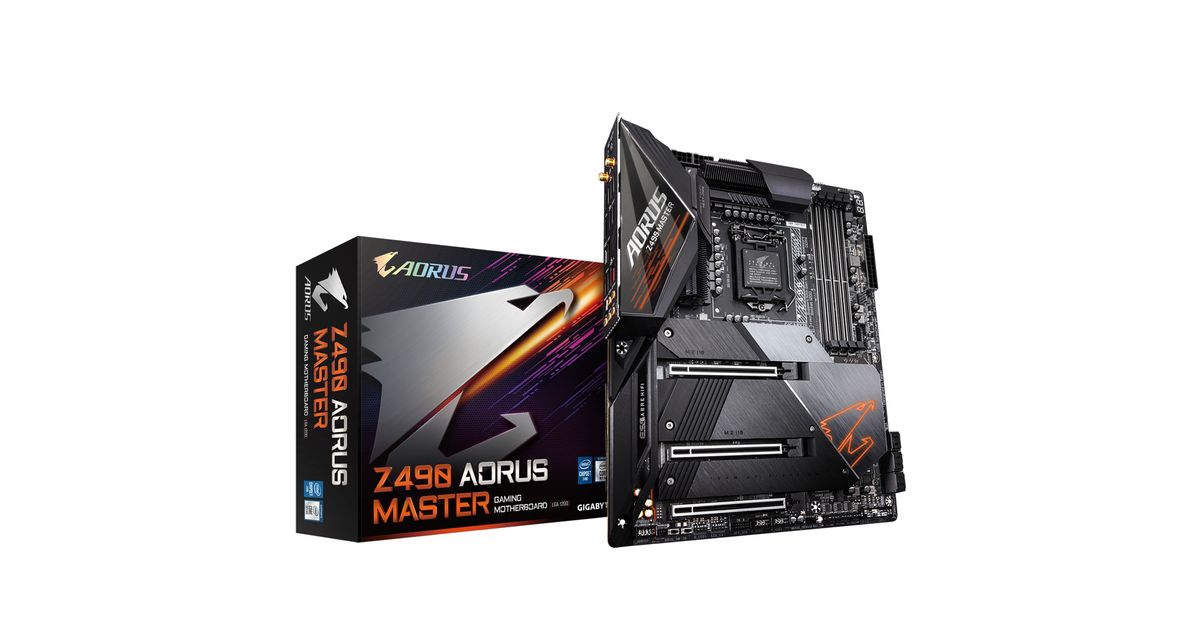

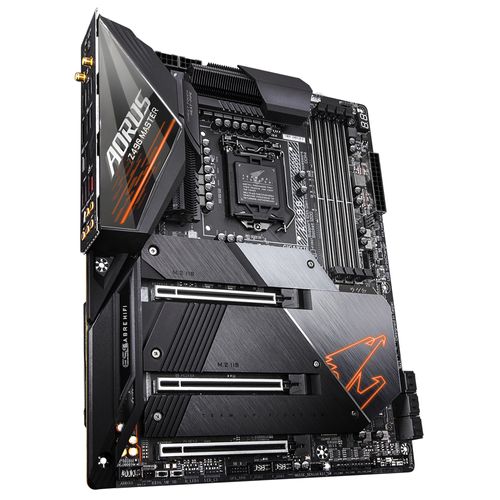

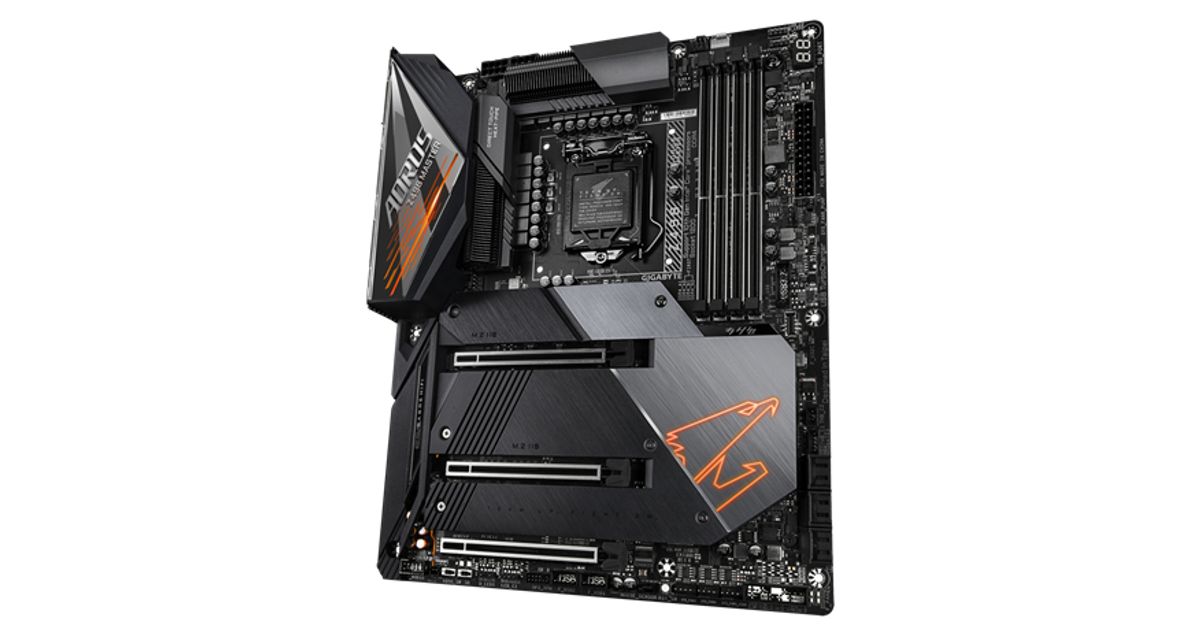

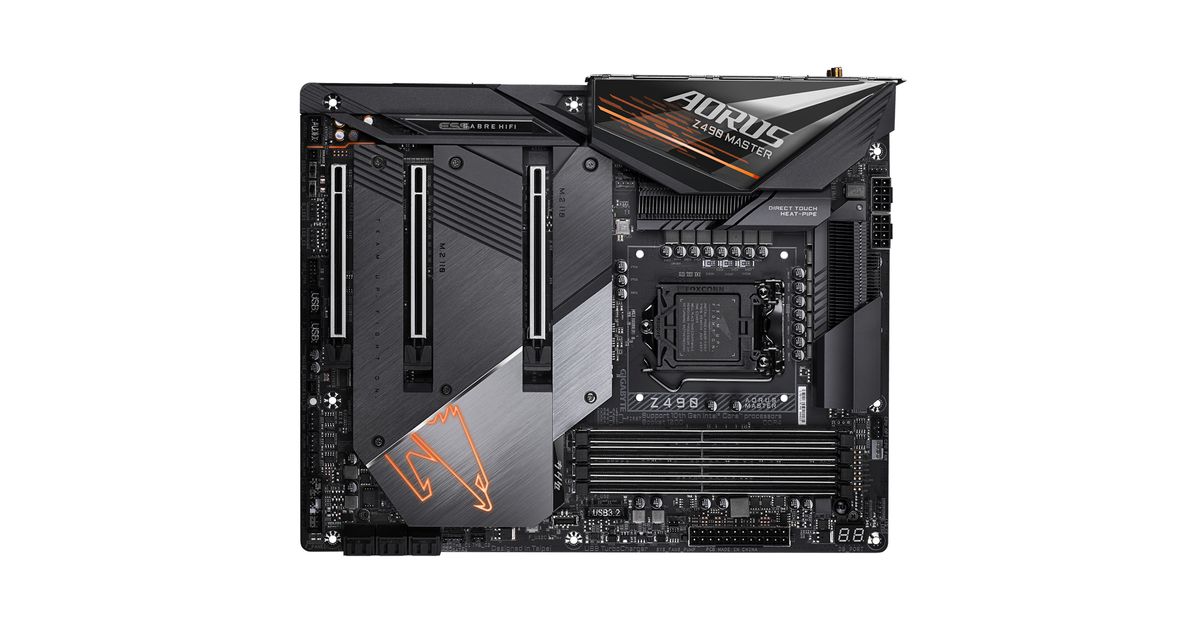

Gigabyte Z490 AORUS MASTER motherboard Intel Z490 LGA 1200 ATX
Gigabyte Z490 AORUS MASTER, Intel, LGA 1200, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®, DDR4-SDRAM, 128 GB, DIMM
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Gigabyte |
| Product code | 152326450 |
| EAN | 00889523021439 |
| Manufacturer part number | Z490 AORUS MASTER |
| Category | Motherboards |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 |
| Maximum number of SMP processors | 1 |
| Performance | |
|---|---|
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® |
| Power source type | ATX |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC | Y |
| Non-ECC | Y |
| Supported memory clock speeds | 3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000 MHz |
| Unbuffered memory | Y |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | 2-Way SLI, Crossfire |
| On-board graphics adapter | Y |
| Graphics adapter family | Intel |
| Graphics adapter | HD Graphics |
| Maximum resolution | 4096 x 2160 pixels |
| Discrete graphics support | Y |
| Features | |
|---|---|
| HDCP | Y |
| Audio connector | Y |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z490 |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC1220-VB |
| PC health monitoring | Fan, Temperature, Voltage |
| Harmonized System (HS) code | 84733020 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 6 |
| Front panel audio connector | Y |
| Front panel connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| Number of chassis fan connectors | 6 |
| EPS power connector (8-pin) | Y |
| TPM connector | Y |
| Thunderbolt headers | 2 |
| RGB LED pin header | Y |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| S/PDIF out port | Y |

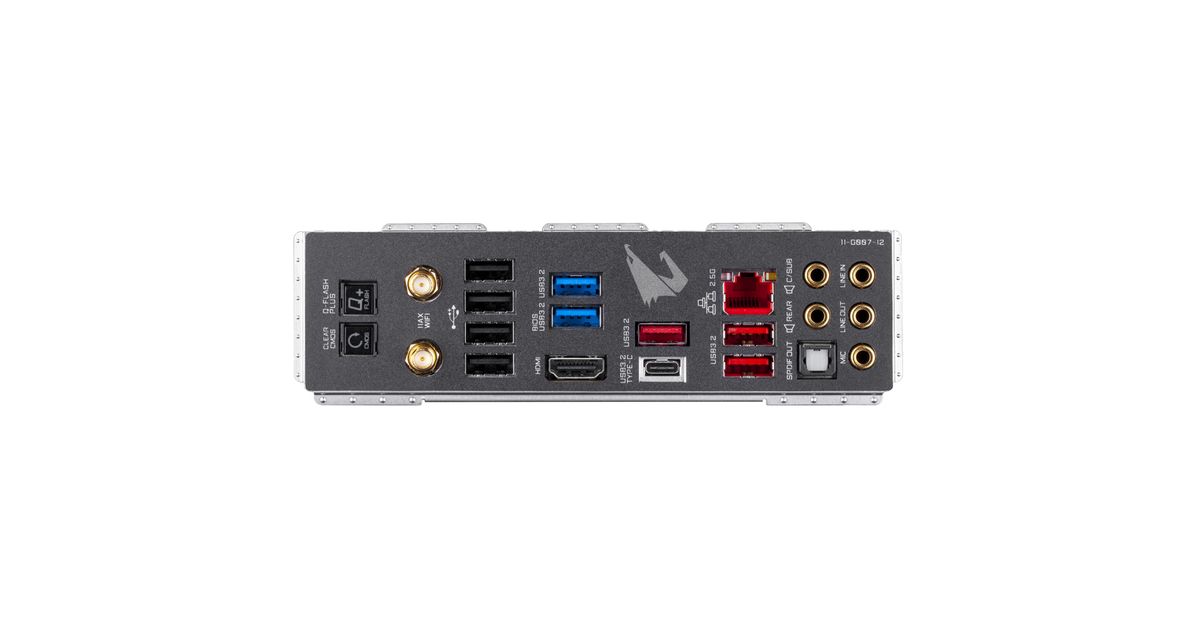

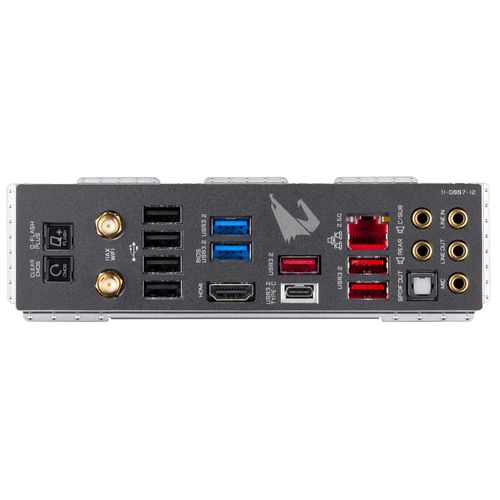

| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Digital audio optical out | 5 |
| Network | |
|---|---|
| Wi-Fi | Y |
| Ethernet LAN | Y |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Intel AX201 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) |
| Bluetooth | Y |
| Bluetooth version | 5.0 |
| Design | |
|---|---|
| Component for | PC |
| Cooling type | Passive |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10 x64 |
| Bundled software | Norton ® Internet Security (OEM version) cFosSpeed XSplit Gamecaster + Broadcaster (12 months license) |
| Expansion slots | |
|---|---|
| PCI Express x16 slots | 3 |
| Number of M.2 (M) slots | 3 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS jumper | Y |
| Clear CMOS button | Y |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Product Description
PUNK GAMING
Neonpunk style emanates in the darkness from the glimmer of high quality metals, showcasing futuristic aesthetics in the darkness of the night.
The new era of esports has arrived.
EXTREME POWER DESIGN
To unleash the full potential of the new Intel 10-core CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z490 AORUS MASTER is a true beast among motherboards.
UNPARALLELED PERFORMANCE
GIGABYTE understands that our customer won't stop chasing better computer performance, and strive to deliver that in our products. For the Z490 series, protective and optimized memory trace enhance the performance; faster read and write speed save time and improve efficiency; and generous M.2 Storage with thermal guards ensure unthrottled read and write performance. Future upgrades to the Z490 are made possible by the use of PCIe 4.0-ready components.
ADVANCED THERMAL SOLUTION
Unthrottled performance is guaranteed by the enhanced thermal solution that incorporates Fins-Array II, Heatpipe II and Thermal Guards II. The comprehensive solution delivers excellent heat dissipation. The Z490 AORUS MASTER stays cool on VRMs and M.2 SSD even on full loading, making it most suitable for enthusiasts, overclockers and professional gamers.
NEXT GENERATION CONNECTIVITY
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. Z490 AORUS MASTER provides all next generation network, storage, and WIFI connectivity to keep you up to speed.
HI-FI AUDIO SYSTEM
To Elevate Your Sound Experience with ESS SABRE Audio DAC and DTS.
Hi-Res Audio
Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times.
DEFINITIVE AESTHETICS
Z490 AORUS MASTER features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make their PC more unique and stylish.
ULTRA DURABLE
GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the Z490 AORUS motherboard and reinforce every slot to make each of them solid and durable.
GIGABYTE BIOS & APP CENTER
Good software goes hand in hand with perfect hardware. Z490 AORUS MASTER bundled several useful and intuitive software to help users to control every aspect of motherboard.
