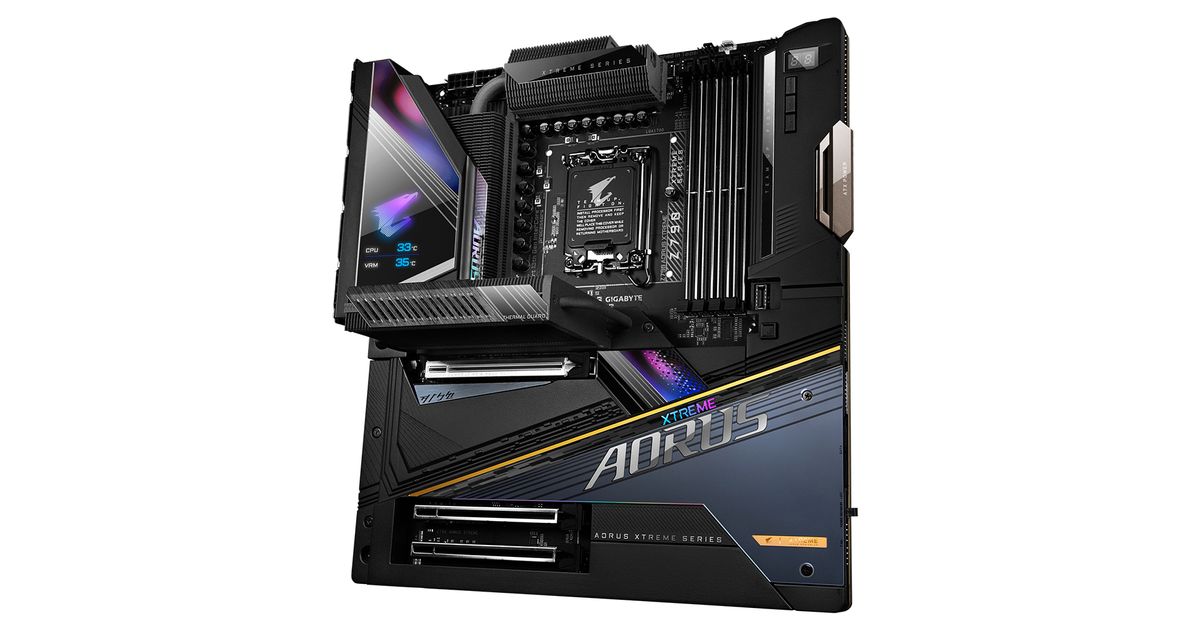

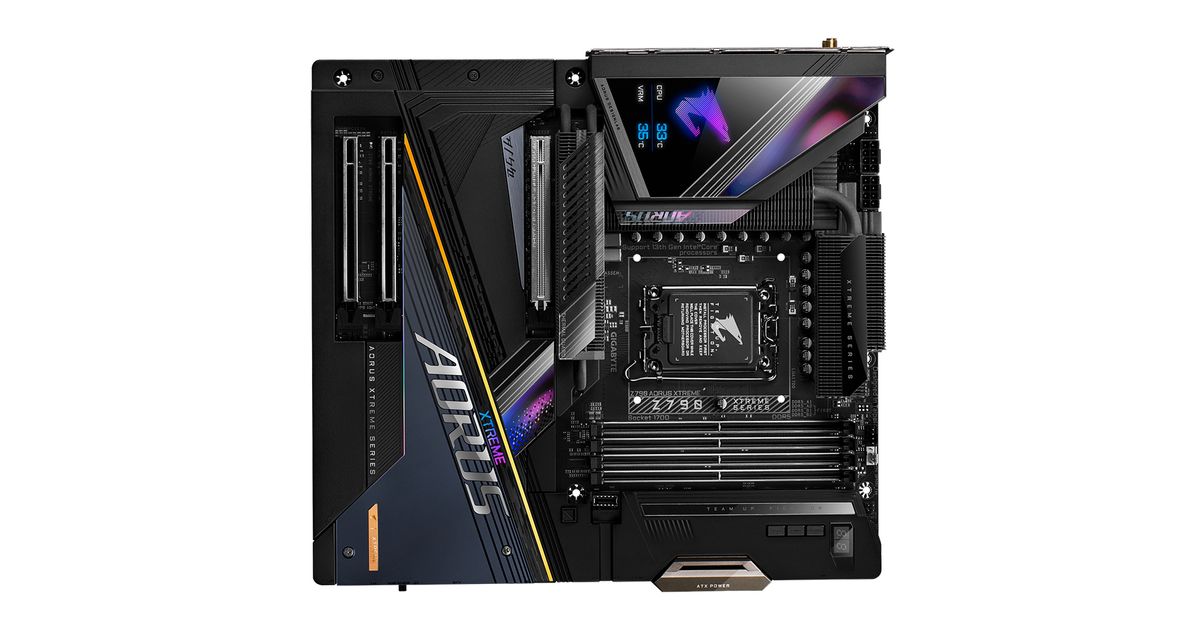

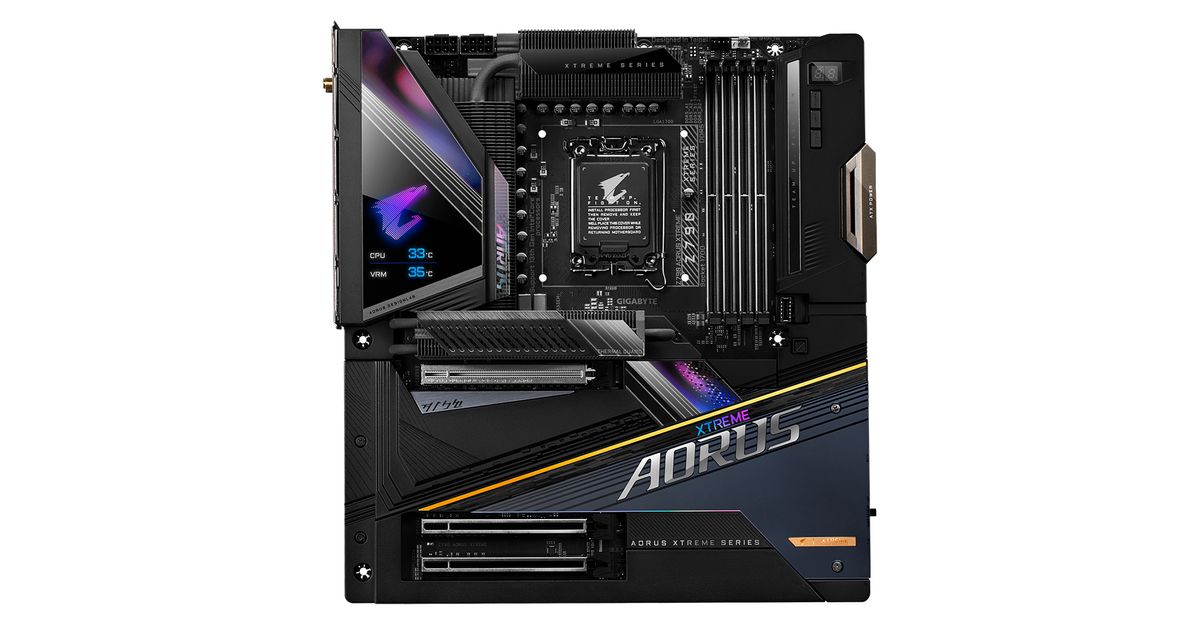

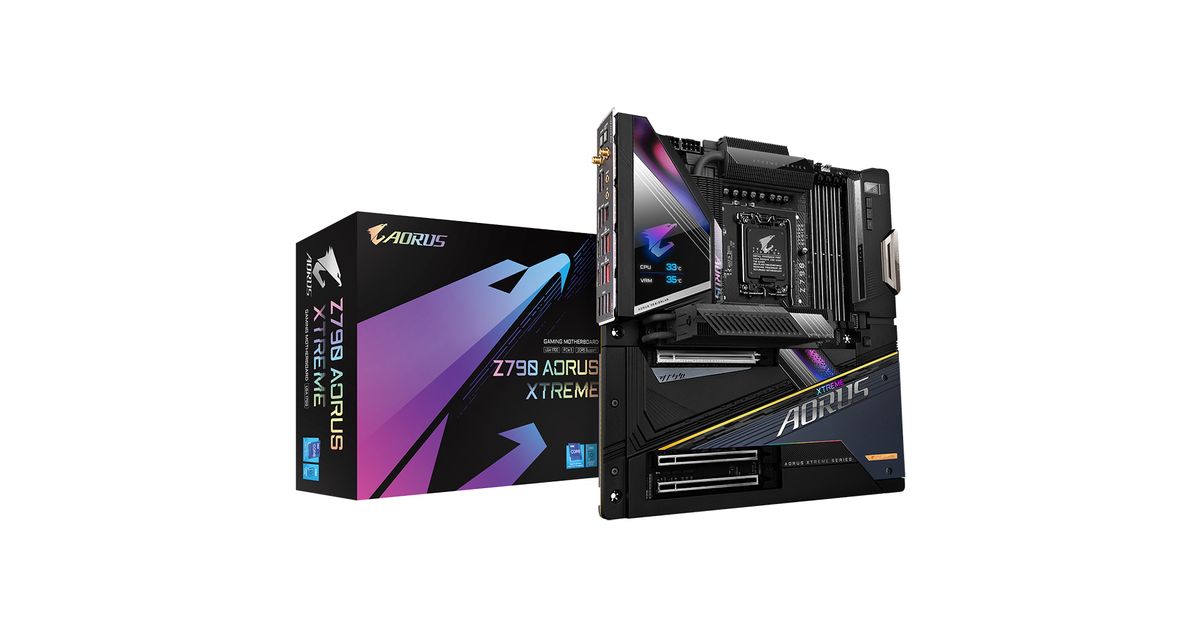

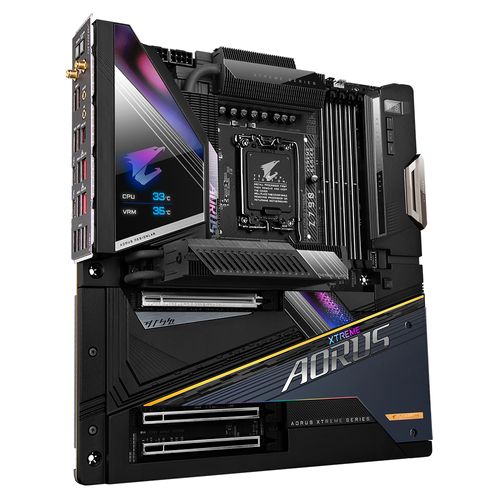

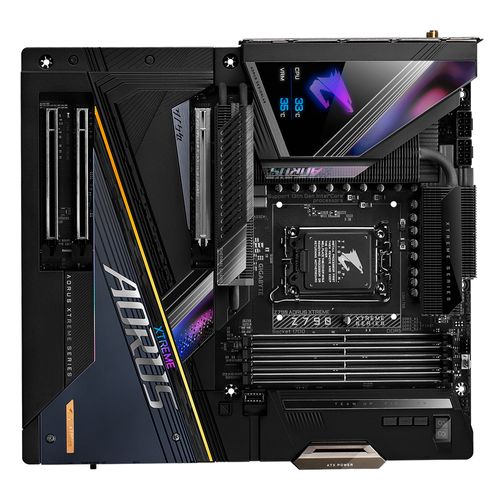

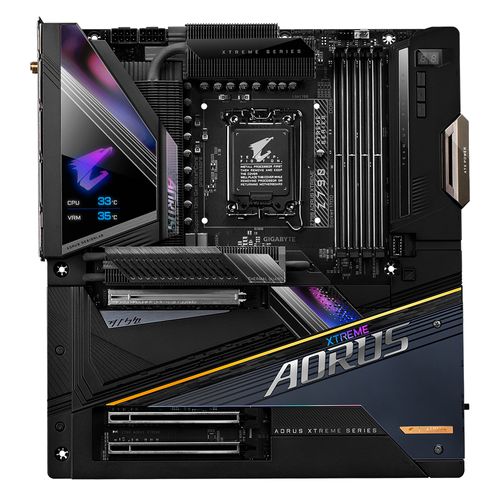

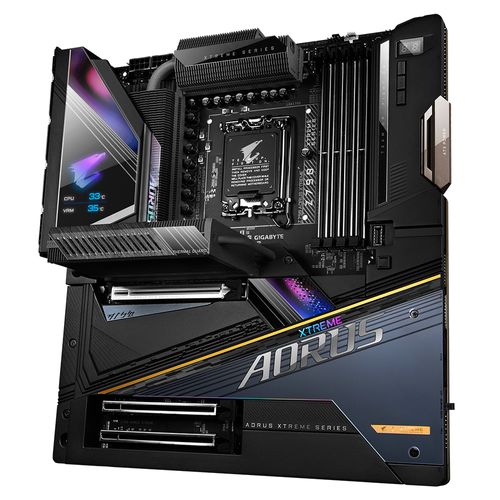

Gigabyte Z790 AORUS XTREME Intel Z790 LGA 1700 Extended ATX
Manufacturer:
Gigabyte
Product Code: 2210248174
EAN: 04719331850388
MPN: Z790 AORUS XTREME (REV. 1.0)
Gigabyte Z790 AORUS XTREME, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 128 GB
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Gigabyte |
| Product code | 2210248174 |
| EAN | 04719331850388 |
| Manufacturer part number | Z790 AORUS XTREME (REV. 1.0) |
| Category | Motherboards |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Performance | |
|---|---|
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC | Yes |
| Non-ECC | Yes |
| Supported memory clock speeds | 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000 MHz |
| Supported memory clock speed (max) | 7600 MHz |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Features | |
|---|---|
| Number of storage drives supported | 10 |
| HDCP | Yes |
| DisplayPort version | 1.2 |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| Audio output channels | 7.1 channels |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Graphics | |
|---|---|
| Parallel processing technology support | Crossfire |
| Maximum resolution | 4096 x 2304 pixels |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Thunderbolt headers | 2 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |

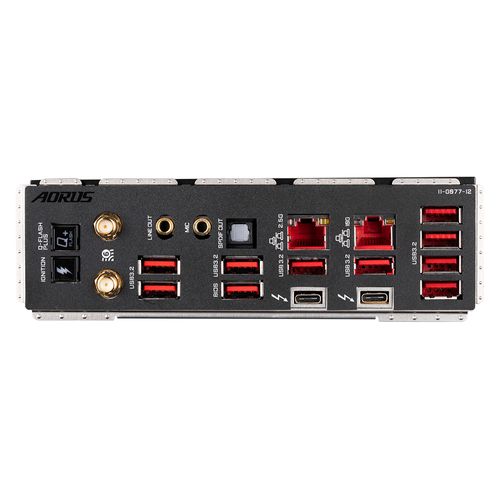

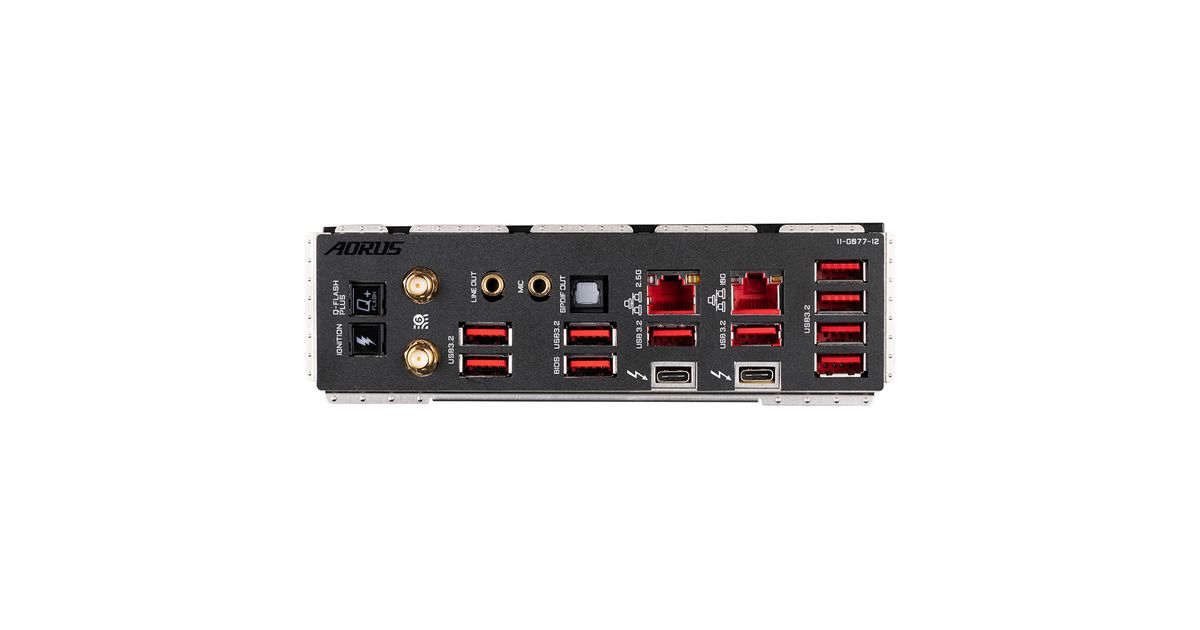

| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 10 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 2 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Thunderbolt ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller model | Killer Wi-Fi 6E AX1690 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Design | |
|---|---|
| Component for | PC |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Bundled software | Norton Internet Security |
| Expansion slots | |
|---|---|
| PCI Express x16 slots | 3 |
| Number of M.2 (M) slots | 5 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 285 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
Product Description
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and WIFI connectivity.
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
ULTRA DURABLE
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
