For illustrative purpose only

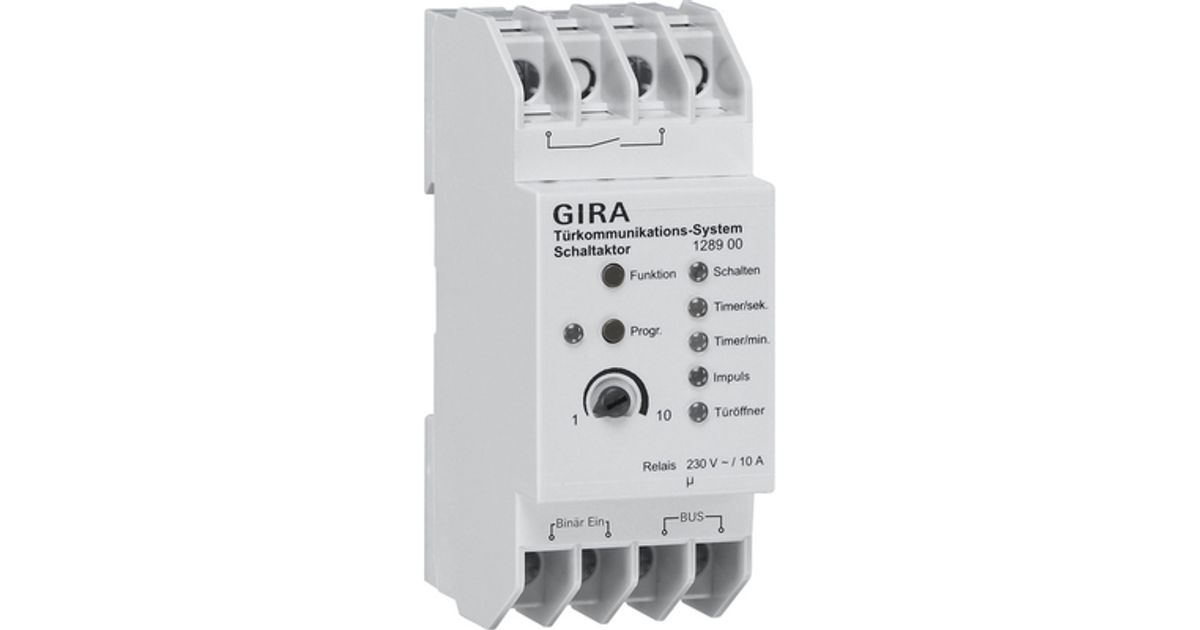

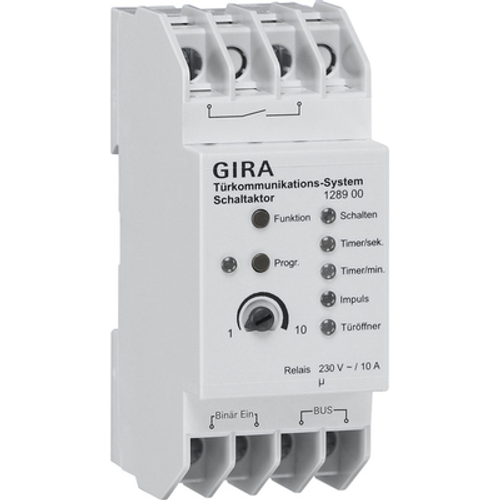

GIRA 128900 electrical actuator White
GIRA 128900, Plastic, White, 230 V, 10 A
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | GIRA |
| Product code | 16739673 |
| EAN | 04010337289005 |
| Manufacturer part number | 128900 |
| Category | Other electrical supplies |
Product Description
Switching actuator for switching light, controlling a door opener on back/side doors or other functions via the Gira door communication bus.
Control of a zero-voltage switching contact 230 V / 10 A via the 2-wire bus.
The switching actuator can be controlled via:
- the buttons "Door" and "Light" on the home station,
- the call button on the door station,
- the call button on the home station,
- the buttons of a telephone (in conjunction with DCS-TC-gateway).
The switching actuator can be used in five different operating modes: switching, timer/sec., timer/min., pulse, and door opener.
Impulse function for controlling existing automatic staircase mechanisms.
Binary input for switching functions via a connected mechanical push button.
Switching time can be adjusted continuously from 1 to 10 s or 1 to 10 min., depending on the function set.
Control of a zero-voltage switching contact 230 V / 10 A via the 2-wire bus.
The switching actuator can be controlled via:
- the buttons "Door" and "Light" on the home station,
- the call button on the door station,
- the call button on the home station,
- the buttons of a telephone (in conjunction with DCS-TC-gateway).
The switching actuator can be used in five different operating modes: switching, timer/sec., timer/min., pulse, and door opener.
Impulse function for controlling existing automatic staircase mechanisms.
Binary input for switching functions via a connected mechanical push button.
Switching time can be adjusted continuously from 1 to 10 s or 1 to 10 min., depending on the function set.
