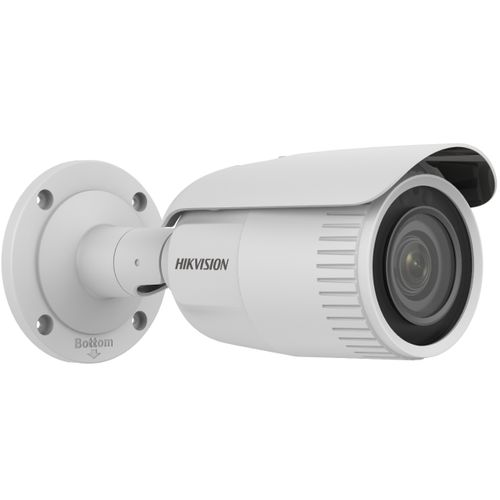

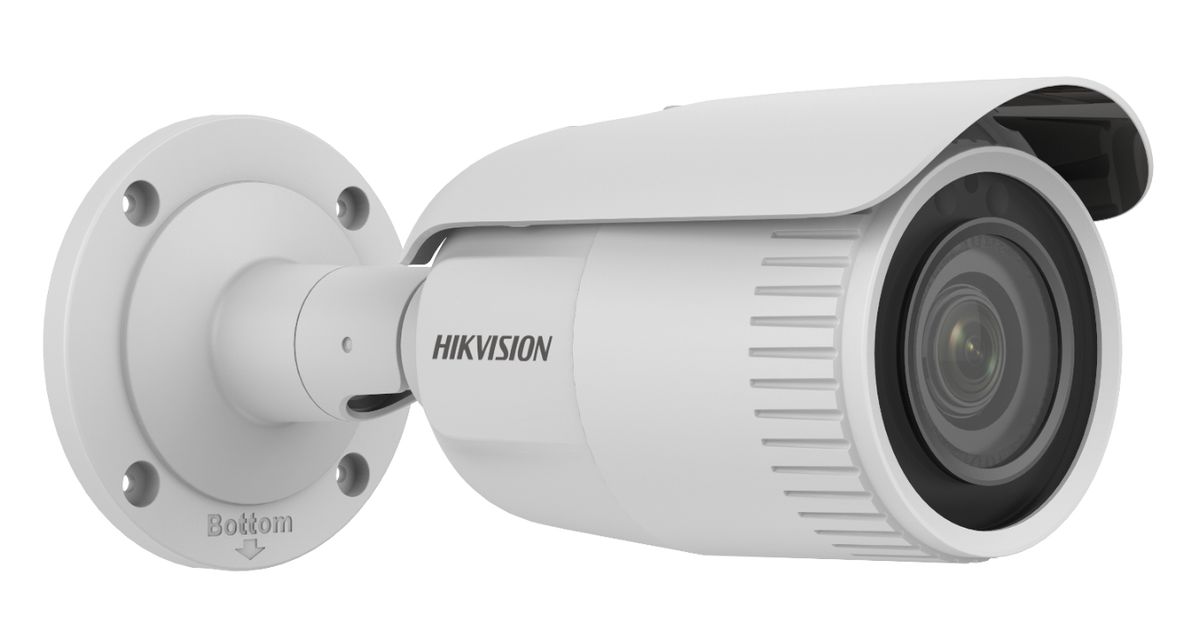

HIKVISION DS-2CD1623G0-IZ 2.8-12mm 2MP / IR30 / IP67 / POE
Manufacturer:
Hikvision Digital Technology
Product Code: 415202659
EAN: 06931847127411
MPN: DS-2CD1623G0-IZ(2.8-
Product Information
| Information | |
|---|---|
| Manufacturer | Hikvision Digital Technology |
| Product code | 415202659 |
| EAN | 06931847127411 |
| Manufacturer part number | DS-2CD1623G0-IZ(2.8- |
| Category | Alarm systems and CCTV-s |
| Features | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Supported graphics resolutions | 320 x 240,360 x 240,640 x 360,640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080) |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Wide Dynamic Range (WDR) | Y |
| Day/night mode | Y |
| Infrared (IR) cut-off filter | Y |
| Number of users | 32 |
| Power source type | DC,PoE |
| Mounting | |
|---|---|
| Mounting type | Ceiling/Wall |
| Design | |
|---|---|
| Product colour | White |
| Form factor | Bullet |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Reset button | Y |
| Camera | |
|---|---|
| Camera pan control | Y |
| Camera tilt control | Y |
| Minimum illumination | 0.01 |
| Lens viewing angle, horizontal | 98 |
| Lens viewing angle, diagonal | 115 |
| Pan range | 0 - 360 |
| Camera shutter speed | 1/3 - 1/100000 |
| Auto focus | Y |
| Gain control type | Auto |
| Ergonomics | |
|---|---|
| Angle of rotation | 360 |
| Tilt angle range | 0 - 90 |
| Lens system | |
|---|---|
| Lens viewing angle, vertical | 51 |
| Number of lenses | 1 |
| Maximum aperture number | 1.6 |
| Focal length range | 2.8-12 |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 1/2.8 |
| Progressive scan | Y |
| Night vision | |
|---|---|
| Night vision | Y |
| Night vision distance | 30 |
| LED type | IR |
| Infra-red wavelength | 850 |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1080 |
| Video | |
|---|---|
| Total megapixels | 2 |
| Frame rate | 30 |
| Video streaming | Y |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness,Contrast,Saturation,Sharpness |
| Privacy masking | Y |
| Bit rate | 32 Kbps - 8 Mbps |
| Back Light Compensation (BLC) | Y |
| Region of Interest (ROI) encoding | Y |
| Media formats | |
|---|---|
| Video compression formats | H.264,H.264+,H.265,H.265+,M-JPEG |
| Headphones | |
|---|---|
| Noise reduction | Y |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| Bluetooth | N |
| Ethernet interface type | Fast Ethernet |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1x,IEEE 802.3af |
| Protocols | |
|---|---|
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Storage | |
|---|---|
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash),MicroSDHC,MicroSDXC |
| Maximum memory card size | 128 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Composite video out | 1 |
| Security | |
|---|---|
| Password protection | Y |
| Anti-flicker | Y |
| Heartbeat | Y |
| Mirror | Y |
| Digital watermark | Y |
| Power | |
|---|---|
| Power consumption (max) | 11 |
| Power consumption (Power over Ethernet (PoE)) | 12.9 |
| DC output voltage | 12 |
| DC output current | 0.9 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 60 |
| Storage temperature (T-T) | -30 - 60 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Weight & dimensions | |
|---|---|
| Diameter | 105 |
| Length | 244.4 |
| Weight | 1015 |
| Package weight | 1540 |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
