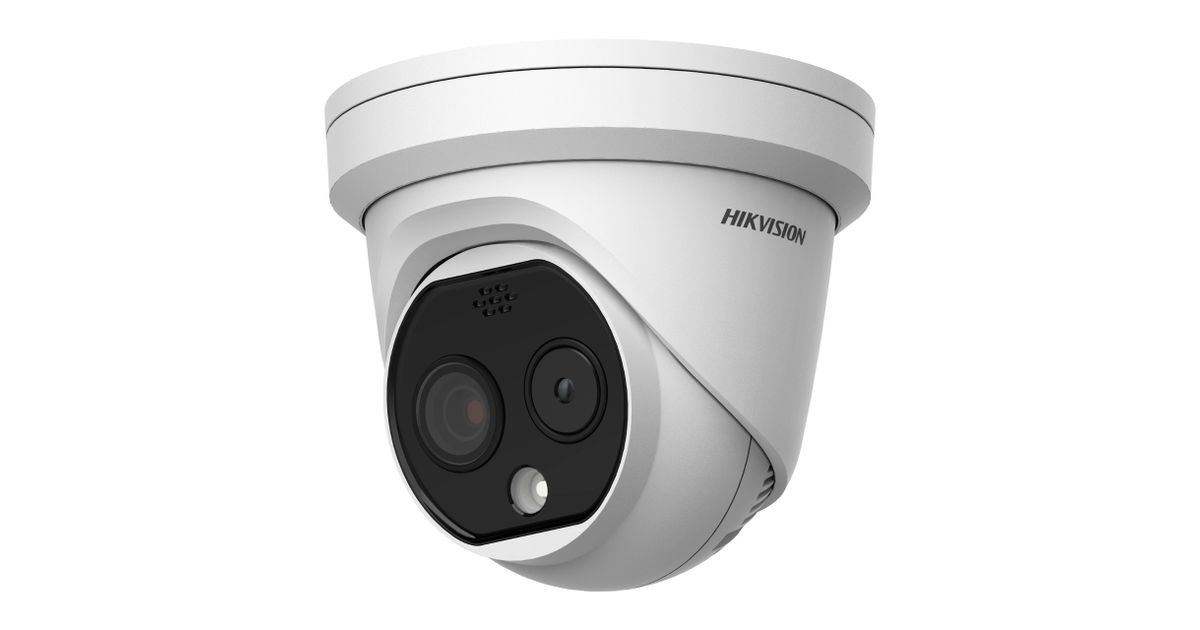

For illustrative purpose only

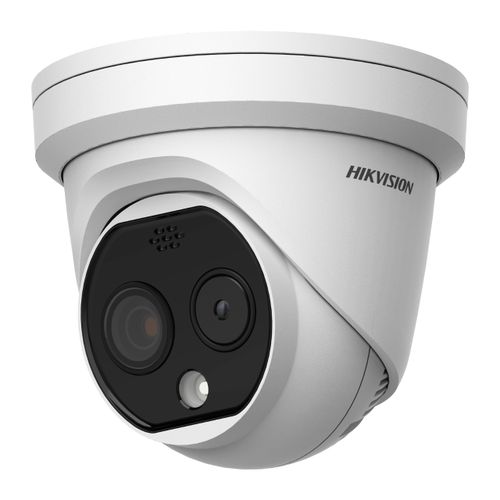

HIKVISION DS-2TD1228-2/QA Thermal 256x192 Bi-Spek DeepinView (DS-2TD1228-2/QA)
Manufacturer:
Hikvision Digital Technology
Product Code: 167783141
EAN: 06931847135560
MPN: DS-2TD1228-2/QA
Product Information
| Information | |
|---|---|
| Manufacturer | Hikvision Digital Technology |
| Product code | 167783141 |
| EAN | 06931847135560 |
| Manufacturer part number | DS-2TD1228-2/QA |
| Category | Kaamerad |
| Features | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Supported graphics resolutions | 352 x 288,384 x 288,640 x 480 (VGA),704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2688 x 1520 |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Wide Dynamic Range (WDR) | Y |
| Day/night mode | Y |
| Alarm input/output | Y |
| Number of languages | 32 |
| Thermal sensitivity (NETD) | 40 |
| IFOV (spatial resolution) | 5.71 |
| Sensor type (thermal module) | Vanadium Oxide Uncooled Focal Plane Arrays |
| Number of users | 32 |
| Power source type | DC,PoE |
| Mounting | |
|---|---|
| Mounting type | Ceiling/Wall |
| Design | |
|---|---|
| Product colour | White |
| Form factor | Turret |
| International Protection (IP) code | IP66 |
| Camera | |
|---|---|
| Minimum illumination | 0.0035 |
| Field of view (FOV) angle (thermal module) | 90 x 65.4 |
| Lens viewing angle, horizontal | 117.8 |
| Camera shutter speed | 1 - 1/100000 |
| Zoom capability | Y |
| Digital zoom | 4 |
| Gain control type | Auto |
| Lens system | |
|---|---|
| Lens viewing angle, vertical | 70.4 |
| Maximum aperture number | 2.3 |
| Fixed focal length | 2.2 |
| Fixed focal length (thermal module) | 2.1 |
| Aperture number (thermal module) | 1 |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 1/2.7 |
| Effective sensor resolution (thermal module) | 256 x 192 |
| Progressive scan | Y |
| Night vision | |
|---|---|
| Night vision | Y |
| Night vision distance | 15 |
| LED type | IR |
| Graphics | |
|---|---|
| Maximum resolution | 2688 x 1520 |
| Video | |
|---|---|
| Total megapixels | 4 |
| Frame rate | 30 |
| Video streaming | Y |
| Noise reduction technology | 3D noise reduction |
| Media formats | |
|---|---|
| Video compression formats | H.264,H.264+,H.265,H.265+,M-JPEG |
| Headphones | |
|---|---|
| Noise reduction | Y |
| Audio | |
|---|---|
| Voice codecs | G.711a,G.711u,G.722.1,G.726,MP2L2,PCM |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| Bluetooth | N |
| Ethernet interface type | Fast Ethernet |
| Security algorithms | EAP-MD5,EAP-TLS |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1x,IEEE 802.3af |
| Protocols | |
|---|---|
| Supported network protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Y |
| Behavior analysis | Intrusion detection,Line crossing detection,Region entrance detection,Region exiting detection |
| Storage | |
|---|---|
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash),MicroSDHC,MicroSDXC |
| Maximum memory card size | 256 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
| BNC output ports | 1 |
| Microphone in | Y |
| Security | |
|---|---|
| Temperature sensor | Y |
| IP address filtering | Y |
| HTTPS encryption | Y |
| Power | |
|---|---|
| Power consumption (max) | 6 |
| Power consumption (Power over Ethernet (PoE)) | 6.5 |
| DC output voltage | 12 |
| DC output current | 0.5 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 65 |
| Operating relative humidity (H-H) | 0 - 95 |
| Weight & dimensions | |
|---|---|
| Width | 138.3 |
| Depth | 138.3 |
| Height | 123.1 |
| Weight | 940 |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
