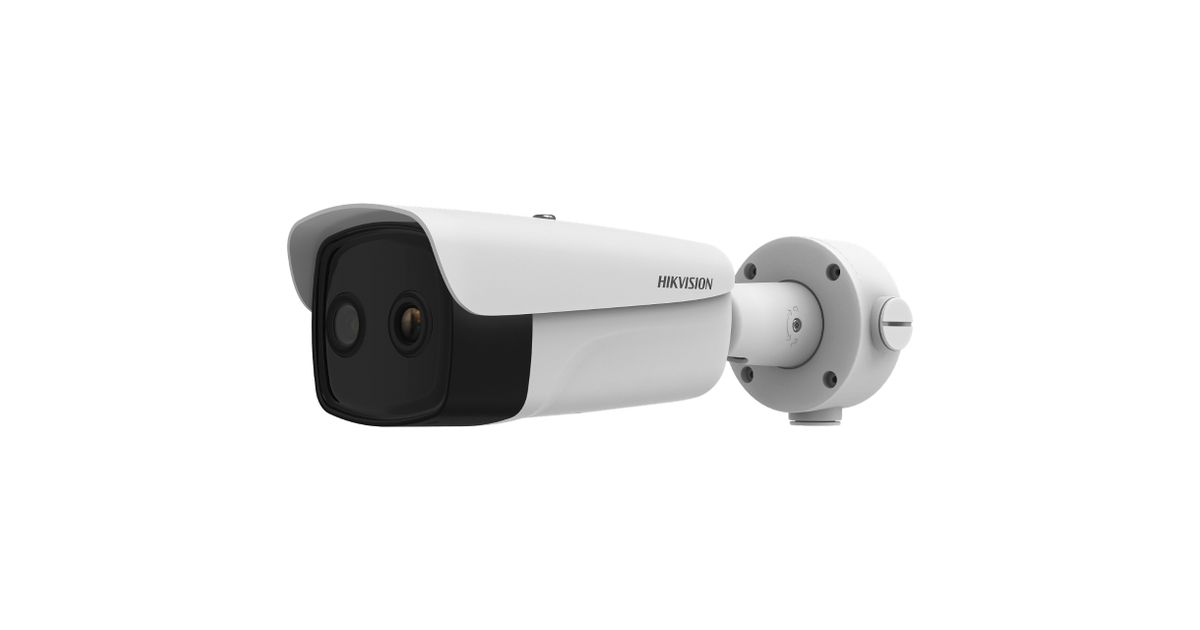

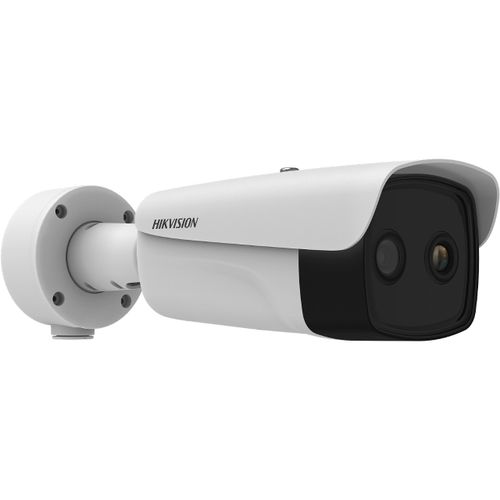

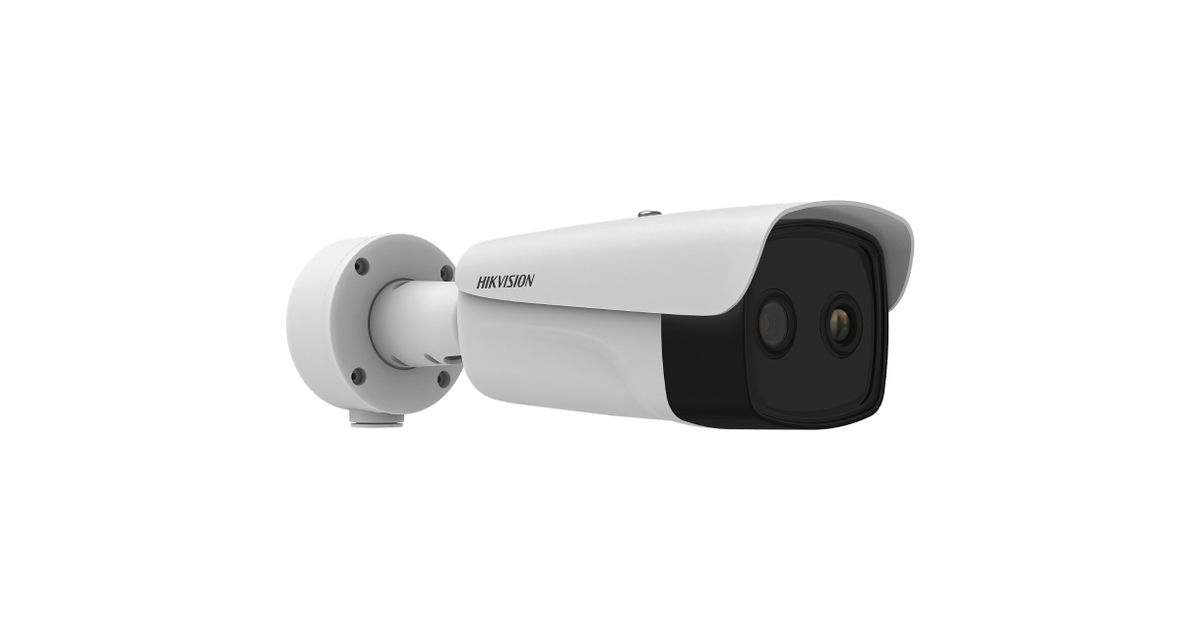

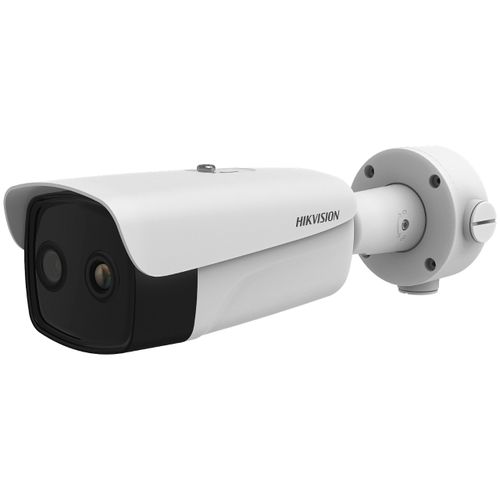

HIKVISION DS-2TD2637-15/QY Thermal 364x288 Bi-Spectrum Bullet (DS-2TD2637-15/QY)
Manufacturer:
Hikvision Digital Technology
Product Code: 167777550
EAN: 06931847160319
MPN: DS-2TD2637-15/QY
Product Information
| Information | |
|---|---|
| Manufacturer | Hikvision Digital Technology |
| Product code | 167777550 |
| EAN | 06931847160319 |
| Manufacturer part number | DS-2TD2637-15/QY |
| Category | Alarm systems and CCTV-s |
| Features | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Supported graphics resolutions | 704 x 576,1280 x 720 (HD 720),704 x 480,352 x 288,352 x 240,2688 x 1520,640 x 480 (VGA),1920 x 1080 (HD 1080) |
| Temperature measurement range | -20 - 150 |
| Temperature measurement accuracy | 8 |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Wide Dynamic Range (WDR) | Y |
| Alarm input/output | Y |
| Number of languages | 32 |
| Languages support | Multi |
| Thermal sensitivity (NETD) | 35 |
| IFOV (spatial resolution) | 1.13 |
| Dynamic range | 120 |
| Sensor type (thermal module) | Vanadium Oxide Uncooled Focal Plane Arrays |
| Infrared spectral band | 8 - 14 |
| Number of users | 32 |
| Alarm input channels | 2 |
| Alarm output channels | 2 |
| Power source type | AC,DC,PoE |
| Mounting | |
|---|---|
| Mounting type | Ceiling/Wall |
| Design | |
|---|---|
| Product colour | White |
| Form factor | Bullet |
| International Protection (IP) code | IP67 |
| Reset button | Y |
| Camera | |
|---|---|
| Field of view (FOV) angle (thermal module) | 24.5 x 18.5 |
| Lens viewing angle, horizontal | 51.7 |
| White balance | Fluorescent L,Natural,Incandescent |
| Camera pixel size | 17 |
| Camera shutter speed | 1 - 1/100000 |
| Zoom capability | Y |
| Digital zoom | 4 |
| Gain control type | Auto |
| Live view | Y |
| Lens system | |
|---|---|
| Lens viewing angle, vertical | 28 |
| Detect distance | 1353 |
| Recognize distance | 338 |
| Maximum aperture number | 1.6 |
| Identify distance | 169 |
| Fixed focal length | 6 |
| Closest focusing distance | 2.5 |
| Fixed focal length (thermal module) | 15 |
| Aperture number (thermal module) | 1 |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 1/2.7 |
| Effective sensor resolution (thermal module) | 384 x 288 |
| Night vision | |
|---|---|
| Night vision | Y |
| Night vision distance | 30 |
| LED type | IR |
| Graphics | |
|---|---|
| Maximum resolution | 2688 x 1520 |
| Video | |
|---|---|
| Total megapixels | 4 |
| Frame rate | 30 |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Contrast |
| Media formats | |
|---|---|
| Video compression formats | H.264,H.265,M-JPEG |
| Audio formats supported | G.711 A-law,G.711 μ-law,G.722.1,G.726,MP2L2,PCM |
| Headphones | |
|---|---|
| Noise reduction | Y |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| Bluetooth | N |
| Ethernet interface type | Fast Ethernet |
| User access level | Administrator,Operator,User |
| Number of simultaneous live view channels | 20 |
| Security algorithms | 802.1x RADIUS |
| Client interoperability | iVMS-4200, Hik-Connect |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1x,IEEE 802.3af |
| Password protection type | User |
| Protocols | |
|---|---|
| Supported network protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, TP, Bonjour, SFTP, SRTP |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Y |
| Behavior analysis | Intrusion detection,Line crossing detection,Region entrance detection,Region exiting detection |
| Storage | |
|---|---|
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash),MicroSDHC,MicroSDXC |
| Maximum memory card size | 256 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
| Microphone in | Y |
| Headphone outputs | 1 |
| Security | |
|---|---|
| Temperature sensor | Y |
| Fire detection | Y |
| Password protection | Y |
| IP address filtering | Y |
| HTTPS encryption | Y |
| Alert notification type | |
| Automatic Network Replenishment (ANR) | Y |
| Power | |
|---|---|
| Power consumption (max) | 9.5 |
| Power consumption (Power over Ethernet (PoE)) | 10 |
| DC output voltage | 12 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 65 |
| Storage temperature (T-T) | -40 - 65 |
| Operating relative humidity (H-H) | 0 - 95 |
| Weight & dimensions | |
|---|---|
| Width | 119.1 |
| Depth | 376.1 |
| Height | 118.1 |
| Weight | 1820 |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
