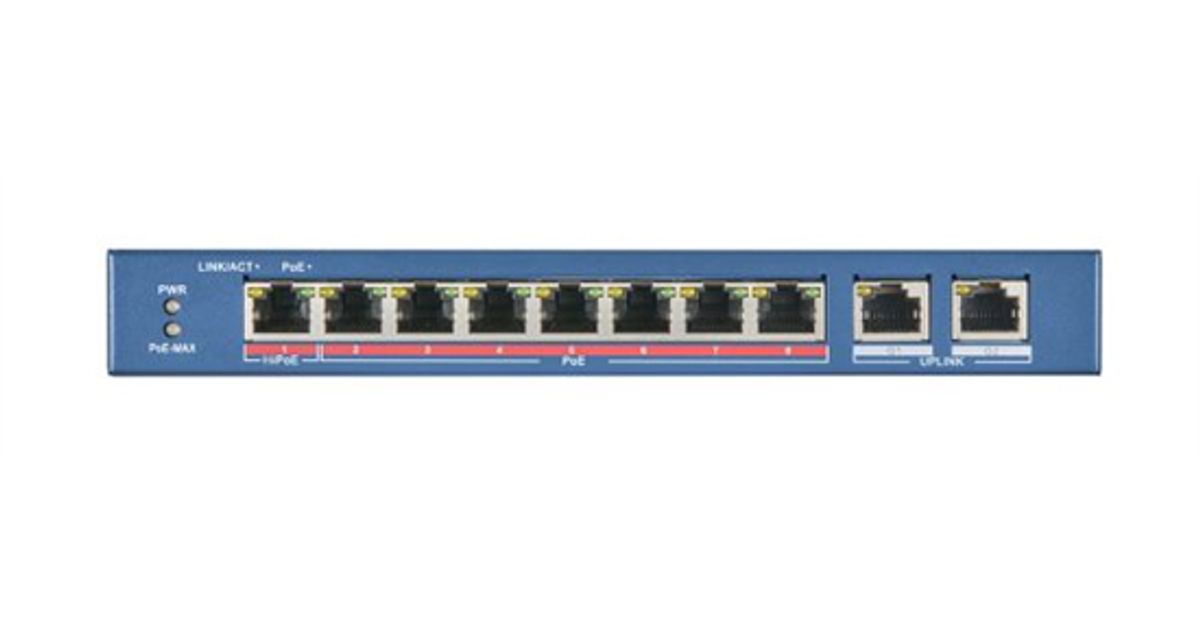

HIKVISION DS-3E0310HP-E 8 Port Gigabit unmanaged PoE Switch (DS-3E0310HP-E)
Manufacturer:
Hikvision Digital Technology
Product Code: 16746474
EAN: 06954273693350
MPN: NUHIKSS10000000
Product Information
| Information | |
|---|---|
| Manufacturer | Hikvision Digital Technology |
| Product code | 16746474 |
| EAN | 06954273693350 |
| Manufacturer part number | NUHIKSS10000000 |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Network | |
|---|---|
| 10G support | N |
| Auto MDI/MDI-X | Y |
| Features | |
|---|---|
| Full duplex | Y |
| Data transmission | |
|---|---|
| MAC address table | 16000 |
| Switching capacity | 5.6 |
| Forwarding rate | 4.166 |
| Store-and-forward | Y |
| Design | |
|---|---|
| Product colour | Blue |
| Housing material | Metal |
| LED indicators | Y |
| Power | |
|---|---|
| DC input voltage | 48 |
| Input current | 2.5 |
| Power consumption (typical) | 10 |
| Power consumption (max) | 120 |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 60 |
| Total Power over Ethernet (PoE) budget | 110 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 55 |
| Storage temperature (T-T) | -40 - 85 |
| Operating relative humidity (H-H) | 5 - 95 |
| Storage relative humidity (H-H) | 5 - 95 |
| Weight & dimensions | |
|---|---|
| Width | 217.6 |
| Depth | 103.35 |
| Height | 27.8 |
| Weight | 550 |
| Package weight | 1220 |
