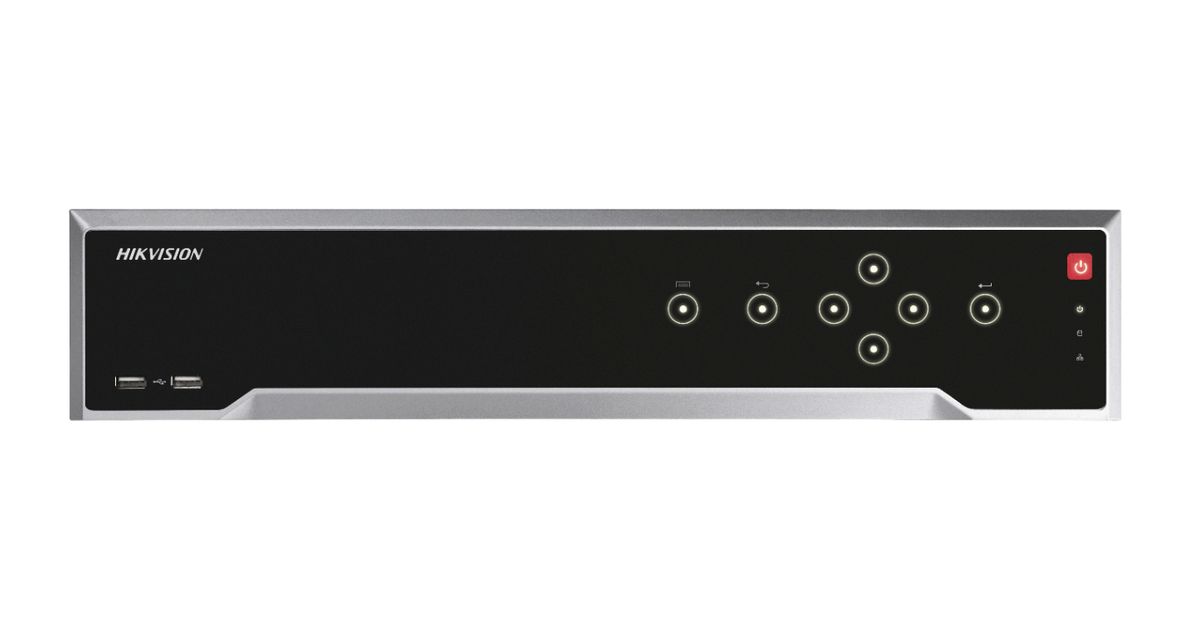

HIKVISION DS-7716NI-I4/16P(B) NVR 16 Kanal SMART IP (DS-7716NI-I4/16P(B))
Manufacturer:
Hikvision Digital Technology
Product Code: 166312280
EAN: 06954273670337
MPN: MOHIKNVR0000322
Product Information
| Information | |
|---|---|
| Manufacturer | Hikvision Digital Technology |
| Product code | 166312280 |
| EAN | 06954273670337 |
| Manufacturer part number | MOHIKNVR0000322 |
| Performance | |
|---|---|
| Video input channels | 16 |
| Alarm input channels | 16 |
| Alarm output channels | 4 |
| Number of simultaneously playbacked channels | 16 |
| Number of users | 128 |
| Input bandwidth | 160 |
| Output bandwidth | 256 |
| Graphics | |
|---|---|
| Maximum resolution | 3840 x 2160 |
| Other features | |
|---|---|
| Supported resolutions | 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768, 704 x 576, 704 x 480 |
| USB 2.0 ports quantity | 2 |
| Networking standards | IEEE 802.3af,IEEE 802.3at |
| Media formats | |
|---|---|
| Audio formats supported | G.711 A-law,G.711 μ-law,G.726 |
| Video formats supported | H.264,H.264+,H.265,H.265+,MPEG4 |
| Video | |
|---|---|
| Analog signal format system | NTSC,PAL |
| Maximum frame rate | 30 |
| Audio | |
|---|---|
| Audio system | 2-way |
| Network | |
|---|---|
| Wi-Fi | N |
| Ethernet LAN data rates | 10,100,1000 |
| Hard drive | |
|---|---|
| Maximum storage capacity | 10 |
| Features | |
|---|---|
| HDD interface | SATA |
| Certification | FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
| Storage | |
|---|---|
| Number of HDDs supported | 4 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| BNC video output | Y |
| HDMI ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| eSATA ports quantity | 1 |
| RS-485 ports | 1 |
| RS-232 ports | 1 |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 200 |
| Protocols | |
|---|---|
| Supported network protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Design | |
|---|---|
| Rack mounting | Y |
| Rack capacity | 1.5U |
| Product colour | Black,Silver |
| Power | |
|---|---|
| Power consumption (typical) | 20 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 55 |
| Operating relative humidity (H-H) | 10 - 90 |
| Weight & dimensions | |
|---|---|
| Width | 440 |
| Depth | 387 |
| Height | 75 |
| Weight | 5000 |
