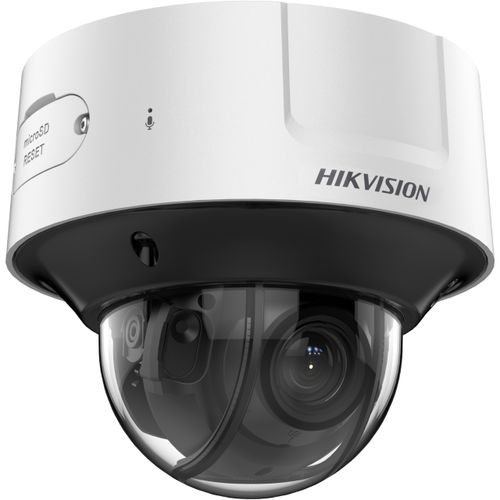

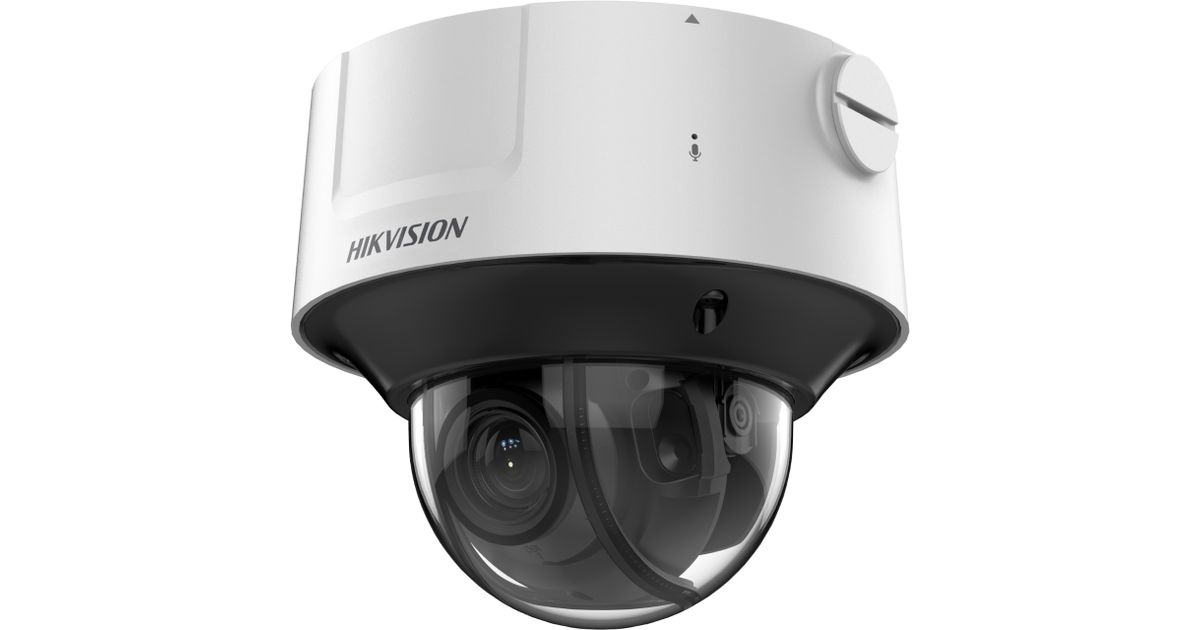

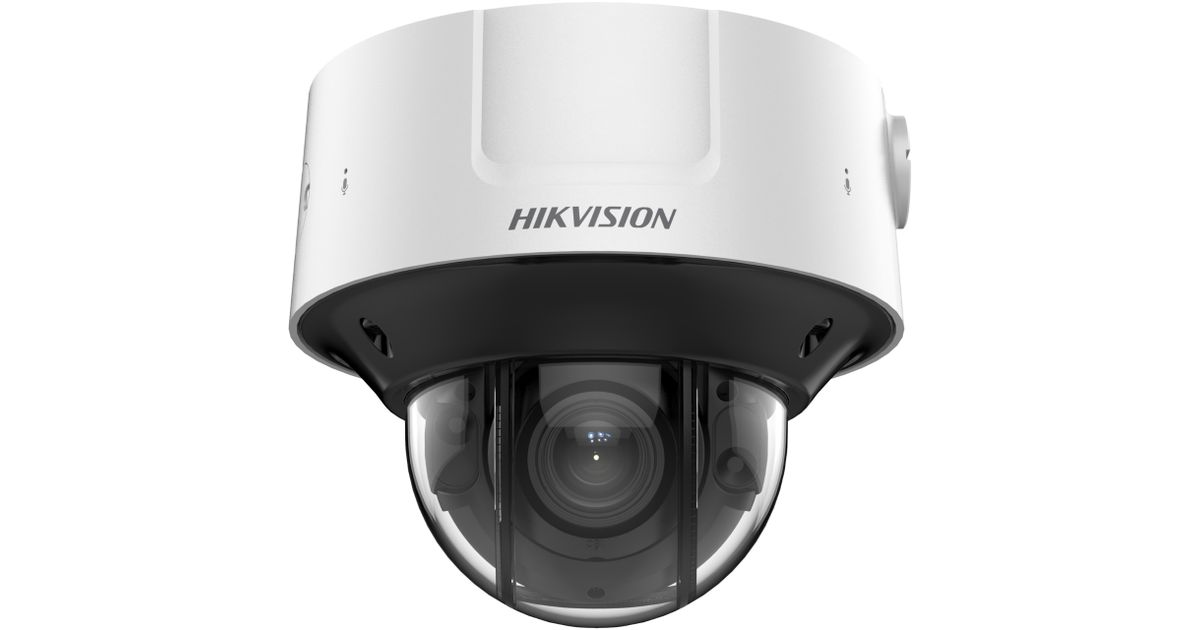

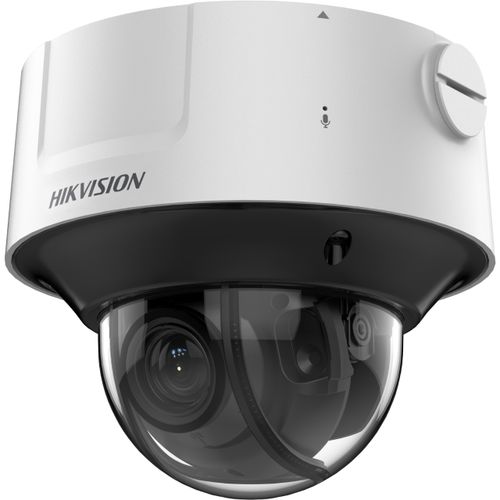

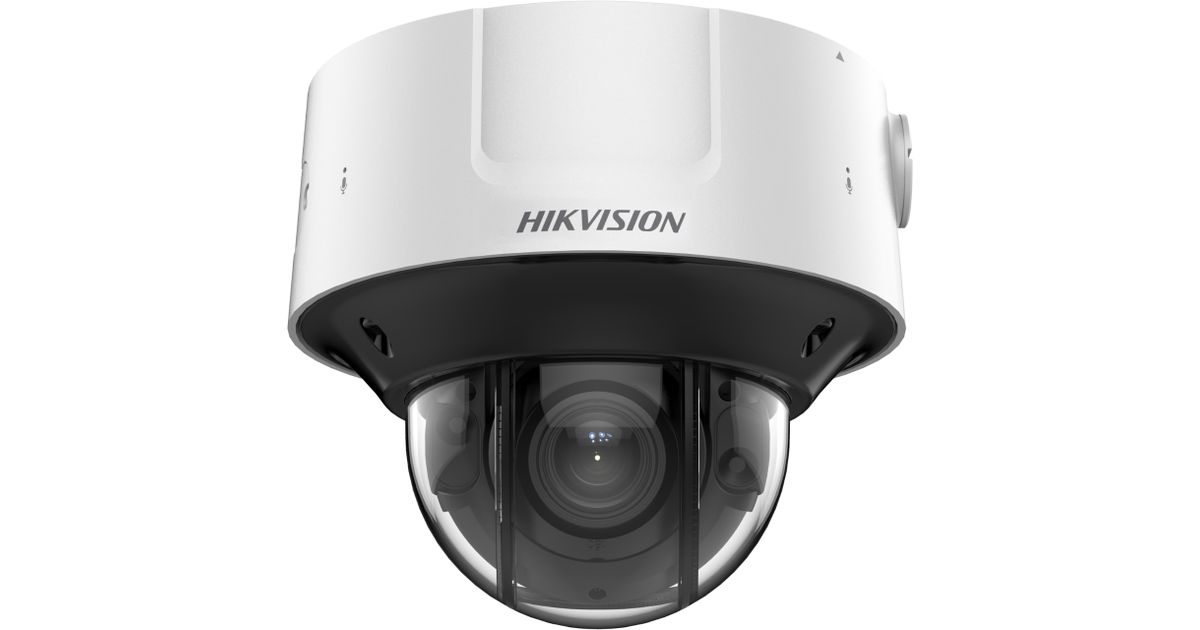

HIKVISION iDS-2CD7546G0-IZHSY(8-32mm)(C) Dome 4MP DeepinView (iDS-2CD7546G0-IZHSY(8-32mm)(C))
Manufacturer:
Hikvision Digital Technology
Product Code: 167878647
EAN: 06931847130879
MPN: IDS-2CD7546G0-IZHSY(8-32MM)(C)
Product Information
| Information | |
|---|---|
| Manufacturer | Hikvision Digital Technology |
| Product code | 167878647 |
| EAN | 06931847130879 |
| Manufacturer part number | IDS-2CD7546G0-IZHSY(8-32MM)(C) |
| Category | Alarm systems and CCTV-s |
| Features | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Protection features | Corrosion resistant |
| Supported graphics resolutions | 640 x 480 (VGA),704 x 480,1280 x 720 (HD 720),1920 x 1080 (HD 1080),2560 x 1440 |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Wide Dynamic Range (WDR) | Y |
| Day/night mode | Y |
| Alarm input/output | Y |
| Infrared (IR) cut-off filter | Y |
| Number of languages | 33 |
| Languages support | Multi |
| Dynamic range | 140 |
| Number of users | 32 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Firmware upgradeable | Y |
| Power source type | DC,PoE |
| Mounting | |
|---|---|
| Mounting type | Ceiling/Wall |
| Design | |
|---|---|
| Product colour | White |
| Form factor | Dome |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Reset button | Y |
| Camera | |
|---|---|
| Camera pan control | Y |
| Camera tilt control | Y |
| Lens viewing angle, horizontal | 114.5 - 41.8 |
| Lens viewing angle, diagonal | 49.6 - 17.3 |
| Pan range | 0 - 355 |
| Camera shutter speed | 1 - 1/100000 |
| Auto focus | Y |
| Image stabilizer | Y |
| Live view | Y |
| Ergonomics | |
|---|---|
| Angle of rotation | 355 |
| Tilt angle range | 0 - 75 |
| Lens system | |
|---|---|
| Lens viewing angle, vertical | 59.3 - 23.6 |
| Number of lenses | 1 |
| Focus | Motorized/Manual |
| Maximum aperture number | 1.73 |
| Minimum aperture number | 1.7 |
| Focal length range | 8 - 32 |
| Detect distance (wide) | 150.3 |
| Detect distance (tele) | 400 |
| Observe distance (wide) | 59.7 |
| Observe distance (tele) | 158.7 |
| Recognize distance (wide) | 30.1 |
| Recognize distance (tele) | 80 |
| Identify distance (wide) | 15 |
| Identify distance (tele) | 40 |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 1/1.8 |
| Progressive scan | Y |
| Night vision | |
|---|---|
| Night vision | Y |
| Night vision distance | 50 |
| LED type | IR |
| Infra-red wavelength | 850 |
| Graphics | |
|---|---|
| Maximum resolution | 2560 x 1440 |
| Video | |
|---|---|
| Total megapixels | 4 |
| Frame rate | 30 |
| Video streaming | Y |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness,Contrast,Saturation,Sharpness |
| Privacy masking | Y |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 32 Kbps - 8 Mbps |
| Back Light Compensation (BLC) | Y |
| Highlight Compensation (HLC) | Y |
| Region of Interest (ROI) encoding | Y |
| Media formats | |
|---|---|
| Video compression formats | H.264,H.264+,H.265,H.265+,M-JPEG |
| Headphones | |
|---|---|
| Noise reduction | Y |
| Audio | |
|---|---|
| Signal-to-Noise Ratio (SNR) | 52 |
| Voice codecs | G.711,G.722.1,G.726,MP2L2,PCM |
| Bit rate range | 8 - 320 |
| Sample rates | 8 - 48 |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| Bluetooth | N |
| Ethernet interface type | Fast Ethernet,Gigabit Ethernet |
| User access level | Administrator,Operator,User |
| Number of simultaneous live view channels | 20 |
| Security algorithms | EAP-LEAP,EAP-MD5,EAP-TLS |
| Client interoperability | iVMS-4200, Hik-Connect |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1x,IEEE 802.3at |
| I/O ports | line In, line Out |
| Protocols | |
|---|---|
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Behavior analysis | Intrusion detection,Line crossing detection,Object removal detection,Region entrance detection,Region exiting detection,Unattended baggage detection |
| Storage | |
|---|---|
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash),MicroSDHC,MicroSDXC |
| Maximum memory card size | 256 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
| Composite video out | 1 |
| Security | |
|---|---|
| Password protection | Y |
| Video motion detection | Y |
| IP address filtering | Y |
| HTTPS encryption | Y |
| Privacy protection | Y |
| Intelligent Video Surveillance (IVS) system features | Crossing line,Defocus,Face detection,Human detection,Intrusion,Region entrance detection,Region exiting detection,Scene change,Vehicle detection |
| Anti-flicker | Y |
| Heartbeat | Y |
| Mirror | Y |
| Digital watermark | Y |
| Automatic Network Replenishment (ANR) | Y |
| Power | |
|---|---|
| Power consumption (max) | 14.7 |
| Power consumption (Power over Ethernet (PoE)) | 15 |
| DC output voltage | 12,24 |
| DC output current | 1.23 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 60 |
| Storage temperature (T-T) | -30 - 60 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Weight & dimensions | |
|---|---|
| Height | 141.8 |
| Diameter | 162 |
| Weight | 1565 |
| Package weight | 2295 |
| Packaging data | |
|---|---|
| Package width | 251 |
| Package depth | 215 |
| Package height | 189 |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
