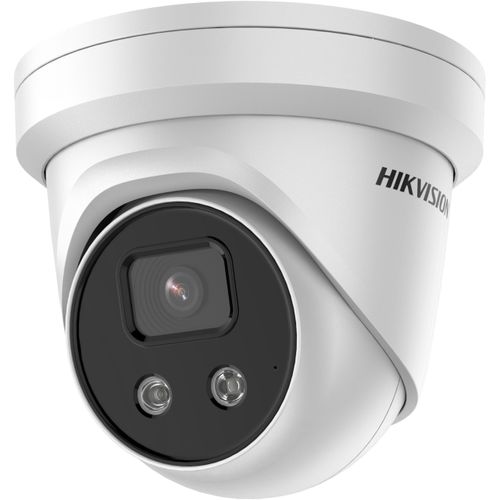

Hikvision IP Camera Powered by DARKFIGHTER DS-2CD2346G2-IU F2.8 4 MP, 2.8mm, Power over Ethernet (PoE), IP67, H.265+, Micro SD, Max. 256 GB

Manufacturer: Hikvision Digital Technology Product Code: 256142132 EAN: 06941264083597 MPN: DS-2CD2346G2-IU(2.8mm)(C)

Product Information

Information
Manufacturer	Hikvision Digital Technology
Product code	256142132
EAN	06941264083597
Manufacturer part number	DS-2CD2346G2-IU(2.8mm)(C)
Category	Alarm systems and CCTV-s

Features
Type	IP security camera
Placement supported	Indoor & outdoor
Protection features	Dust resistant,Water resistant
Supported graphics resolutions	640 x 360,640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),2688 x 1520

Keyboard
Connectivity technology	Wired

Performance
Wide Dynamic Range (WDR)	Y
Day/night mode	Y
Infrared (IR) cut-off filter	Y
Number of languages	33
Languages support	Multi
Number of users	32
Power source type	DC,PoE

Mounting
Mounting type	Ceiling/Wall

Design
Product colour	White
Form factor	Turret
International Protection (IP) code	IP67
Reset button	Y

Camera
Camera pan control	Y
Camera tilt control	Y
Lens viewing angle, horizontal	103
Lens viewing angle, diagonal	123
Pan range	0 - 360
Camera shutter speed	1/3 - 1/100000
Gain control type	Auto

Ergonomics
Angle of rotation	360
Tilt angle range	0 - 75

Lens system
Lens viewing angle, vertical	55
Number of lenses	1
Maximum aperture number	1.4
Fixed focal length	2.8
Detect distance (wide)	60
Observe distance (wide)	23.8
Recognize distance (wide)	12
Identify distance (wide)	6

Image sensor
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/3
Progressive scan	Y

Night vision
Night vision	Y
Night vision distance	30
LED type	IR

Graphics
Maximum resolution	2688 x 1520

Video
Total megapixels	4
Frame rate	30
Video streaming	Y
Noise reduction technology	3D noise reduction
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness
Privacy masking	Y
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate	32 Kbps - 8 Mbps
Back Light Compensation (BLC)	Y
Highlight Compensation (HLC)	Y
Region of Interest (ROI) encoding	Y

Media formats
Video compression formats	H.264,H.264+,H.265,H.265+,M-JPEG

Headphones
Noise reduction	Y

Audio
Signal-to-Noise Ratio (SNR)	52
Built-in microphone	Y
Voice codecs	AAC,G.711alaw,G.711ulaw,G.722.1,G.726,MP2L2,PCM
Sample rates	8 - 48

Network
Ethernet LAN	Y
Wi-Fi	N
Bluetooth	N
Ethernet interface type	Fast Ethernet
Security algorithms	TLS

Other features
Networking standards	IEEE 802.3af

Protocols
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP

Management features
Quality of Service (QoS) support	Y
Web browser	Y
Behavior analysis	Intrusion detection,Line crossing detection,Region entrance detection,Region exiting detection

Storage
Built-in HDD	N
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Maximum memory card size	256

Ports & interfaces
Ethernet LAN (RJ-45) ports	1

Security
Password protection	Y
Video motion detection	Y
Active tampering alarm	Y
IP address filtering	Y
HTTPS encryption	Y
Alert notification type	E-mail
Intelligent Video Surveillance (IVS) system features	Face detection,Scene change
Anti-flicker	Y
Heartbeat	Y
Mirror	Y

Power
Power consumption (max)	5.8
Power consumption (Power over Ethernet (PoE))	6.8
DC output voltage	12
DC output current	0.48

Operational conditions
Operating temperature (T-T)	-30 - 60
Storage temperature (T-T)	-30 - 60
Operating relative humidity (H-H)	0 - 95
Storage relative humidity (H-H)	0 - 95

Weight & dimensions
Diameter	138.3
Length	126.3
Weight	730
Package weight	1035

Packaging data
Package width	170
Package depth	170
Package height	150

Packaging content
Number of cameras	1
