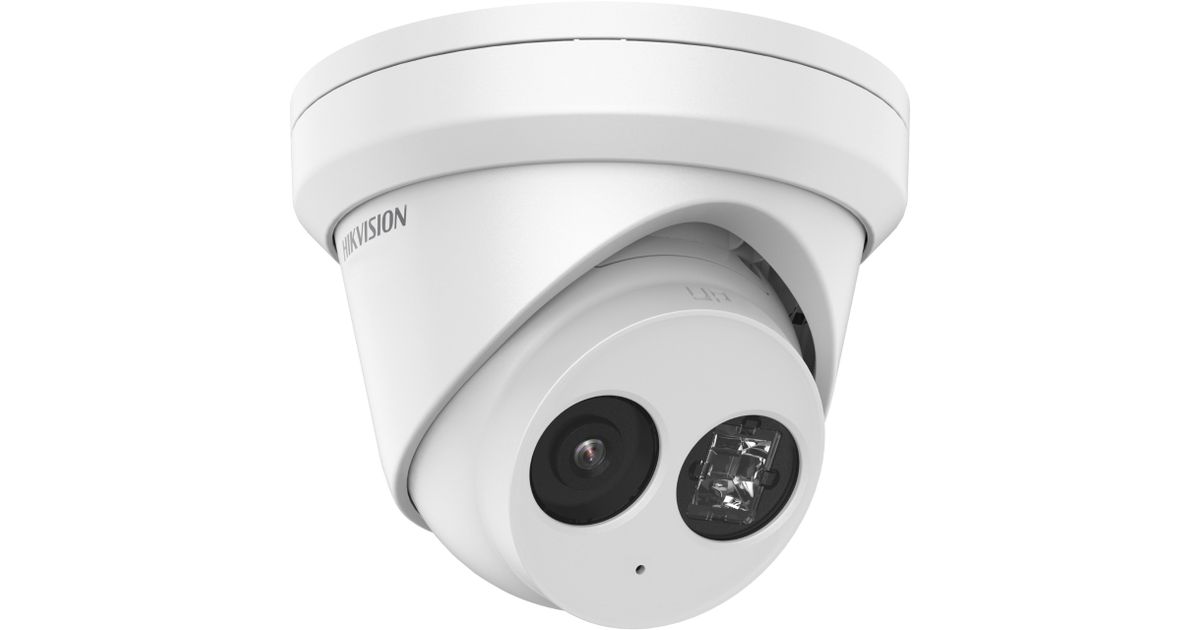

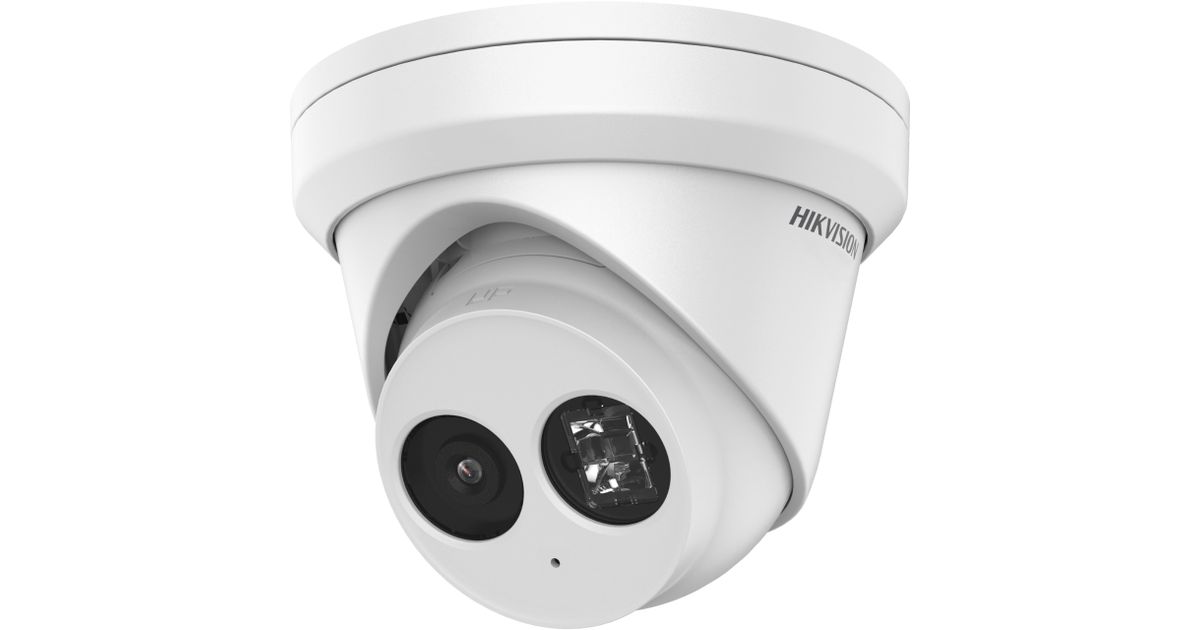

Hikvision Pro Series(EasyIP) DS-2CD2383G2-IU Netværksovervågningskamera Fast irisblænder 3840 x 2160
Manufacturer:
Hikvision Digital Technology
Product Code: 726941439
EAN: 06941264098430
MPN: DS-2CD2383G2-IU(2.8MM)
Product Information
| Information | |
|---|---|
| Manufacturer | Hikvision Digital Technology |
| Product code | 726941439 |
| EAN | 06941264098430 |
| Manufacturer part number | DS-2CD2383G2-IU(2.8MM) |
| Category | Alarm systems and CCTV-s |
| Features | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Supported graphics resolutions | 640 x 360,640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),2688 x 1520,3200 x 1800,3840 x 2160 |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Wide Dynamic Range (WDR) | Y |
| Day/night mode | Y |
| Infrared (IR) cut-off filter | Y |
| Number of languages | 33 |
| Languages support | BUL,CHI (TR),CZE,DAN,DEU,DUT,ENG,ESP,EST,FIN,FRE,GRE,HUN,ITA,JPN,KOR,LAT,LIT,NOR,POL,POR,RUM,RUS,SER,SLK,SLV,SWE,THA,TUR,UKR,VIE |
| Number of users | 32 |
| Power source type | DC,PoE |
| Mounting | |
|---|---|
| Mounting type | Ceiling/Wall |
| Design | |
|---|---|
| Product colour | White |
| Form factor | Turret |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
| Reset button | Y |
| Camera | |
|---|---|
| Camera pan control | Y |
| Camera tilt control | Y |
| Lens viewing angle, horizontal | 107 |
| Lens viewing angle, diagonal | 128 |
| Pan range | 0 - 360 |
| Camera shutter speed | 1/3 - 1/100000 |
| Ergonomics | |
|---|---|
| Angle of rotation | 360 |
| Tilt angle range | 0 - 75 |
| Lens system | |
|---|---|
| Lens viewing angle, vertical | 57 |
| Number of lenses | 1 |
| Maximum aperture number | 1.6 |
| Fixed focal length | 2.8 |
| Detect distance (wide) | 88 |
| Observe distance (wide) | 35 |
| Recognize distance (wide) | 17 |
| Identify distance (wide) | 9 |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 1/2.8 |
| Progressive scan | Y |
| Night vision | |
|---|---|
| Night vision | Y |
| Night vision distance | 30 |
| LED type | IR |
| Infra-red wavelength | 850 |
| Graphics | |
|---|---|
| Maximum resolution | 3840 x 2160 |
| Video | |
|---|---|
| Total megapixels | 8 |
| Frame rate | 30 |
| Video streaming | Y |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness,Contrast,Saturation,Sharpness |
| Privacy masking | Y |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 32 Kbps - 16 Mbps |
| Back Light Compensation (BLC) | Y |
| Highlight Compensation (HLC) | Y |
| Region of Interest (ROI) encoding | Y |
| Media formats | |
|---|---|
| Video compression formats | H.264,H.264+,H.265,H.265+,M-JPEG |
| Audio formats supported | MP3 |
| Headphones | |
|---|---|
| Noise reduction | Y |
| Audio | |
|---|---|
| Sample rate | 48 |
| Built-in microphone | Y |
| Voice codecs | AAC,G.711alaw,G.711ulaw,G.722.1,G.726,MP2L2,PCM |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| Bluetooth | N |
| Ethernet interface type | Fast Ethernet |
| Security algorithms | HTTPS,TLS |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1x,IEEE 802.3af |
| Protocols | |
|---|---|
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Behavior analysis | Intrusion detection,Line crossing detection |
| Storage | |
|---|---|
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash),MicroSDHC,MicroSDXC |
| Maximum memory card size | 256 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Password protection | Y |
| Video motion detection | Y |
| IP address filtering | Y |
| HTTPS encryption | Y |
| Intelligent Video Surveillance (IVS) system features | Face detection |
| Anti-flicker | Y |
| Heartbeat | Y |
| Mirror | Y |
| Power | |
|---|---|
| Power consumption (max) | 6 |
| Power consumption (Power over Ethernet (PoE)) | 7.5 |
| DC output voltage | 12 |
| DC output current | 0.5 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 60 |
| Storage temperature (T-T) | -30 - 60 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Weight & dimensions | |
|---|---|
| Height | 95.9 |
| Diameter | 127.3 |
| Weight | 600 |
| Package weight | 891 |
| Packaging data | |
|---|---|
| Package width | 150 |
| Package depth | 150 |
| Package height | 141 |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
