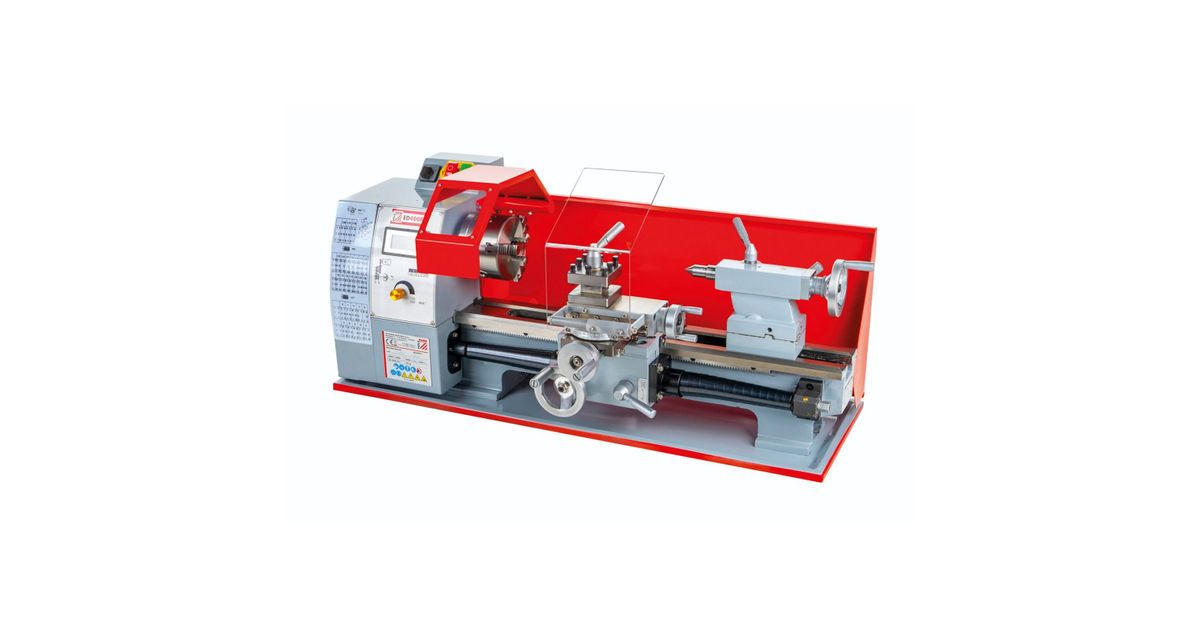

Holzmann ED400FD Bench Lathe
| Select | Supplier | Availability | Price | ETA |
|---|---|---|---|---|
| D | 1 | 1 202.81 € | ~ Tu 06.05 | |
| OV | 1 | 1 239.87 € | ~ Tu 13.05 | |
| M2 | 1 | 1 240.31 € | ~ Tu 13.05 |
Estimated delivery time of the product from selected supplier: ~ Tu 06.05
1 202.81 €
tk
Returns Policy
14-day money back guaranteeFlexible Payment Options
- Payment by invoice or e-invoice possible for individuals, companies and public authorities
- Payment via bank link - Coop, LHV, SEB, Swedbank, Luminor, Citadele
- Credit card payment
Pay later or in installments
Installment calculator
-
MTS Järelmaks
100 € - 10 000 € -
Liisi Järelmaks
10 € - 25 000 € -
Inbank järelmaks
100 € - 10 000 € -
LHV Järelmaks
50 € - 15 000 €
Monthly payment:
36.99 €
All calculations made on the calculator supplied on this site are guidelines only and are subject to confirmation at the time of finalising any transactions.
Product Information
Product Description
Holzmann ED400FD bench lathe 230 V
Compact bench lathe for machining steel, cast iron, all non-ferrous metals, aluminium, brass and also plastics or similar materials that are not hazardous to health or generate dust. Thanks to its design, can be used for a wide range of applications (thread cutting, taper turning, longitudinal and face turning).
Features:
- With lead screw for thread cutting or automatic longitudinal turning.
- Prismatic bed guides inductively hardened and precision ground
- Hardened main spindle mounted in adjustable precision taper roller bearings
- High concentricity of the main spindle
- Infinitely variable speed, easy to read via digital speed display
- Change gears supplied as standard for large thread cutting range
- V-guides of the slide guide can be adjusted backlash-free
- Powerful, low-maintenance motor with undervoltage release
- Extremely powerful, largely constant torque curve
- Right/left rotation switchable on the control panel
- Tailstock can be shifted for taper turning
- Note: Machine runs at half speed when turning backwards
Scope of delivery:
- 3-jaw chuck Ø 100mm
- Quadruple steel holder, fixed centre punch MK3
- fixed centre punch MK2
- Chip back
- Chip tray
- Change gear set
- Operating tool
Technical data:
- Motor power S1: 450 W
- Voltage: 230V / 50Hz
- Motor power S6: 630 W
- Cable length: 1.7 m
- Installation dimensions: 940 x 380 x 345 mm
- Bed width: 100 mm
- Traverse path of longitudinal slide: 376 mm
- Spindle bore: 21 mm
- Spindle cone: MK3 / MT3
- Tailstock cone: MK2 / MT2
- Max. Swing diameter cross slide: 134 mm
- Turning spindle speed: 50-2500 min-1
- Metric thread: 0.5-3 (14) mm/r
- Thread: 8-44 (10) inch
- Quill travel: 55 mm
- Cross slide travel: 80 mm
- Travel top slide: 55 mm
- Centre distance: 400 mm
- Max. Swing diameter bed: 210 mm
- Longitudinal feed: 0.089 / 0.147 / 0.198 mm/ U
- Max. tool holder: 10 mm
- Net weight: 68 kg
- Type
- Type:
- Metal Lathe
- Power Supply:
- Mains
- General
- Colour:
- Grey / Red
- Width (cm):
- 940
- Height (cm):
- 380
- Depth (cm):
- 345
- Weight (kg):
- 68,00
