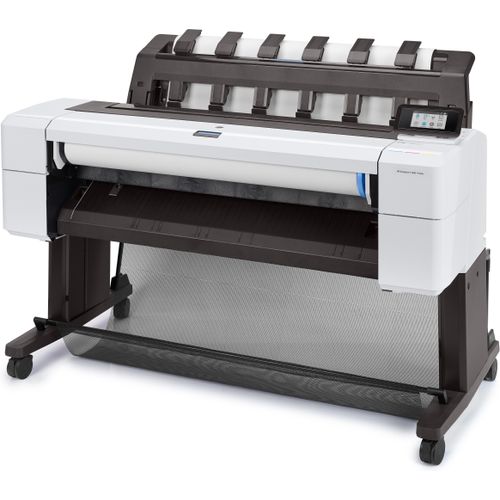

HP Designjet T1600 36-in Printer
HP Designjet T1600 36-in Printer, Thermal inkjet, 2400 x 1200 DPI, HP-GL/2, HP-RTL, PDF 1.7, PostScript 3, TIFF, Cyan, Grey, Magenta, Matte black, Photo black, Yellow, 1 universal printhead, 180 pph
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | HP |
| Product code | 2210238298 |
| EAN | 00194441078855 |
| Manufacturer part number | 3EK10A |
| Category | Large format printers & accessories |
| Features | |
|---|---|
| Print technology | Thermal inkjet |
| Colour | Yes |
| Number of print cartridges | 6 |
| Page description languages | HP-GL/2, HP-RTL, PDF 1.7, PostScript 3, TIFF |
| Printing colours | Cyan, Grey, Magenta, Matte black, Photo black, Yellow |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A4 |
| Certification | ENERGY STAR, ErP, WEEE, RoHS (EU), REACH, EPEAT |
| Harmonized System (HS) code | 84433210 |
| Printing | |
|---|---|
| Maximum resolution | 2400 x 1200 DPI |
| Print head | 1 universal printhead |
| Print speed (normal quality, A1) | 180 pph |
| Copying | |
|---|---|
| Copying | No |
| Scanning | |
|---|---|
| Scanning | No |
| Paper handling | |
|---|---|
| Maximum print size | 914 x 1219 mm |
| Paper tray media types | Bond paper, Coated paper, Glossy paper, Heavy paper, Matte paper, Satin paper, Semi-glossy paper |
| Media width (sheets) | 914 mm |
| Other features | |
|---|---|
| Media thickness | 0.5 mm |
| Weight & dimensions | |
|---|---|
| Maximum roll diameter | 14 cm |
| Width | 1390 mm |
| Depth | 760 mm |
| Height | 1080 mm |
| Weight | 82 kg |
| Package weight | 113 kg |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| USB port | No |
| Direct printing | Yes |
| Design | |
|---|---|
| Product colour | Black, White |
| Built-in display | Yes |
| Electromagnetic compatibility | Compliant with Class B requirements, including: EU (EMC Directive) |
| Storage | |
|---|---|
| Internal storage capacity | 500 GB |
| Storage media | HDD |
| Performance | |
|---|---|
| Sound power level (standby) | 32 dB |
| Sound pressure level (printing) | 42 dB |
| Safety | EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA) |
| Brand-specific features | |
|---|---|
| HP ePrint | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 100 W |
| Power consumption (off) | 0.3 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -25 - 55 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Packaging data | |
|---|---|
| Package width | 1477 mm |
| Package depth | 767 mm |
| Package height | 800 mm |
| Packaging content | |
|---|---|
| Cartridge(s) included | Yes |
Product Description
Keep the project momentum. With radically simple solutions and the easiest PDF printing[1], it's easy for everyone to get great results every time. Meet deadlines with the fastest print speed in the most compact, quiet printer.[2]
Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
