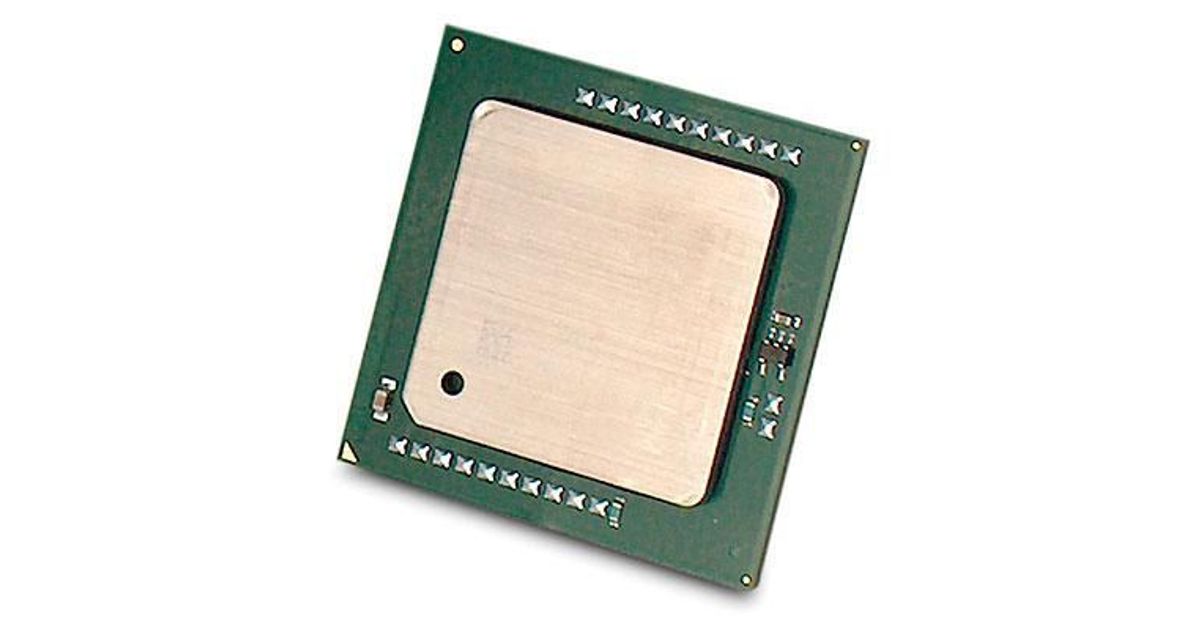

HP Intel Celeron G1840T processor 2.5 GHz 2 MB L3

Manufacturer: HP Product Code: 228162897 MPN: 773225-001

HP Intel Celeron G1840T, Intel® Celeron® G, LGA 1150 (Socket H3), 22 nm, G1840T, 2.5 GHz, 64-bit
Read more...

Product Information

Processor
Processor family	Intel® Celeron® G
Processor cores	2
Processor socket	LGA 1150 (Socket H3)
Processor lithography	22 nm
Processor model	G1840T
Processor base frequency	2.5 GHz
Processor operating modes	64-bit
Processor series	Intel Celeron Processor G1000 Series for Desktop
Processor threads	2
System bus rate	5 GT/s
Processor cache	2 MB
Processor cache type	L3
Thermal Design Power (TDP)	35 W
Stepping	C0
Bus type	DMI2
Memory bandwidth supported by processor (max)	21.3 GB/s
Maximum internal memory supported by processor	32 GB
Maximum number of PCI Express lanes	16
PCI Express slots version	3.0
PCI Express configurations	1x16, 1x8+2x4, 2x8

Design
Component for	PC

Memory
Memory channels	Dual-channel
Memory types supported by processor	DDR3-SDRAM, DDR3L
Memory clock speeds supported by processor	1333 MHz
ECC	Y

Processor special features
Memory voltage supported by processor	1.5 V
Execute Disable Bit	Y
Idle States	Y
Thermal Monitoring Technologies	Y
Supported instruction sets	SSE4.1, SSE4.2
CPU configuration (max)	1
Embedded options available	N
Graphics & IMC lithography	22 nm
Thermal solution specification	PCG 2013A
Intel® Hyper Threading Technology (Intel® HT Technology)	N
Intel® Turbo Boost Technology	N
Intel® Quick Sync Video Technology	Y
Intel® Wireless Display (Intel® WiDi)	Y
Intel® Clear Video HD Technology (Intel® CVT HD)	Y
Intel® AES New Instructions (Intel® AES-NI)	N
Enhanced Intel SpeedStep Technology	Y
Intel Trusted Execution Technology	N
Intel VT-x with Extended Page Tables (EPT)	Y
Intel® Secure Key	Y
Intel TSX-NI	N
Intel Stable Image Platform Program (SIPP)	N
Intel 64	Y
Intel Virtualization Technology (VT-x)	Y
Intel Virtualization Technology for Directed I/O (VT-d)	N
Conflict-Free processor	Y
Intel® vPro™ Platform Eligibility	N

Graphics
On-board graphics adapter	Y
On-board graphics adapter model	Intel® HD Graphics
Maximum on-board graphics adapter memory	1.7 GB
On-board graphics adapter outputs supported	DVI, DisplayPort, Embedded DisplayPort (eDP), HDMI, VGA (D-Sub)
On-board graphics adapter base frequency	200 MHz
On-board graphics adapter dynamic frequency (max)	1050 MHz
Number of displays supported (on-board graphics)	3
On-board graphics adapter DirectX version	11.1/12
On-board graphics adapter OpenGL version	4.3
On-board graphics adapter maximum resolution (DisplayPort)	2560 x 1600 pixels
On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel)	2560 x 1600 pixels
On-board graphics adapter maximum resolution (HDMI)	1920 x 1080 pixels
On-board graphics adapter maximum resolution (VGA)	1920 x 1200 pixels
On-board graphics adapter refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel)	60 Hz
On-board graphics adapter refresh rate at maximum resolution (HDMI)	60 Hz
On-board graphics adapter refresh rate at maximum resolution (VGA)	60 Hz

Features
Market segment	Desktop
Scalability	1S

Operational conditions
Tcase	66.4 °C

Performance
Compatibility	EliteDesk 800 G1 ProDesk 600 G1
