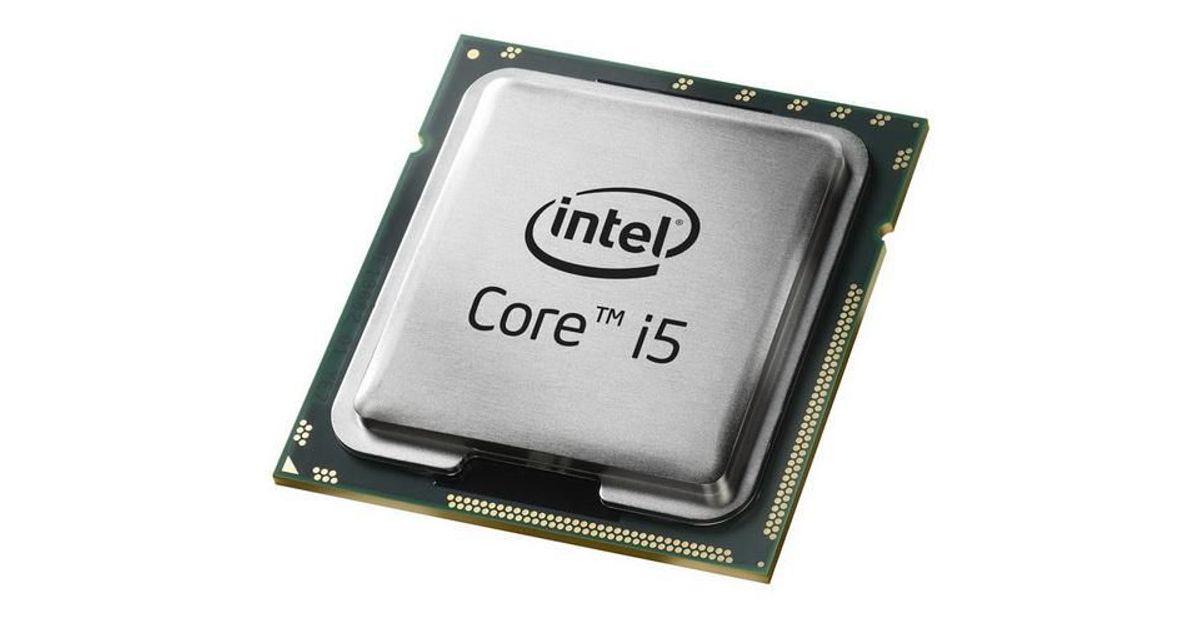

For illustrative purpose only
HP Intel Core i5-480M processor 2.66 GHz 3 MB L3
HP Intel Core i5-480M, Intel® Core™ i5, 32 nm, i5-480M, 2.66 GHz, 64-bit, Intel® Core™ i5
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | HP |
| Product code | 228162335 |
| EAN | 04054842512067 |
| Manufacturer part number | 634693-001 |
| Category | Protsessorid |
| Processor | |
|---|---|
| Processor family | Intel® Core™ i5 |
| Processor cores | 2 |
| Processor lithography | 32 nm |
| Box | N |
| Processor model | i5-480M |
| Processor base frequency | 2.66 GHz |
| Processor operating modes | 64-bit |
| Processor generation | Intel® Core™ i5 |
| Processor threads | 4 |
| System bus rate | 2.5 GT/s |
| Processor boost frequency | 2.933 GHz |
| Processor cache | 3 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 35 W |
| Stepping | K0 |
| Memory bandwidth supported by processor (max) | 17.1 GB/s |
| Maximum internal memory supported by processor | 8 GB |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x16 |
| Tjunction | 105 °C |
| Memory | |
|---|---|
| Memory channels | Dual-channel |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| ECC | N |
| Graphics | |
|---|---|
| On-board graphics adapter | Y |
| On-board graphics adapter model | Intel® HD Graphics |
| On-board graphics adapter base frequency | 500 MHz |
| On-board graphics adapter dynamic frequency (max) | 766 MHz |
| Number of displays supported (on-board graphics) | 2 |
| Processor special features | |
|---|---|
| Execute Disable Bit | Y |
| Idle States | Y |
| Thermal Monitoring Technologies | Y |
| Supported instruction sets | SSE4.1, SSE4.2 |
| Embedded options available | N |
| Graphics & IMC lithography | 45 nm |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
| Intel® Turbo Boost Technology | Y |
| Intel FDI Technology | Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Y |
| Intel Fast Memory Access | Y |
| Intel Flex Memory Access | Y |
| Intel® Smart Cache | Y |
| Intel® AES New Instructions (Intel® AES-NI) | N |
| Enhanced Intel SpeedStep Technology | Y |
| Intel Trusted Execution Technology | N |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Intel® vPro™ Platform Eligibility | N |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| Features | |
|---|---|
| Number of Processing Die Transistors | 382 M |
| Processing Die size | 81 mm² |
| Number of Graphics & IMC Die Transistors | 177 M |
| Graphics & IMC Die Size | 114 mm² |
Product Description
The previous generation Intel® Core™ i5 processor automatically allocates processing power where it's needed most,¹ performance that accelerates in response to demanding tasks. Whether you’re creating HD video, composing digital music, editing photos, or playing the coolest PC games—with the Intel Core i5 processor you can multitask with ease and be more productive than ever.
Intel® Turbo Boost Technology maximizes speed for demanding applications, dynamically accelerating performance to match your workload—more performance when you need it the most.
Intel® Hyper-Threading Technology (Intel® HT Technology)² delivers two processing threads per physical core for a total of four threads for massive computational throughput. This 4-way multi-task processing allows each core of your processor to work on two tasks at the same time. Available on Intel® Core™ i5-600 processor series.
Intel® HD Graphics provides superb visual performance for sharper images, richer color, and life-like video and audio. Available on Intel Core i5-600 processor series.
Intel® Smart Cache is a shared cache dynamically allocated to each processor core, based on workload. This efficient, optimized implementation increases the probability that each core can access data from the fast cache, significantly reducing latency to frequently used data and improving performance. Optimized for industry-leading multi-threaded games.
Intel® Turbo Boost Technology maximizes speed for demanding applications, dynamically accelerating performance to match your workload—more performance when you need it the most.
Intel® Hyper-Threading Technology (Intel® HT Technology)² delivers two processing threads per physical core for a total of four threads for massive computational throughput. This 4-way multi-task processing allows each core of your processor to work on two tasks at the same time. Available on Intel® Core™ i5-600 processor series.
Intel® HD Graphics provides superb visual performance for sharper images, richer color, and life-like video and audio. Available on Intel Core i5-600 processor series.
Intel® Smart Cache is a shared cache dynamically allocated to each processor core, based on workload. This efficient, optimized implementation increases the probability that each core can access data from the fast cache, significantly reducing latency to frequently used data and improving performance. Optimized for industry-leading multi-threaded games.
