For illustrative purpose only

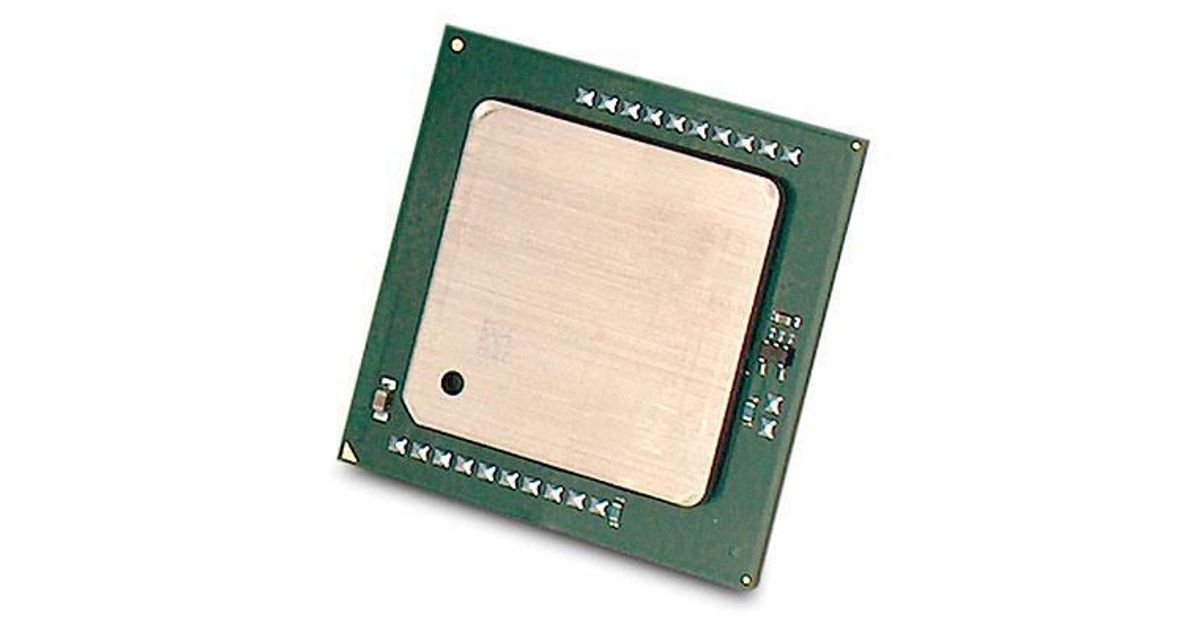

HP Intel Xeon E5506 processor 2.13 GHz 4 MB Smart Cache
HP Intel Xeon E5506, Intel® Xeon® 5000 Sequence, Socket B (LGA 1366), 45 nm, E5506, 2.13 GHz, 64-bit
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | HP |
| Product code | 228633464 |
| Manufacturer part number | 482601-001 |
| Category | Protsessorid |
| Processor | |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor cores | 4 |
| Processor socket | Socket B (LGA 1366) |
| Processor lithography | 45 nm |
| Processor model | E5506 |
| Processor base frequency | 2.13 GHz |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 5000 Series |
| Processor threads | 4 |
| System bus rate | 4.8 GT/s |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.75 - 1.35 V |
| Stepping | D0 |
| Bus type | QPI |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 19.2 GB/s |
| Maximum internal memory supported by processor | 144 GB |
| Design | |
|---|---|
| Component for | Server/workstation |
| Memory | |
|---|---|
| Memory channels | Triple-channel |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800 MHz |
| ECC | Y |
| Graphics | |
|---|---|
| On-board graphics adapter | N |
| Processor special features | |
|---|---|
| Execute Disable Bit | Y |
| Idle States | Y |
| CPU configuration (max) | 2 |
| Embedded options available | N |
| Intel® Hyper Threading Technology (Intel® HT Technology) | N |
| Intel® Turbo Boost Technology | N |
| Enhanced Intel SpeedStep Technology | Y |
| Intel Trusted Execution Technology | N |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Intel Demand Based Switching | Y |
| Intel 64 | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Features | |
|---|---|
| Market segment | Server |
| Physical Address Extension (PAE) | Y |
| Physical Address Extension (PAE) | 40 bit |
| Operational conditions | |
|---|---|
| Tcase | 76 °C |
| Performance | |
|---|---|
| Compatibility | Proliant ML150 G6 |
