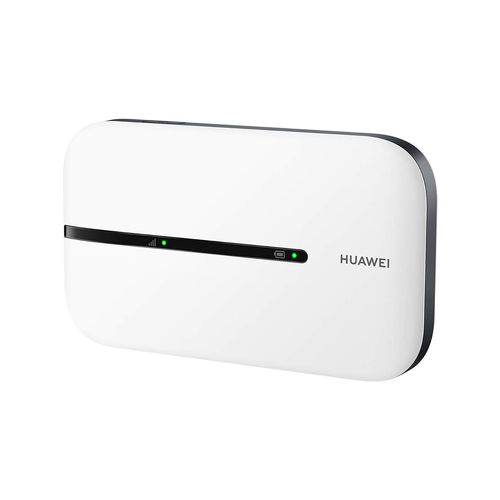

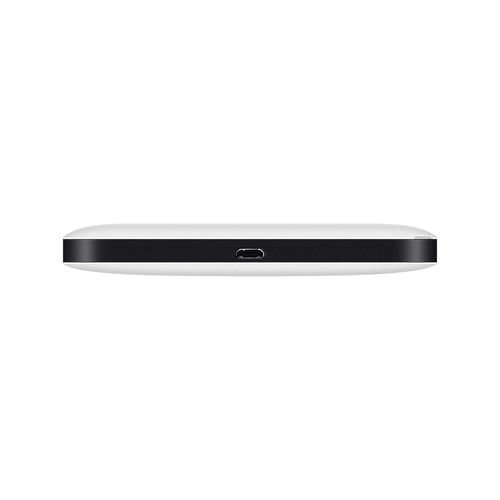

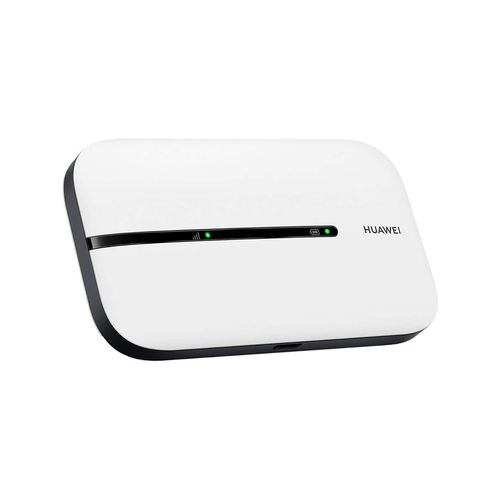

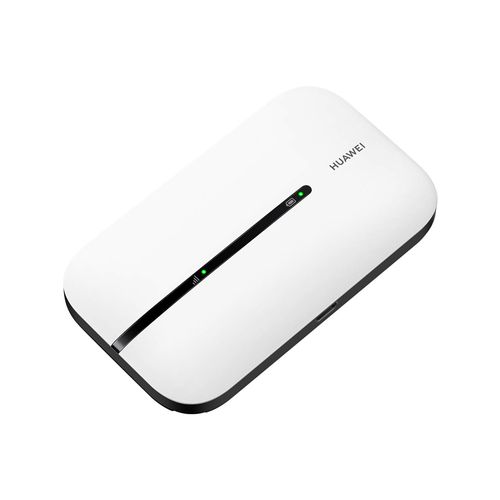

Huawei E5576-320 Cellular wireless network equipment
Huawei E5576-320, Cellular wireless network equipment, White, Plastic, Wall mounting, Portable, LTE, Status
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Huawei |
| Product code | 16493298 |
| EAN | 06901443319169 |
| Manufacturer part number | E5576-320-W |
| Design | |
|---|---|
| Device type | Cellular wireless network equipment |
| Product colour | White |
| Housing material | Plastic |
| Mounting | Wall mounting |
| Market positioning | Portable |
| Reset button | Y |
| LED indicators | LTE, Status |
| Network | |
|---|---|
| Ethernet LAN | N |
| Ethernet LAN interface type | Not available |
| Wi-Fi | Y |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| 3G standards | UMTS |
| 4G standard | LTE-FDD |
| 4G bands supported | 700,800,900,1800,2100,2600 MHz |
| Security algorithms | SSID, WEP, WPA, WPA2-PSK |
| Performance | |
|---|---|
| DHCP server | Y |
| Power source type | Battery |
| Mobile network | |
|---|---|
| Data network | 3G, 4G |
| UMTS bands supported | 900,2100 MHz |
| Number of SIM cards | 1 |
| Short Message Service (SMS) | Y |
| Ports & interfaces | |
|---|---|
| USB port | Y |
| Security | |
|---|---|
| Network address translation (NAT) | Y |
| IP address filtering | Y |
| Protocols | |
|---|---|
| DMZ support | Y |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.9 Mavericks |
| Features | |
|---|---|
| Antenna type | Internal |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| Output voltage | 5 V |
| Output current | 1 A |
| Battery | |
|---|---|
| Battery capacity | 1500 mAh |
| Battery voltage | 3.8 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 100 mm |
| Depth | 58 mm |
| Height | 14 mm |
| Weight | 71 g |
| Package weight | 117 g |
| Packaging content | |
|---|---|
| Cables included | USB |
| Packaging data | |
|---|---|
| Package width | 112 mm |
| Package depth | 74 mm |
| Package height | 38 mm |
Product Description
FDD LTE 150/50Mbps, UMTS, Wi-Fi, 802.11b/g/n, 1500mAh, 6h/300h, 71g, White
