i-tec Advance USB 3.0 Travel Docking Station HDMI or VGA
i-tec Advance USB 3.0 Travel Docking Station HDMI or VGA, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, 10,100,1000 Mbit/s, 10BASE-T,100BASE-TX,1000BASE-T, IEEE 802.3,IEEE 802.3ab,IEEE 802.3u, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | i-tec |
| Product code | 415478278 |
| EAN | 08595611700767 |
| Manufacturer part number | U3TRAVELDOCK |
| Category | Dockingstations |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| Microphone in | N |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB data transfer rates | 5000 Mbit/s |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Other operating systems supported | Android, Chrome |
| Quick start guide | Y |
| Design | |
|---|---|
| Product colour | Black |
| LED indicators | Y |
| Storage | |
|---|---|
| Card reader integrated | N |
| Performance | |
|---|---|
| Maximum digital resolution | 2048 x 1152 pixels |
| Power source type | USB |
| Software | |
|---|---|
| Windows operating systems supported | Y |
| Mac operating systems supported | Y |
| Drivers included | Y |
| Features | |
|---|---|
| Linux operating systems supported | Y |
| Weight & dimensions | |
|---|---|
| Width | 125 mm |
| Depth | 55 mm |
| Height | 17 mm |
| Weight | 78 g |
| Package weight | 185 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 164 mm |
| Package depth | 138 mm |
| Package height | 40 mm |
Product Description
The ADVANCE Series is the highest level of i-tec accessories bringing you the cutting edge technologies of products with a modern design and exclusive packaging.

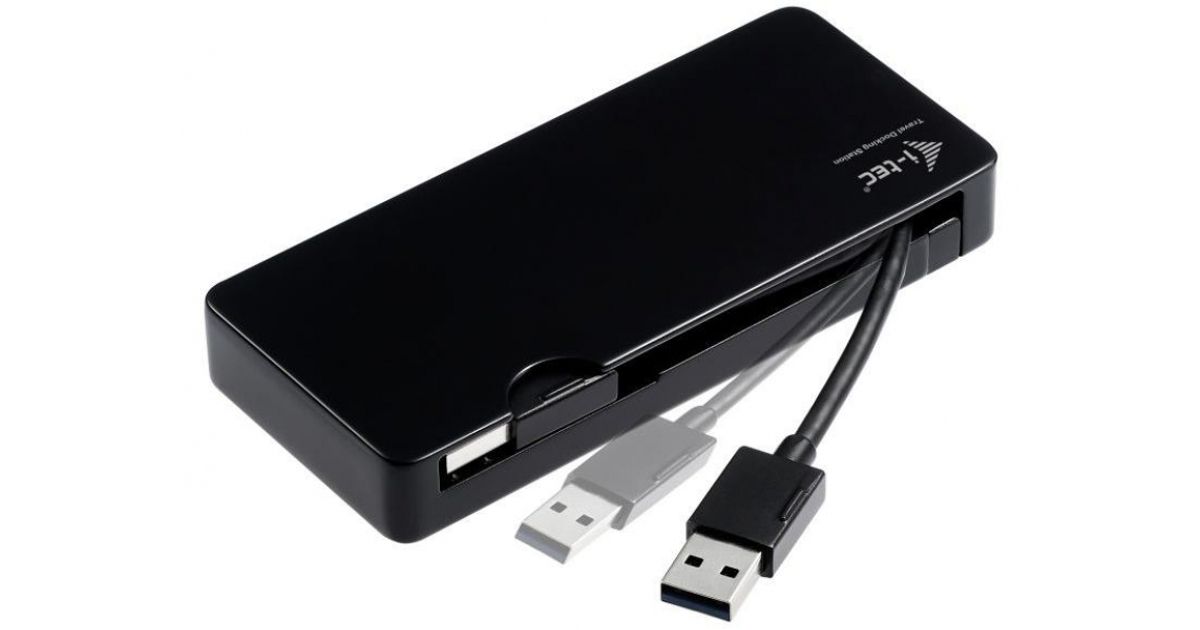

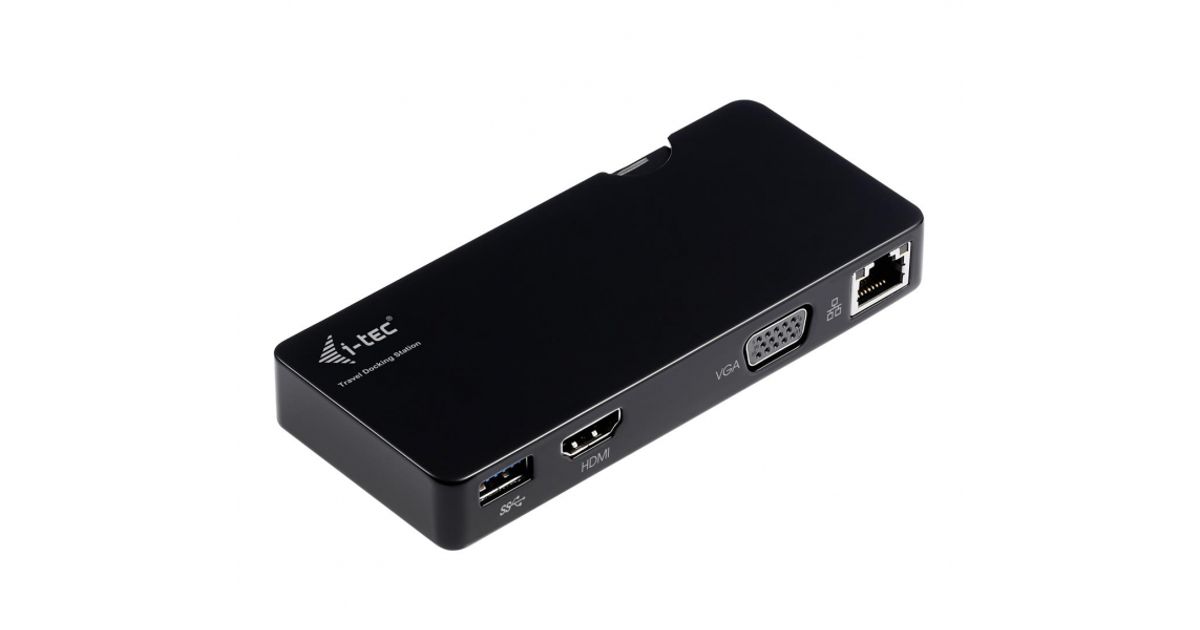

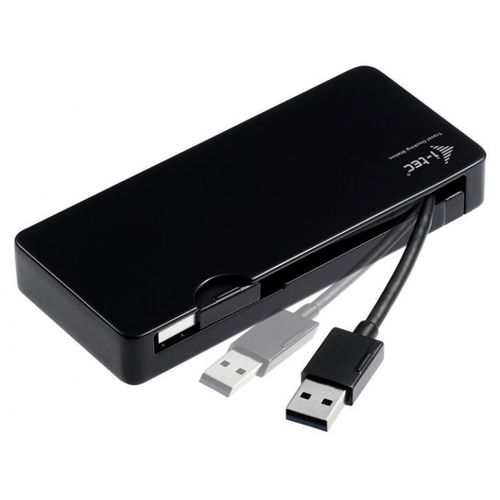

i-tec USB 3.0 Travel Docking Station thanks to its compact dimensions, low weight and absence of the power adapter is a convenient companion for traveling users. The docking station will allow you easy and faster connection of your favorite equipment to your notebook / tablet / PC using a single USB cable.

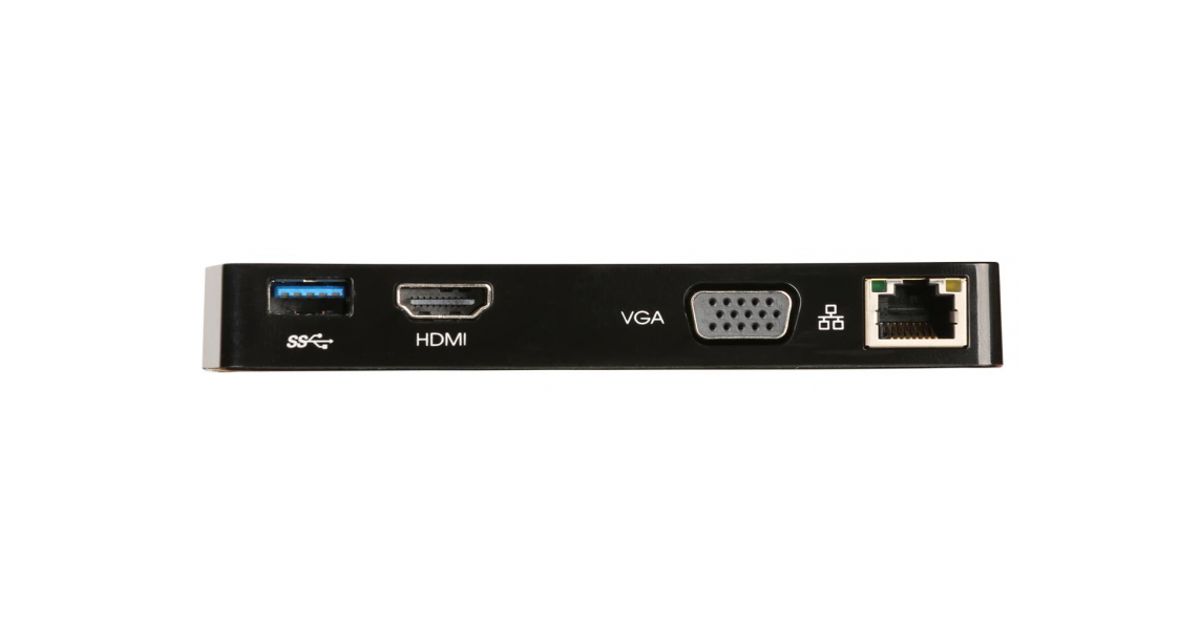

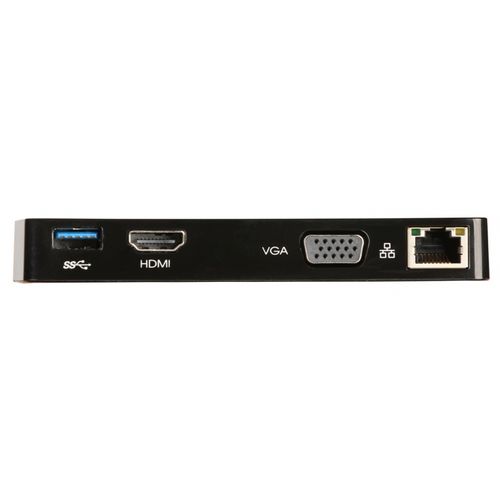

The docking station is equipped with a HDMI and a VGA port for connecting of external monitor or data projector. However, you can use only one of these ports at a time, either the HDMI or the VGA port. If you connect monitors into both ports, the docking station will automatically give preference to the HDMI monitor and the VGA monitor will be disconnected. You can use modern plasma or LCD monitors or TV sets as the display equipment. The graphic chip, which makes the heart of the docking station, supports the Full HD+ resolution (2048 x 1152 pixels).
The Gigabit Ethernet port will allow you to connect internet modem / LAN Ethernet network for faster data transfer.
You can use the USB 3.0 port for connecting a keyboard, a mouse, an external disk, a printer and other peripheries or you can use if for connection of a USB HUB providing you with more free USB ports. In this case we recommend using a USB HUB with external power supply.
The docking station is compatible with USB 2.0 equipment, it can be used with all tablets with Windows 8 and with installed drivers version 7.2 M0 or higher.
i-tec USB 3.0 Travel Docking Station thanks to its compact dimensions, low weight and absence of the power adapter is a convenient companion for traveling users. The docking station will allow you easy and faster connection of your favorite equipment to your notebook / tablet / PC using a single USB cable.
The docking station is equipped with a HDMI and a VGA port for connecting of external monitor or data projector. However, you can use only one of these ports at a time, either the HDMI or the VGA port. If you connect monitors into both ports, the docking station will automatically give preference to the HDMI monitor and the VGA monitor will be disconnected. You can use modern plasma or LCD monitors or TV sets as the display equipment. The graphic chip, which makes the heart of the docking station, supports the Full HD+ resolution (2048 x 1152 pixels).
The Gigabit Ethernet port will allow you to connect internet modem / LAN Ethernet network for faster data transfer.
You can use the USB 3.0 port for connecting a keyboard, a mouse, an external disk, a printer and other peripheries or you can use if for connection of a USB HUB providing you with more free USB ports. In this case we recommend using a USB HUB with external power supply.
The docking station is compatible with USB 2.0 equipment, it can be used with all tablets with Windows 8 and with installed drivers version 7.2 M0 or higher.
