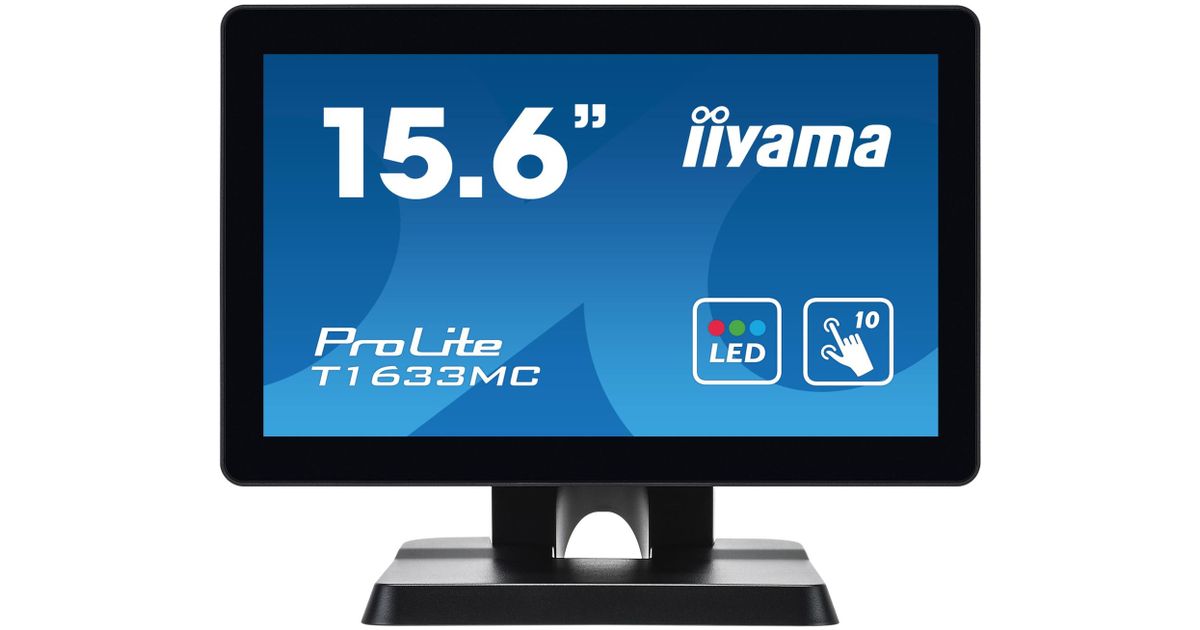

iiyama ProLite T1633MC-B1 touch screen monitor 39.6 cm (15.6") 1366 x 768 pixels Multi-touch Multi-user Black
iiyama ProLite T1633MC-B1, 39.6 cm (15.6"), 255 cd/m², TN, 16:9, 1366 x 768 pixels, LED
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | iiyama |
| Product code | 07182528 |
| EAN | 00494857011393 |
| Manufacturer part number | T1633MC-B1 |
| Category | Touchscreen monitors |
| Display | |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display brightness | 255 cd/m² |
| Display technology | TN |
| Native aspect ratio | 16:9 |
| Display resolution | 1366 x 768 pixels |
| High frequency rate | 60 Hz |
| Aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 500:1 |
| Pixel pitch | 0.252 x 0.252 mm |
| Horizontal scan range | 31.4 - 60.3 kHz |
| Vertical scan range | 56 - 75 Hz |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Display viewable area (HxV) | 344.2 x 193.6 mm |
| Separate H/V sync | Y |
| Display diagonal (metric) | 39.5 cm |
| Display number of colours | 16.78 million colours |
| Touch technology | Multi-touch |
| Touchscreen type | Multi-user |
| Design | |
|---|---|
| Display type | LED |
| Product colour | Black |
| International Protection (IP) code | IP54 |
| Cable lock slot type | Kensington |
| Features | |
|---|---|
| Supported graphics resolutions | 640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1280 x 768 (WXGA),1366 х 768 |
| HDCP | Y |
| Wall mountable | Y |
| Panel mounting interface | 100 x 100 mm |
| Certification | CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH |
| Performance | |
|---|---|
| Touchscreen technology | Projected capacitive system |
| OmniTapps Multitouch compatibility | N |
| Blue light filter | Y |
| Cable lock slot | Y |
| Glass protection | Y |
| Camera | |
|---|---|
| Built-in camera | N |
| Audio | |
|---|---|
| Built-in microphone | N |
| Ergonomics | |
|---|---|
| Number of OSD languages | 11 |
| On Screen Display (OSD) languages | Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
| Tilt angle range | 5 - 90° |
| Tiltable | Y |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 2 |
| Quick start guide | Y |
| Ports & interfaces | |
|---|---|
| USB Touch port | Y |
| HDMI | Y |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Power | |
|---|---|
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 13 kWh |
| Power consumption (typical) | 13.5 W |
| Power consumption (standby) | 2 W |
| Power consumption (off) | 2 W |
| Energy efficiency scale | A to G |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width (without stand) | 38.9 cm |
| Depth (without stand) | 31.2 cm |
| Height (without stand) | 25.4 cm |
| Weight (without stand) | 4.5 kg |
| Packaging content | |
|---|---|
| Cables included | AC, DisplayPort, HDMI, USB |
| AC adapter included | Y |
Product Description
The 15.6” LED-backlit ProLite T1633MC-B1 uses Projective Capacitive Multi-Touch Technology and is built into an eye catching bezel with edge-to-edge glass. The screen features a 1366 x 768 resolution, triple inputs (HDMI, DisplayPort, VGA) and USB Hub, comes with a rugged bezel and IP54 rated front making it suitable for demanding environments.The ProLite T1633MC-B1 is the ideal solution for in-store retail and kiosk integration.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
LED-BACKLIT
A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
LED-BACKLIT
A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.
