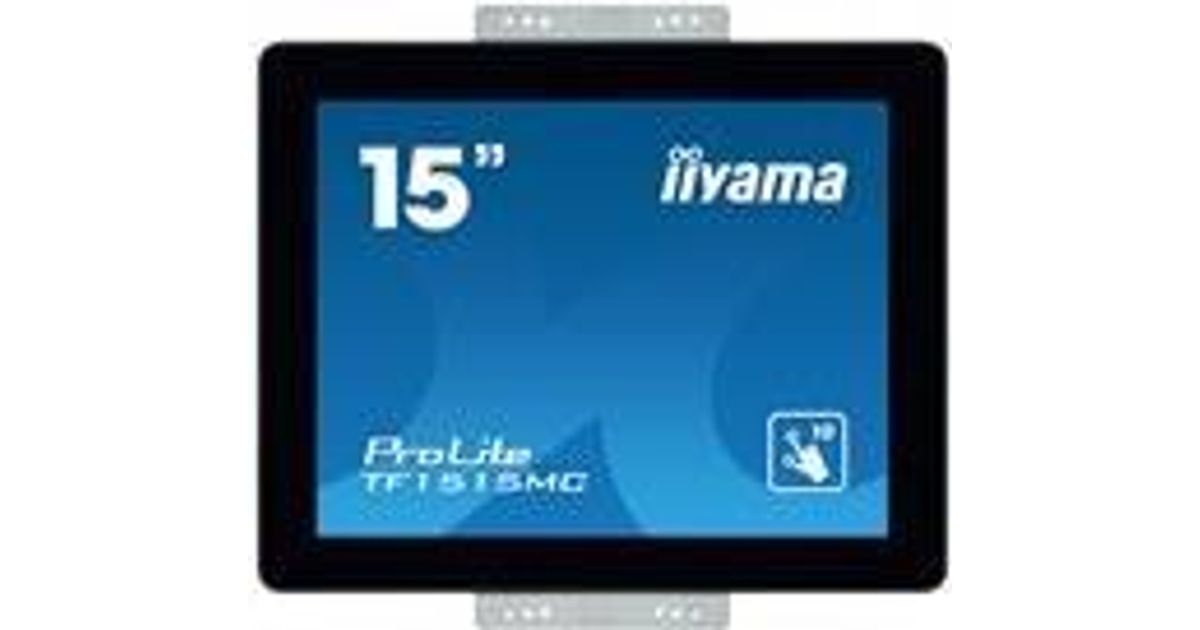

iiyama ProLite TF1515MC-B2 touch screen monitor 38.1 cm (15") 1024 x 768 pixels Multi-touch Black
iiyama ProLite TF1515MC-B2, 38.1 cm (15"), 350 cd/m², LED, 4:3, 1024 x 768 pixels, 4:3
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | iiyama |
| Product code | 212262764 |
| EAN | 04948570116751 |
| Manufacturer part number | TF1515MC-B2 |
| Category | Touchscreen monitors |
| Display | |
|---|---|
| Display diagonal | 38.1 cm (15") |
| Display brightness | 350 cd/m² |
| Display technology | LED |
| Native aspect ratio | 4:3 |
| Display resolution | 1024 x 768 pixels |
| Aspect ratio | 4:3 |
| Response time | 8 ms |
| Contrast ratio (typical) | 800:1 |
| Pixel pitch | 0.297 x 0.297 mm |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 150° |
| Display viewable area (HxV) | 304.1 x 228.1 mm |
| Touch technology | Multi-touch |
| On Screen Display (OSD) | Y |
| Design | |
|---|---|
| Product colour | Black |
| Glass thickness | 6 mm |
| International Protection (IP) code | IP65 |
| LED indicators | Y |
| Performance | |
|---|---|
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Camera | |
|---|---|
| Built-in camera | N |
| Audio | |
|---|---|
| Built-in microphone | N |
| Ergonomics | |
|---|---|
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
| Features | |
|---|---|
| HDCP | Y |
| Linux operating systems supported | Y |
| Plug and Play | Y |
| Wall mountable | Y |
| Panel mounting interface | 100 x 100 mm |
| Placement supported | Horizontal/Vertical |
| VESA mounting | Y |
| Power supply type | AC/DC |
| Certification | CB, CE, TÜV-Bauart, EAC, cULus |
| Software | |
|---|---|
| Windows operating systems supported | Y |
| Ports & interfaces | |
|---|---|
| HDMI | Y |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Power | |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| Power consumption (typical) | 16 W |
| Power consumption (standby) | 1.2 W |
| Power consumption (off) | 1.2 W |
| Energy efficiency scale | A to G |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
|---|---|
| Width (without stand) | 36.4 cm |
| Depth (without stand) | 29.1 cm |
| Height (without stand) | 4.15 cm |
| Weight (without stand) | 2.9 kg |
| Package weight | 4.6 kg |
| Packaging data | |
|---|---|
| Package width | 460 mm |
| Package depth | 175 mm |
| Package height | 470 mm |
| Packaging content | |
|---|---|
| Cables included | AC, DisplayPort, HDMI, USB |
Product Description
Open Frame PCAP 10 point touch screen equipped with touch through glass function
The ProLite TF1515MC-B2 (15 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1515MC-B2 comes equipped with external mounting brackets making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
OPEN FRAME BRACKETS
This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.
FOAM SEAL
A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
