Imou Cruiser
Manufacturer:
Dahua Technology
Product Code: 324898020
EAN: 06939554991783
MPN: IPC-S22FP-0360B-imou
Imou Cruiser, IP security camera, Outdoor, Wired & Wireless, 120 m, External, CE, FCC
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Dahua Technology |
| Product code | 324898020 |
| EAN | 06939554991783 |
| Manufacturer part number | IPC-S22FP-0360B-imou |
| Category | Alarm systems and CCTV-s |
| Features | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Antenna type | External |
| Certification | CE, FCC |
| Protection features | Dust resistant, Waterproof |
| Weatherproof | Y |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Harmonized System (HS) code | 85258900 |
| Keyboard | |
|---|---|
| Connectivity technology | Wired & Wireless |
| Network | |
|---|---|
| Maximum operating distance | 120 m |
| Ethernet LAN | Y |
| Wi-Fi | Y |
| Bluetooth | N |
| Ethernet interface type | Fast Ethernet |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Performance | |
|---|---|
| Day/night mode | Y |
| Remote viewing | Y |
| Power source type | DC |
| Other features | |
|---|---|
| Antennas quantity | 2 |
| Mounting | |
|---|---|
| Mounting type | Ceiling/Wall/Pole |
| Design | |
|---|---|
| Product colour | Black, White |
| Form factor | Dome |
| LED indicators | Y |
| Housing material | Plastic |
| International Protection (IP) code | IP66 |
| Reset button | Y |
| Camera | |
|---|---|
| Camera pan control | Y |
| Camera tilt control | Y |
| Pan range | 0 - 355° |
| Zoom capability | Y |
| Digital zoom | 16x |
| Ergonomics | |
|---|---|
| Tilt angle range | 0 - 90° |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Y |
| Lens system | |
|---|---|
| Observe distance | 120 m |
| Fixed focal length | 3.6 mm |
| Night vision | |
|---|---|
| Night vision | Y |
| Night vision distance | 30 m |
| LED type | IR |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Video | |
|---|---|
| Total megapixels | 2 MP |
| Frame rate | 30 fps |
| Media formats | |
|---|---|
| Video compression formats | H.264, H.265 |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Audio system | 2-way |
| Built-in microphone | Y |
| Protocols | |
|---|---|
| Supported network protocols | ONVIF |
| Mouse | |
|---|---|
| Frequency band | 2.4 GHz |
| Storage | |
|---|---|
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Y |
| Security | |
|---|---|
| Video motion detection | Y |
| Alert notification type | Text alert message |
| Intelligent Video Surveillance (IVS) system features | Missing object |
| Power | |
|---|---|
| Power consumption (typical) | 5.32 W |
| DC output voltage | 12 |
| DC output current | 1 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| System requirements | |
|---|---|
| Mobile operating systems supported | Android, iOS |
| Weight & dimensions | |
|---|---|
| Width | 138.4 mm |
| Depth | 121.7 mm |
| Height | 257.5 mm |
| Weight | 565 g |

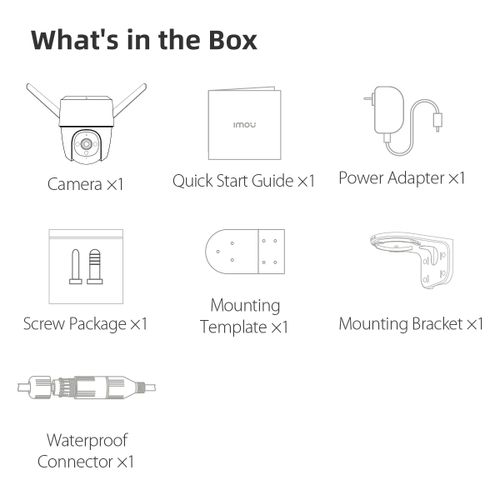

| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Manual | Y |
| AC adapter included | Y |
| Packaging data | |
|---|---|
| Mounting brackets included | Y |
| Screws included | Y |
Product Description
The 2MP Full HD Imou Cruiser leaves no corner of your frontyard or back yard uncovered due to the PTZ function; 355 degrees pan, 90 degrees tilt and 16x digital zoom. The Cruiser features 4 night vision modes, including Smart Full Color night vision. With Smart Full Color night vision the camera shows a grayscale image using infrared light, when detecting a person the build-in spotlights activate to display images in color. This outdoor camera features Smart Tracking and AI human detection, when a person is identified the camera will automatically track the persons movements. The Imou Cruiser has an IP66 certificate which makes the camera suitable for any weather condition. This security camera also features two-way talk; hear and respond to what is observed. Connect the Cruiser 2MP via WiFi (2.4 GHz, Dual Antenna) or Ethernet.
Resolution
The 2MP (Full HD – 1080P) lens offers a great image quality to monitor a front yard, backyard or garage. The H.265 image compression technique that is used ensures high-quality recordings and streams take up relatively little space and thus require less bandwidth. In this way, the available storage space and bandwidth can be used optimally. The Imou Cruiser security camera uses 2.4 GHz WiFi with a dual antenna for improved range. Besides wireless connection, this camera has an Ethernet port for wired connection.
Smart Tracking and Night vision
The Cruiser 2MP outdoor camera accurately identifies people with the AI human detection feature, preventing false alarms from for example animals or falling leaves. When detected, the camera follows the person thanks to the PTZ function with Smart Tracking. In combination with a 110dB siren and flashing spotlights this security camera will scare every unwanted visitor
away. This 2 megapixel camera also offers great security at night due to the 4 night vision modes;

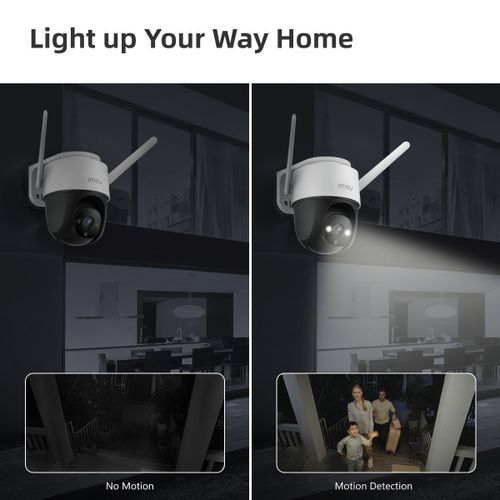

1. Smart night vision: When it gets dark, the camera uses infrared to display images in grayscale. As soon as the camera detects a person, the built-in spotlights are activated for recording in color.
2. Color Night Vision: When it gets dark, the camera activates its built-in spotlights for images in color.
3. Infrared night vision: when it gets dark, the camera uses infrared for grayscale images.
4. Night Vision Of
Installation
Download the Imou Life app (iOS, Android or Windows) and create an Imou account. After logging in, select the "+" sign at the top right of the Imou app to add a camera. Scan the QR code on the camera and follow the steps in the app. Then select the WiFi network (2.4 GHz) and make sure the camera is close to the router during the installation process. The camera is ready for use in no time! For recording images, you can opt for the Imou Cloud service, but also for local storage by using a MicroSD card or a Imou NVR.
