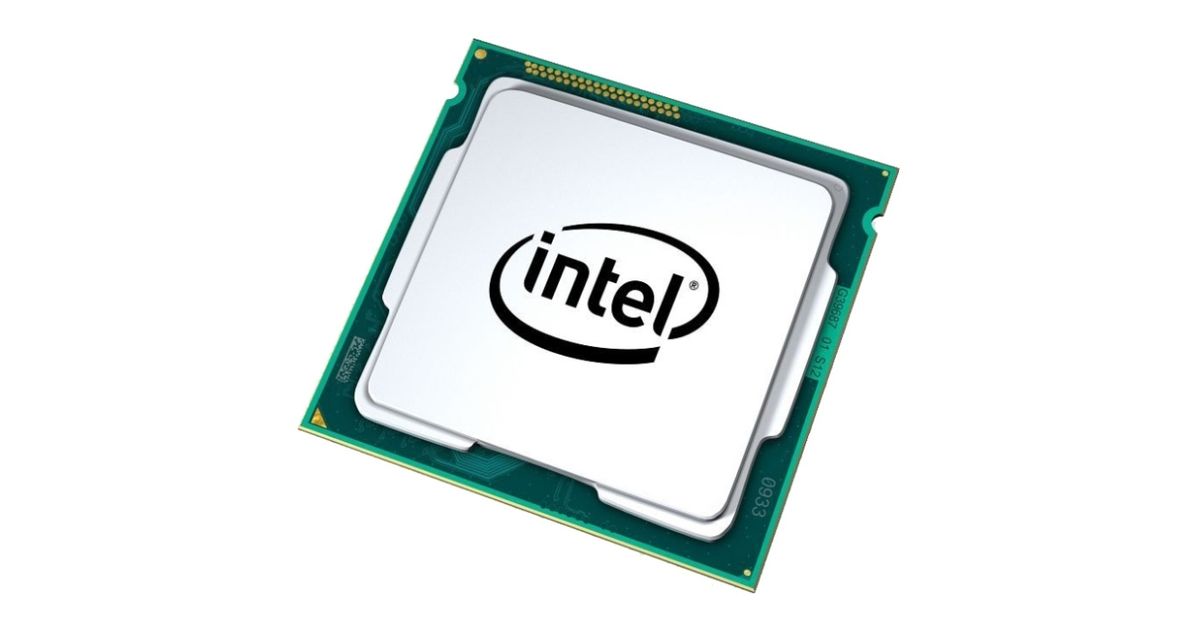

For illustrative purpose only
Intel Celeron G1820 processor 2.7 GHz 2 MB Smart Cache
Intel Celeron G1820, Intel® Celeron® G, LGA 1150 (Socket H3), 22 nm, Intel, G1820, 2.7 GHz
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Intel |
| Product code | 171588806 |
| EAN | 05415247278627 |
| Manufacturer part number | CM8064601483405 930400 |
| Category | Processors |
| Processor | |
|---|---|
| Processor family | Intel® Celeron® G |
| Processor cores | 2 |
| Processor socket | LGA 1150 (Socket H3) |
| Processor lithography | 22 nm |
| Box | N |
| Cooler included | N |
| Processor manufacturer | Intel |
| Processor model | G1820 |
| Processor base frequency | 2.7 GHz |
| Processor operating modes | 64-bit |
| Processor threads | 2 |
| System bus rate | 5 GT/s |
| Processor cache | 2 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 53 W |
| Stepping | C0 |
| Bus type | DMI |
| Memory bandwidth supported by processor (max) | 21.3 GB/s |
| Processor codename | Haswell |
| Maximum internal memory supported by processor | 32 GB |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Processor cache | 2048 KB |
| Design | |
|---|---|
| Component for | PC |
| Product type | Processor |
| Processor special features | |
|---|---|
| Processor ARK ID | 78955 |
| Execute Disable Bit | Y |
| Idle States | Y |
| Thermal Monitoring Technologies | Y |
| Supported instruction sets | SSE4.1, SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | Y |
| Graphics & IMC lithography | 22 nm |
| Thermal solution specification | PCG 2013C |
| Intel® Hyper Threading Technology (Intel® HT Technology) | N |
| Intel® Turbo Boost Technology | N |
| Intel® Quick Sync Video Technology | Y |
| Intel® Smart Cache | Y |
| Intel® AES New Instructions (Intel® AES-NI) | N |
| Enhanced Intel SpeedStep Technology | Y |
| Intel Trusted Execution Technology | N |
| Intel® Transactional Synchronization Extensions | N |
| Intel Enhanced Halt State | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Intel® Secure Key | Y |
| Intel TSX-NI | N |
| Intel Stable Image Platform Program (SIPP) | N |
| Intel 64 | Y |
| Intel Secure Key Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Virtualization Technology (VT-x) | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | N |
| Intel TSX-NI version | 0.00 |
| Conflict-Free processor | Y |
| Intel® Optane™ Memory Ready | N |
| Intel® vPro™ Platform Eligibility | N |
| Processor package size | 37.5 x 37.5 mm |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Memory | |
|---|---|
| Memory channels | Dual-channel |
| Memory types supported by processor | DDR3-SDRAM, DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1333 MHz |
| ECC | Y |
| Supported memory types | DDR3-SDRAM, DDR3L-SDRAM |
| Maximum internal memory | 32 GB |
| Graphics | |
|---|---|
| On-board graphics adapter | Y |
| On-board graphics adapter model | Intel® HD Graphics |
| Maximum on-board graphics adapter memory | 1.7 GB |
| On-board graphics adapter outputs supported | Embedded DisplayPort (eDP), DisplayPort, HDMI, DVI, VGA (D-Sub) |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter dynamic frequency (max) | 1050 MHz |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics adapter DirectX version | 11.1/12 |
| On-board graphics adapter OpenGL version | 4.3 |
| On-board graphics adapter maximum resolution (DisplayPort) | 2560 x 1600 pixels |
| On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel) | 2560 x 1600 pixels |
| On-board graphics adapter maximum resolution (HDMI) | 1920 x 1080 pixels |
| On-board graphics adapter maximum resolution (VGA) | 1920 x 1200 pixels |
| On-board graphics adapter refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 60 Hz |
| On-board graphics adapter refresh rate at maximum resolution (HDMI) | 60 Hz |
| On-board graphics adapter refresh rate at maximum resolution (VGA) | 60 Hz |
| Maximum graphics adapter memory | 1.7 GB |
| Features | |
|---|---|
| Market segment | Desktop |
| Bandwidth | 5 MB/s |
| Scalability | 1S |
| Harmonized System (HS) code | 8542310001 |
| Performance | |
|---|---|
| Export Control Classification Number (ECCN) | 3A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Maximum internal memory | 32768 MB |
| Operational conditions | |
|---|---|
| Tcase | 72 °C |
| Packaging data | |
|---|---|
| Package width | 81 mm |
| Package depth | 114 mm |
| Package height | 102 mm |
| Package type | Retail box |
| Weight & dimensions | |
|---|---|
| Package weight | 338 g |
| Other features | |
|---|---|
| Launch date | Q1'14 |
| Status | Launched |
| Maximum memory | 32 GB |
| Last change | 63903513 |
| Product family | Intel Celeron Processor |
| Graphics output | eDP/DP/HDMI/DVI/VGA |
| Other information | |
|---|---|
| Bus bandwidth | 5 |
| Bus type units | GT/s |
| Maximum resolution & refresh rate (DisplayPort) | 2560x1600@60Hz |
| Maximum resolution & refresh rate (HDMI) | 1920x1080@60Hz |
| Maximum resolution & refresh rate (Integrated Flat Panel) | 2560x1600@60Hz |
| Maximum resolution & refresh rate (VGA) | 1920x1200@60Hz |
| Number of graphics cores | 10 |
| Processor brand name | Intel Celeron |
| Bus speed | 5 GT/s |
Product Description
Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
Intel® VT-x with Extended Page Tables (EPT)
Intel® VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel® Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.
Intel® 64
Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.
Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
Intel® VT-x with Extended Page Tables (EPT)
Intel® VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel® Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.
Intel® 64
Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.
Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.
