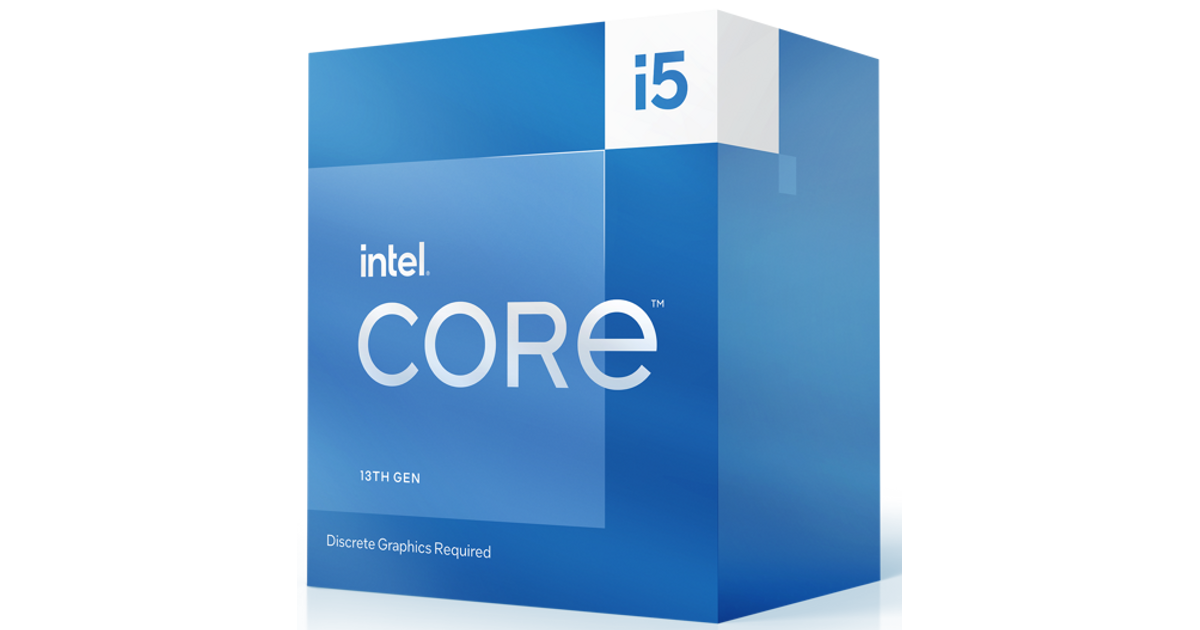

For illustrative purpose only
Intel Core i5-13400F processor 20 MB Smart Cache Box
Intel Core i5-13400F, Intel® Core™ i5, LGA 1700, Intel, i5-13400F, 64-bit, 13th gen Intel® Core™ i5
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Intel |
| Product code | 427822705 |
| EAN | 00735858528337 |
| Manufacturer part number | BX8071513400F |
| Category | Processors |
| Processor | |
|---|---|
| Processor family | Intel® Core™ i5 |
| Processor cores | 10 |
| Processor socket | LGA 1700 |
| Box | Y |
| Processor manufacturer | Intel |
| Processor model | i5-13400F |
| Processor operating modes | 64-bit |
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor threads | 16 |
| Performance cores | 6 |
| Efficient cores | 4 |
| Processor boost frequency | 4.6 GHz |
| Performance-core boost frequency | 4.6 GHz |
| Performance-core base frequency | 2.5 GHz |
| Efficient-core boost frequency | 3.3 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Processor cache | 20 MB |
| Processor cache type | Smart Cache |
| Processor base power | 65 W |
| Maximum turbo power | 148 W |
| Maximum number of DMI lanes | 8 |
| Processor codename | Raptor Lake |
| Maximum internal memory supported by processor | 128 GB |
| Maximum number of PCI Express lanes | 20 |
| PCI Express slots version | 4.0, 5.0 |
| PCI Express configurations | 1x16+1x4, 2x8+1x4 |
| Tjunction | 100 °C |
| Memory | |
|---|---|
| Memory channels | Dual-channel |
| Memory types supported by processor | DDR4-SDRAM, DDR5-SDRAM |
| Memory bandwidth (max) | 76.8 GB/s |
| Graphics | |
|---|---|
| On-board graphics adapter | N |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Not available |
| Discrete graphics adapter model | Not available |
| Processor special features | |
|---|---|
| Execute Disable Bit | Y |
| Idle States | Y |
| Thermal Monitoring Technologies | Y |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | N |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Y |
| Enhanced Intel SpeedStep Technology | Y |
| Intel® Speed Shift Technology | Y |
| Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 | Y |
| Intel® Control-flow Enforcement Technology (CET) | Y |
| Intel® Thread Director | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Intel® Secure Key | Y |
| Intel® OS Guard | Y |
| Intel 64 | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel Turbo Boost Max Technology 3.0 | N |
| Intel® Boot Guard | Y |
| Intel® Deep Learning Boost (Intel® DL Boost) | Y |
| Intel® Volume Management Device (VMD) | Y |
| Mode-based Execute Control (MBE) | Y |
| Intel® Standard Manageability (ISM) | Y |
| Processor package size | 45 x 37.5 mm |
| Features | |
|---|---|
| Market segment | Desktop |
| Use conditions | PC/Client/Tablet |
| Scalability | 1S |
| Direct Media Interface (DMI) Revision | 4.0 |
| Harmonized System (HS) code | 8542310001 |
| Performance | |
|---|---|
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
| Other features | |
|---|---|
| L2 cache | 9728 KB |
| Launch date | Q1'23 |
Product Description
Intel® Gaussian & Neural Accelerator
Intel® Gaussian & Neural Accelerator (GNA) is an ultra-low power accelerator block designed to run audio and speed-centric AI workloads. Intel® GNA is designed to run audio based neural networks at ultra-low power, while simultaneously relieving the CPU of this workload.
Intel® Deep Learning Boost (Intel® DL Boost)
A new set of embedded processor technologies designed to accelerate AI deep learning use cases. It extends Intel AVX-512 with a new Vector Neural Network Instruction (VNNI) that significantly increases deep learning inference performance over previous generations.
Intel® Speed Shift Technology
Intel® Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency.
Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
Intel® 64
Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.
Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.
Thermal Monitoring Technologies
Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor (DTS) detects the core's temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits.
Intel® Volume Management Device (VMD)
Intel® Volume Management Device (VMD) provides a common, robust method of hot plug and LED management for NVMe-based solid state drives.
