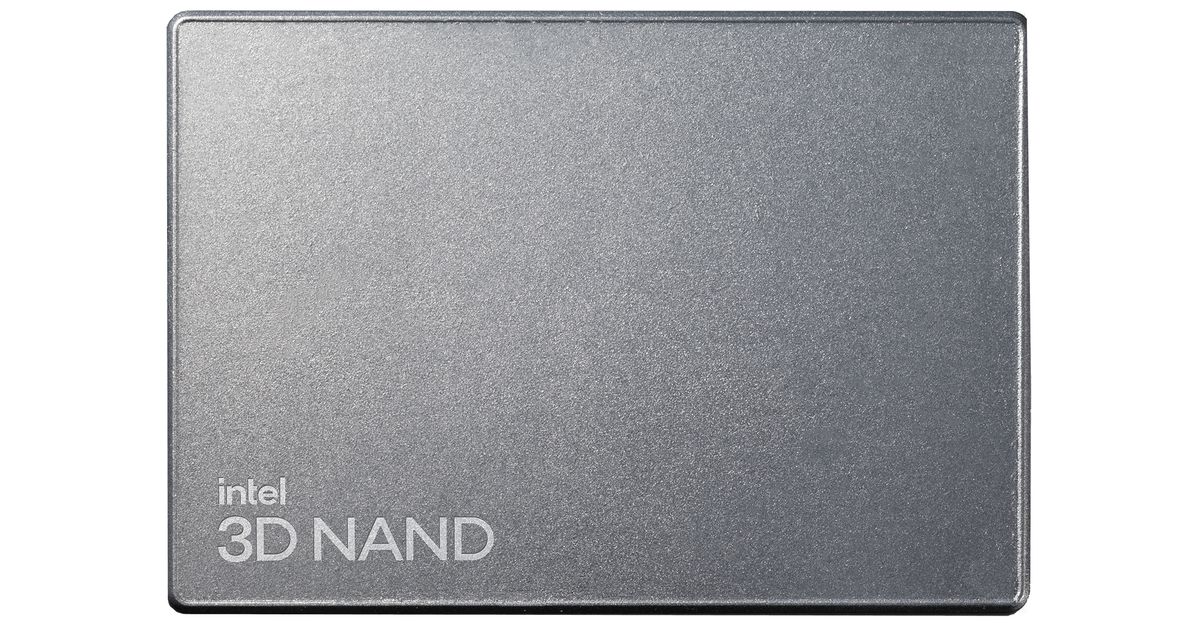

Intel D7 P5520 U.2 3840 GB PCI Express 4.0 TLC 3D NAND NVMe
Intel D7 P5520, 3840 GB, U.2
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Intel |
| Product code | 107230367 |
| EAN | 00735858502597 |
| Manufacturer part number | SSDPF2KX038T1N1 |
| Category | SSD S-ATA |
| Features | |
|---|---|
| SSD form factor | U.2 |
| Memory type | TLC 3D NAND |
| NVMe | Y |
| Hardware encryption | Y |
| Random read (100% span) | 1000000 IOPS |
| Random write (100% span) | 200000 IOPS |
| End-to-End Data Protection | Y |
| Enhanced Power Loss Data Protection technology | Y |
| SSD temperature monitoring | Y |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Use conditions | Server/Enterprise |
| Harmonized System (HS) code | 84717070 |
| Storage | |
|---|---|
| SSD capacity | 3840 GB |
| Ports & interfaces | |
|---|---|
| Interface | PCI Express 4.0 |
| Design | |
|---|---|
| Component for | Server/workstation |
| Network | |
|---|---|
| Security algorithms | 256-bit AES |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 2000000 h |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G162706L1 |
| Power | |
|---|---|
| Power consumption (idle) | 5 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Maximum operating temperature | 70 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 3.13 G |
| Weight & dimensions | |
|---|---|
| Weight | 165 g |
| Memory | |
|---|---|
| Internal memory type | PCIe 4.0 x4, NVMe |
| Processor | |
|---|---|
| Processor family | Intel SSD D7-P5520 |
| Other features | |
|---|---|
| Power consumption (active) | 15 W |
| Launch date | Q2'22 |
| SSD endurance rating | 7.0 PBW |
| SSD shock | 1000G,0.5ms |
| Sequential reading | 6700 MB/s |
| Sequential writing speed | 3600 MB/s |
| Status | Launched |
Product Description
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
