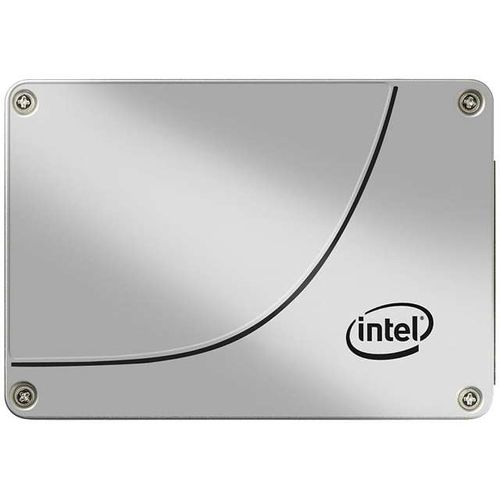

Intel DC S3610 2.5" 400 GB Serial ATA III MLC
Intel DC S3610, 400 GB, 2.5", 500 MB/s, 6 Gbit/s
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Intel |
| Product code | 12309358 |
| EAN | 05032037074223 |
| Manufacturer part number | SSDSC2BX400G401 |
| Category | SSD S-ATA |
| Features | |
|---|---|
| SSD form factor | 2.5" |
| Memory type | MLC |
| Data transfer rate | 6 Gbit/s |
| Read speed | 500 MB/s |
| Write speed | 450 MB/s |
| Random read (100% span) | 84000 IOPS |
| Random write (100% span) | 25000 IOPS |
| Read latency | 55 µs |
| Write latency | 66 µs |
| S.M.A.R.T. support | Y |
| TRIM support | Y |
| End-to-End Data Protection | Y |
| Enhanced Power Loss Data Protection technology | Y |
| SSD temperature monitoring | Y |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Market segment | Server |
| SSD usage tag | Data center |
| SSD ARK ID | 86641 |
| Storage | |
|---|---|
| SSD capacity | 400 GB |
| Ports & interfaces | |
|---|---|
| Interface | Serial ATA III |
| Processor | |
|---|---|
| Lithography | 20 nm |
| Processor lithography | 20 nm |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 2000000 h |
| Internal | Y |
| Brand-specific features | |
|---|---|
| Intel High Endurance Technology (HET) | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 3.13 G |
| Weight & dimensions | |
|---|---|
| Height | 7 mm |
| Other features | |
|---|---|
| Drive capacity | 400 GB |
| Launch date | Q1'15 |
| Product brief URL | http://www.intel.com/content/www/us/en/solid-state-drives/ssd-dc-s3610-brief.html |
| SSD hardware encryption | AES 256 bit |
| SSD power consumption (active) | 4.3 W |
| SSD power consumption (idle) | 0.6 W |
| SSD shock | 1,000 G/0.5 ms |
| SSD weight | 82 g |
| Sequential reading | 550 MB/s |
| Sequential writing speed | 400 MB/s |
| Status | Discontinued |
| Last change | 63903513 |
| Product family | Data center SSD |
| Product series | Intel DC S3610 |
| Product codename | Haleyville |
Product Description
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
High Endurance Technology (HET)
High Endurance Technology (HET) in SSD's combines Intel® NAND Flash Memory silicon enhancements and SSD system management techniques to help extend the endurance of the SSD. Endurance is defined as the amount of data that can be written to an SSD during its lifetime.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
High Endurance Technology (HET)
High Endurance Technology (HET) in SSD's combines Intel® NAND Flash Memory silicon enhancements and SSD system management techniques to help extend the endurance of the SSD. Endurance is defined as the amount of data that can be written to an SSD during its lifetime.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
