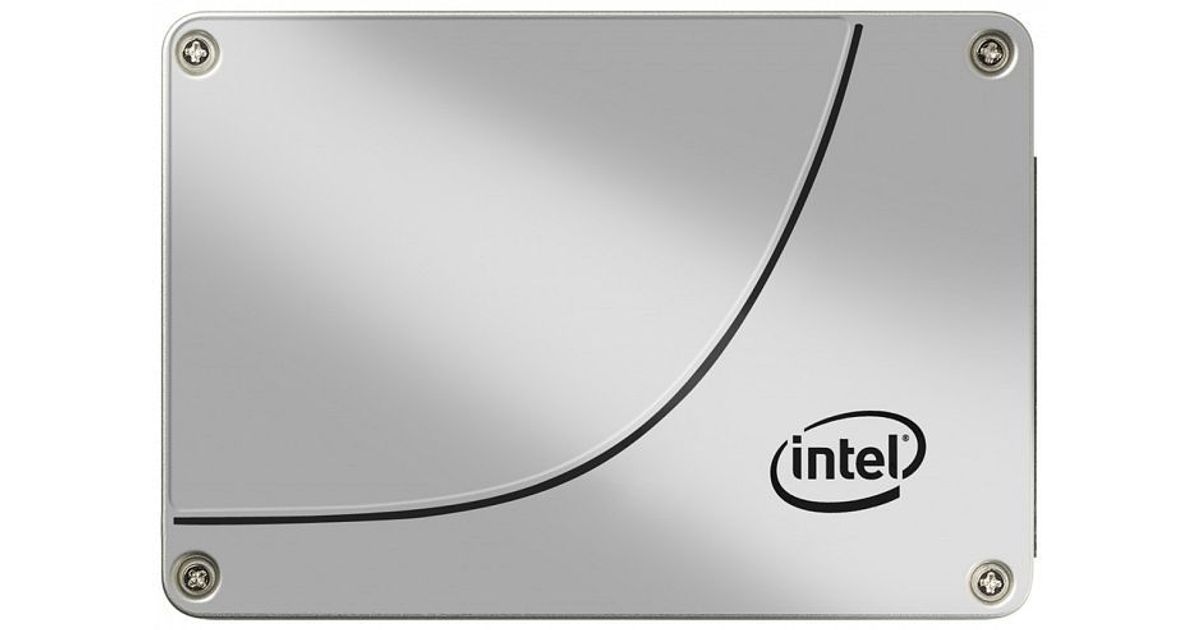

For illustrative purpose only
Intel DC S3710 2.5" 1200 GB Serial ATA III MLC
Intel DC S3710, 1200 GB, 2.5", 550 MB/s, 6 Gbit/s
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Intel |
| Product code | 229196471 |
| Manufacturer part number | SSDSC2BA012T4 |
| Category | SSD kõvakettad |
| Features | |
|---|---|
| SSD form factor | 2.5" |
| Memory type | MLC |
| Data transfer rate | 6 Gbit/s |
| Read speed | 550 MB/s |
| Write speed | 520 MB/s |
| Random read (100% span) | 85000 IOPS |
| Random write (100% span) | 45000 IOPS |
| Read latency | 55 µs |
| Write latency | 66 µs |
| S.M.A.R.T. support | Y |
| End-to-End Data Protection | Y |
| Enhanced Power Loss Data Protection technology | Y |
| SSD temperature monitoring | Y |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Market segment | Server |
| SSD usage tag | Data center |
| SSD ARK ID | 82937 |
| Harmonized System (HS) code | 84717070 |
| Storage | |
|---|---|
| SSD capacity | 1200 GB |
| Ports & interfaces | |
|---|---|
| Interface | Serial ATA III |
| Network | |
|---|---|
| Security algorithms | 256-bit AES |
| Processor | |
|---|---|
| Lithography | 20 nm |
| Processor lithography | 20 nm |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 2000000 h |
| Internal | Y |
| Software | |
|---|---|
| Windows operating systems supported | Y |
| Power | |
|---|---|
| Power consumption (idle) | 0.6 W |
| Brand-specific features | |
|---|---|
| Intel High Endurance Technology (HET) | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 3.13 G |
| Operating shock | 1000 G |
| Non-operating shock | 1000 G |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Height | 7 mm |
| Weight | 94 g |
| Design | |
|---|---|
| Product colour | Silver |
| Other features | |
|---|---|
| Power consumption (active) | 6.9 W |
| Born on date | Q1'15 |
| Drive capacity | 1200 GB |
| Launch date | 2015-01-27T00:00:00 |
| Product brief URL | http://www.intel.com/content/www/us/en/solid-state-drives/ssd-dc-s3710-brief.html |
| Product name | Intel SSD DC S3710 Series (1.2TB, 2.5in SATA 6Gb/s, 20nm, MLC) |
| SSD endurance rating | 24.3PB |
| SSD hardware encryption | AES 256 bit |
| SSD power consumption (active) | 6.9W |
| SSD power consumption (idle) | 0.6W |
| SSD shock | 1000 G/0.5ms |
| SSD weight | 94 grams |
| Sequential reading | 550 MB/s |
| Sequential writing speed | 520 MB/s |
| Status | Launched |
| Product family | Data center SSD |
| Product series | Intel DC S3710 |
| Product codename | Haleyville |
Product Description
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
High Endurance Technology (HET)
High Endurance Technology (HET) in SSD's combines Intel® NAND Flash Memory silicon enhancements and SSD system management techniques to help extend the endurance of the SSD. Endurance is defined as the amount of data that can be written to an SSD during its lifetime.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
High Endurance Technology (HET)
High Endurance Technology (HET) in SSD's combines Intel® NAND Flash Memory silicon enhancements and SSD system management techniques to help extend the endurance of the SSD. Endurance is defined as the amount of data that can be written to an SSD during its lifetime.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
