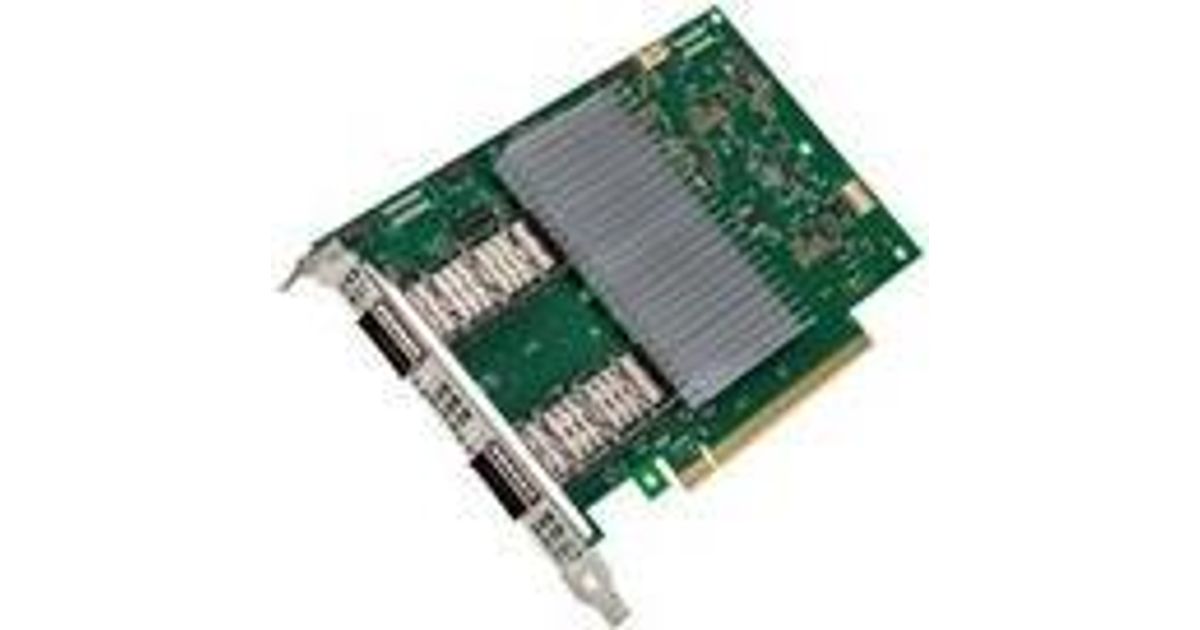

Intel E810-2CQDA2 Internal Fiber 200000 Mbit/s
Intel E810-2CQDA2, Internal, Wired, PCI Express, Fiber, 200000 Mbit/s, Green, Grey
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Intel |
| Product code | 167409761 |
| EAN | 08592978359065 |
| Manufacturer part number | E8102CQDA2G1P5 |
| Category | Network adapters |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber ports quantity | 2 |
| PCI version | 4.0 |
| Optical fiber | |
|---|---|
| Fiber optic connector | QSFP28 |
| Other features | |
|---|---|
| PCI Card form factor | Full-height |
| Networking standards | IEEE 1588 |
| Intel Virtual Machine Device Queues (VMDq) | Y |
| PCI-SIG* SR-IOV Capable | Y |
| On-chip QoS and Traffic Management | Y |
| Intel Flexible Port Partitioning | Y |
| Speed & slot width | 16.0 GT/s, x16 Lane |
| Intelligent Offloads | Y |
| iWARP/RDMA | Y |
| Intel Data Direct I/O Technology | Y |
| Intel Virtualization Technology for Connectivity (VT-c) | Y |
| Storage Over Ethernet | iSCSI, NFS |
| Features | |
|---|---|
| Maximum data transfer rate | 200000 Mbit/s |
| Certification | FCC B, UL, CE, VCCI, BSMI, RCM, KCC |
| Harmonized System (HS) code | 8517620090 |
| Network | |
|---|---|
| LAN controller | Intel E810 |
| Performance | |
|---|---|
| Internal | Y |
| Export Control Classification Number (ECCN) | 5A991 |
| Design | |
|---|---|
| Component for | Server |
| Product colour | Green, Grey |
| Power | |
|---|---|
| Power consumption (typical) | 21.8 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 167 mm |
| Depth | 111 mm |
Product Description
Meet the demanding bandwidth needs of advanced Communications, Cloud, and Storage deployments and improve application efficiency and network performance with innovative and versatile capabilities that optimize high-performance server workloads.
The Intel® Ethernet Network Adapter E810-2CQDA2 delivers up to 200Gbps of total bandwidth in systems that are PCIe 4.0 compliant. Each QSFP28 port supports up to 100Gbps, providing the functionality and throughput of two 100Gbps adapters in a single bifurcated PCIe 4.0 x16 slot.
The Intel® Ethernet Network Adapter E810-2CQDA2 delivers up to 200Gbps of total bandwidth in systems that are PCIe 4.0 compliant. Each QSFP28 port supports up to 100Gbps, providing the functionality and throughput of two 100Gbps adapters in a single bifurcated PCIe 4.0 x16 slot.
