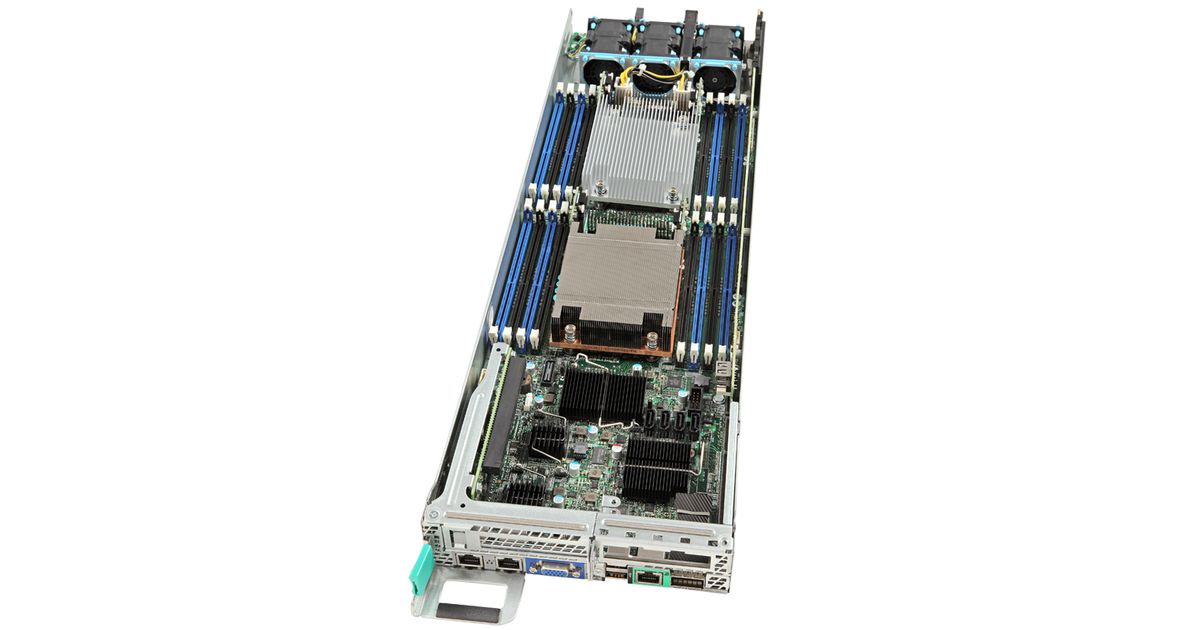

For illustrative purpose only
Intel HNS2600TPF motherboard Intel® C612 LGA 2011-v3
Intel HNS2600TPF, Intel, LGA 2011-v3, Intel® Xeon® E5 Family, E5-2600, 22 nm, 14, 4, 6, 8, 10, 12, 16, 18
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Intel |
| Product code | 229891046 |
| EAN | 00735858288941 |
| Manufacturer part number | HNS2600TPF |
| Category | Motherboards |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011-v3 |
| Intel Xeon series | E5-2600 |
| Lithography | 22 nm |
| Processor number of cores supported | 14, 4, 6, 8, 10, 12, 16, 18 |
| Supported QPI | 6.4,8,9.6 GT/s |
| Number of QPI links | 2 |
| Processor thermal power (max) | 145 W |
| Maximum number of PCI Express lanes | 80 |
| Maximum internal memory supported by processor | 1.02 TB |
| Memory bandwidth supported by processor (max) | 115 GB/s |
| ECC supported by processor | Y |
| PCI Express slots version | 3.0 |
| Thermal Design Power (TDP) | 145 W |
| Performance | |
|---|---|
| Compatible processor series | Intel® Xeon® E5 Family |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Export Control Classification Number (ECCN) | 5A992C |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 1 TB |
| Memory channels | Octa-channel |
| ECC | Y |
| Supported memory clock speeds | 1600,1866,2133 MHz |
| Maximum RDIMM memory | 1.02 TB |
| Memory bandwidth (max) | 115 GB/s |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | SATA |
| RAID support | Y |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics adapter | Y |
| Discrete graphics support | Y |
| Discrete graphics adapter model | Supported |
| Ports & interfaces | |
|---|---|
| Number of SATA connectors | 10 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| USB ports quantity | 4 |
| Internal I/O | |
|---|---|
| Total number of SATA connectors | 10 |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 4 |
| Supported LRDIMM clock speeds | 2133,1600,1866 MHz |
| Maximum LRDIMM memory | 1.02 TB |
| Supported RDIMM clock speeds | 1600,1866,2133 MHz |
| Number of DIMM slots | 16 |
| Number of processors supported | 2 |
| PCI Express slots quantity | 80 |
| Motherboard ARK ID | 83034 |
| Product family | Intel compute module |
| Product series | Intel HNS2600TP |
| Product codename | Taylor Pass |
| Graphics output | VGA |
| Images Type Map | <div><img src="https://www-ssl.intel.com/content/dam/www/public/us/en/images/product/3x2/compute-module-hns2600tp-hns2600tpf-3x2.png" title="45 degree angle view" /></div> |
| Born on date | Q1'15 |
| Launch date | Q1'15 |
| Product name | Intel Compute Module HNS2600TPF |
| Status | Discontinued |
| Maximum memory | 1.02 TB |
| Supported RAID configuration | Up to SW Raid 5 (LSI or RSTE) |
| Last change | 63903513 |
| Expected discontinuance date | Q4'17 |
| Additional information URL | http://www.intel.com/content/www/us/en/motherboards/server-motherboards/server-board-s2600tp.html |
| Riser slot 1 number of lanes | 16 |
| Riser slot 2 number of lanes | 16 |
| Riser slot 3 number of lanes | 24 |
| Riser slot 4 number of lanes | 16 |
| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 1 |
| Network | |
|---|---|
| Wi-Fi | N |
| Ethernet LAN | Y |
| Ethernet interface type | Gigabit Ethernet |
| Design | |
|---|---|
| Component for | Server |
| Rack-Friendly board | Y |
| Chassis type | Rack |
| Product type | Server/Workstation Board |
| Form factor | Custom 6.8" x 18.9" |
| Features | |
|---|---|
| Motherboard chipset | Intel® C612 |
| Physical Address Extension (PAE) | Y |
| Physical Address Extension (PAE) | 46 bit |
| Market segment | Server |
| Integrated BMC with IPMI | Y |
| Harmonized System (HS) code | 84733020 |
| PCI Express CEM revision | 3.0 |
| USB version | 2.0 |
| Intel Node Manager | Y |
| Expansion slots | |
|---|---|
| PCI Express x16 slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Processor special features | |
|---|---|
| Intel Fast Memory Access | Y |
| Intel® Virtualization Technology (Intel® VT) | VT-d |
| Intel Trusted Execution Technology | N |
| Intel Quiet System Technology (QST) | Y |
| Intel I/O Acceleration Technology | Y |
| Intel Flex Memory Access | Y |
| Intel® AES New Instructions (Intel® AES-NI) | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel Rapid Storage Technology enterprise | Y |
| Intelligent Platform Management Interface (IPMI) support | Y |
| Intel Advanced Management Technology | Y |
| Intel Server Management Software | Y |
| Intel Remote Management Module Support | Y |
| Intel Server Customization Technology | Y |
| Intel Build Assurance Technology | Y |
| Intel Quiet Thermal Technology | Y |
| Intel Efficient Power Technology | Y |
| Connector for Intel I/O Expansion Module | 1 |
| Connector for Intel I/O Expansion Module x8 Gen 3 | 1 |
| Intel Intelligent Power Node Manager | Y |
| Integrated systems available | N |
| Embedded options available | N |
| CPU configuration (max) | 2 |
| Weight & dimensions | |
|---|---|
| Width | 480.1 mm |
| Depth | 172.7 mm |
| Packaging content | Integrated compute module including (1) Intel Server Board S2600TPF, (1) bridge board, (1) node power board, (1) PCIe x16 riser card, (2) 1U passive 91.5mm x 91.5mm heat sink, (3) 4056 dual rotor fan, (1) airduct, and (1) 1U node tray |
| Other information | |
|---|---|
| Last order date | Friday, January 29, 2016 |
| End of life date announce | Friday, November 13, 2015 |
| Last receipt attributes date | Friday, February 26, 2016 |
Product Description
A hot-pluggable high density compute module integrated with Intel® Server Board S2600TPF for higher memory capability and flexible configuration options for the Intel® Server Chassis H2000 family.
- Supports two Intel® Xeon® processor E5-2600 v3, 145 W maximum
- Eight memory sockets support LR/R-DIMMs, up to 512 GB maximum memory per node
- Custom half-width form factor (6.4-inch width x 17.7-inch length), up to 4 nodes per 2U
- Three risers with 64 I/O lanes available per board
- Board models with or without integrated FDR InfiniBand
- Dual integrated 1 GbE network controller and an integrated management port
- All nodes, power supplies, and storage are hot swappable
- Mechanically compatible board to Intel® Server Board S2600JF family
Target applications
The Intel Server Board S2600KP family is ideal for high performance computing (HPC) and big data environments where highly demanding distributed processing and intensive application workloads rely on maximum compute density and performance for powerful results.
- Supports two Intel® Xeon® processor E5-2600 v3, 145 W maximum
- Eight memory sockets support LR/R-DIMMs, up to 512 GB maximum memory per node
- Custom half-width form factor (6.4-inch width x 17.7-inch length), up to 4 nodes per 2U
- Three risers with 64 I/O lanes available per board
- Board models with or without integrated FDR InfiniBand
- Dual integrated 1 GbE network controller and an integrated management port
- All nodes, power supplies, and storage are hot swappable
- Mechanically compatible board to Intel® Server Board S2600JF family
Target applications
The Intel Server Board S2600KP family is ideal for high performance computing (HPC) and big data environments where highly demanding distributed processing and intensive application workloads rely on maximum compute density and performance for powerful results.
