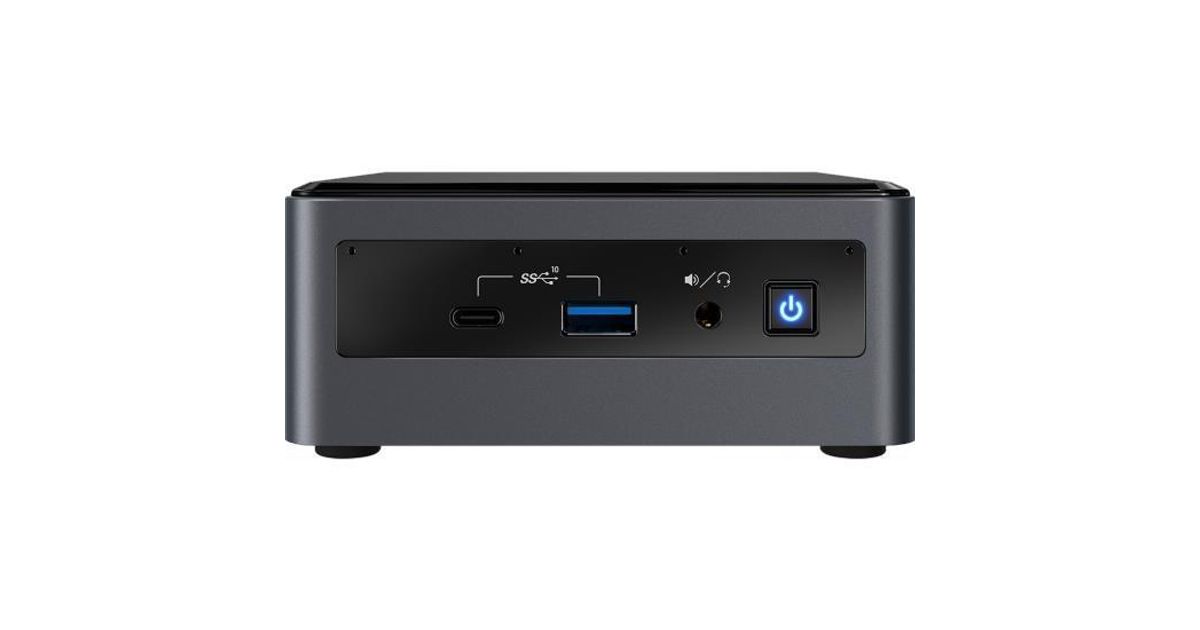

Intel NUC 10 Performance UCFF Black BGA 1528 i3-10110U 2.1 GHz
Intel NUC 10 Performance, UCFF, Mini PC barebone, BGA 1528, DDR4-SDRAM, Ethernet LAN, Wi-Fi 6 (802.11ax)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Intel |
| Product code | 127442389 |
| EAN | 05032037221207 |
| Manufacturer part number | RBINLPIIC10I3H2 |
| Category | Mini PC-s |
| Features | |
|---|---|
| Built-in processor | Y |
| Memory voltage | 1.2 V |
| Storage drive sizes supported | M.2,2.5 |
| SSD form factor | M.2 |
| Number of storage drives supported | 2 |
| DisplayPort version | 1.2 |
| USB version | 2.0/3.2 Gen 2 (3.1 Gen 2) |
| Motherboard form factor | UCFF |
| Trusted Platform Module (TPM) | N |
| Audio output channels | 7.1 channels |
| Harmonized System (HS) code | 84713000 |
| Power supply type | External AC adapter |
| HDD size | 2.5" |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 10th gen Intel® Core™ i3 |
| Processor model | i3-10110U |
| Processor frequency | 2.1 GHz |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor lithography | 14 nm |
| Processor boost frequency | 4.1 GHz |
| Processor cache | 4 MB |
| Thermal Design Power (TDP) | 25 W |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
| Processor codename | Comet Lake |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x4, 2x2, 1x2+2x1, 4x1 |
| Processor socket | BGA 1528 |
| Processor special features | |
|---|---|
| CPU configuration (max) | 1 |
| Intel® vPro™ Platform Eligibility | N |
| Intel® High Definition Audio (Intel® HD Audio) | N |
| Embedded options available | N |
| Intel Rapid Storage Technology | Y |
| Intel® AES New Instructions (Intel® AES-NI) | Y |
| Intel® Quick Sync Video Technology | Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Y |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Intel 64 | Y |
| Intel® My WiFi Technology (Intel® MWT) | Y |
| Idle States | Y |
| Enhanced Intel SpeedStep Technology | Y |
| Thermal Monitoring Technologies | Y |
| Intel Flex Memory Access | Y |
| Intel® Identity Protection Technology (Intel® IPT) | Y |
| Intel Trusted Execution Technology | N |
| Execute Disable Bit | Y |
| Intel TSX-NI | N |
| Intel® Secure Key | Y |
| Intel Stable Image Platform Program (SIPP) | N |
| Intel® OS Guard | Y |
| Intel Clear Video Technology | Y |
| Intel® Optane™ Memory Ready | Y |
| Intel® Platform Trust Technology (Intel® PTT) | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Processor ARK ID | 196451 |
| Memory | |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2666 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory bandwidth (max) | 42.6 GB/s |
| Removable memory card slot | SDXC with UHS-II support |
| ECC | N |
| Other features | |
|---|---|
| Number of DIMM slots | 2 |
| ARK ID | 214604 |
| Compatible operating systems | Windows 11 (64-bit), Windows 10 (64-bit) |
| Additional headers | CEC, 2x USB2.0, FRONT_PANEL, RGB |
| Graphics output | HDMI 2.0b; USB-C (DP1.2) |
| Status | Launched |
| Supported RAID configuration | 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1) |
| Launch date | Q2'21 |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| RAID levels | 0, 1 |
| Storage | |
|---|---|
| Card reader integrated | Y |
| Compatible memory cards | SDXC |
| Graphics | |
|---|---|
| On-board graphics adapter | N |
| Graphics adapter family | Intel |
| On-board graphics adapter model | Intel® UHD Graphics |
| Mounting | |
|---|---|
| Number of displays supported | 3 |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| LAN controller | Intel® I219-V |
| Bluetooth | Y |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Internal USB 2.0 ports quantity | 2 |
| HDMI version | 2.0b |
| Combo headphone/mic port | Y |
| USB ports quantity | 7 |
| Thunderbolt 3 ports quantity | 1 |
| M.2 card slot (storage) | 2242/2280 |
| DC-in jack | Y |
| Number of SATA connectors | 2 |
| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Internal I/O | |
|---|---|
| Number of SATA III connectors | 2 |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Design | |
|---|---|
| Chassis type | UCFF |
| Product colour | Black |
| Product type | Mini PC barebone |
| On/off switch | Y |
| Performance | |
|---|---|
| Consumer infrared Rx sensor | Y |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Export Control Classification Number (ECCN) | 5A992C |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10 x64 |
| Operating system installed | N |
| Power | |
|---|---|
| AC adapter output voltage | 19 V |
| DC input voltage | 19 V |
| Weight & dimensions | |
|---|---|
| Width | 117 mm |
| Depth | 112 mm |
| Height | 51 mm |
| Packaging content | |
|---|---|
| Power cord included | Y |
| Processor included | Intel® Core™ i3-10110U Processor (4M Cache, up to 4.10 GHz) |
Product Description
Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel® HD Audio Technology
Intel® High Definition Audio (Intel® HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel® HD Audio has the technology needed to support the latest and greatest audio content.
Intel® Rapid Storage Technology
Intel® Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel® Matrix Storage Technology.
Intel® Platform Trust Technology (Intel® PTT)
Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel® HD Audio Technology
Intel® High Definition Audio (Intel® HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel® HD Audio has the technology needed to support the latest and greatest audio content.
Intel® Rapid Storage Technology
Intel® Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel® Matrix Storage Technology.
Intel® Platform Trust Technology (Intel® PTT)
Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.
