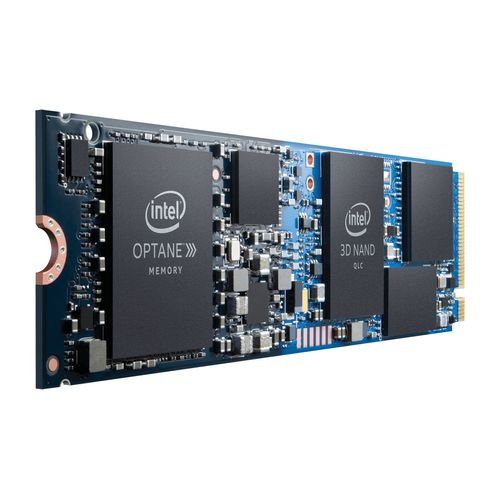

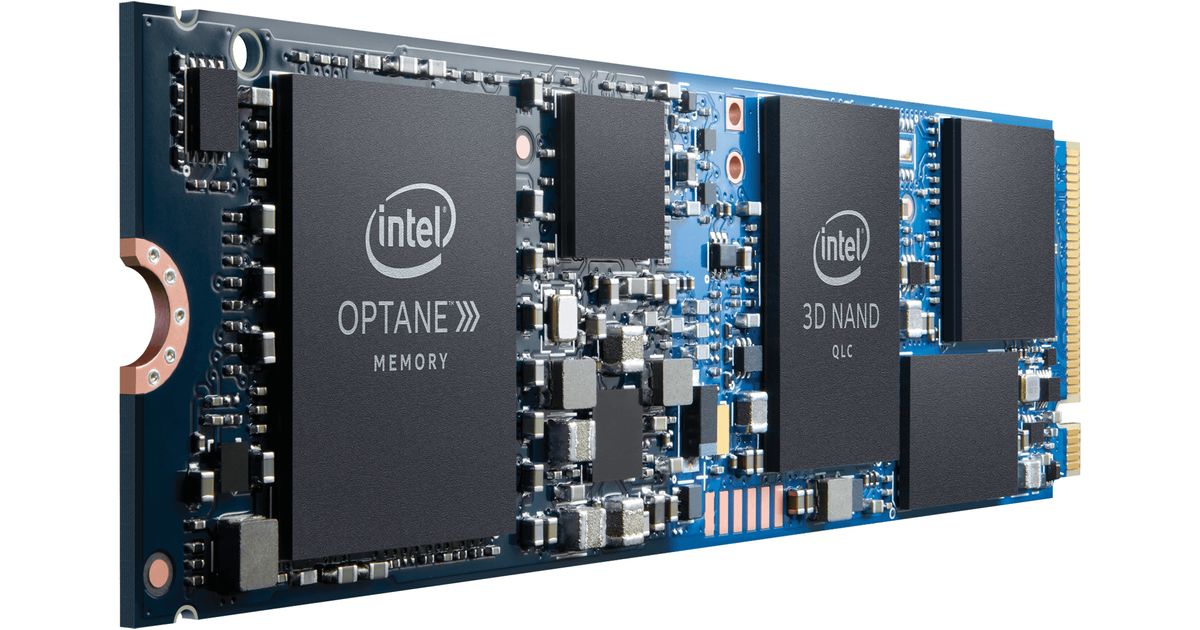

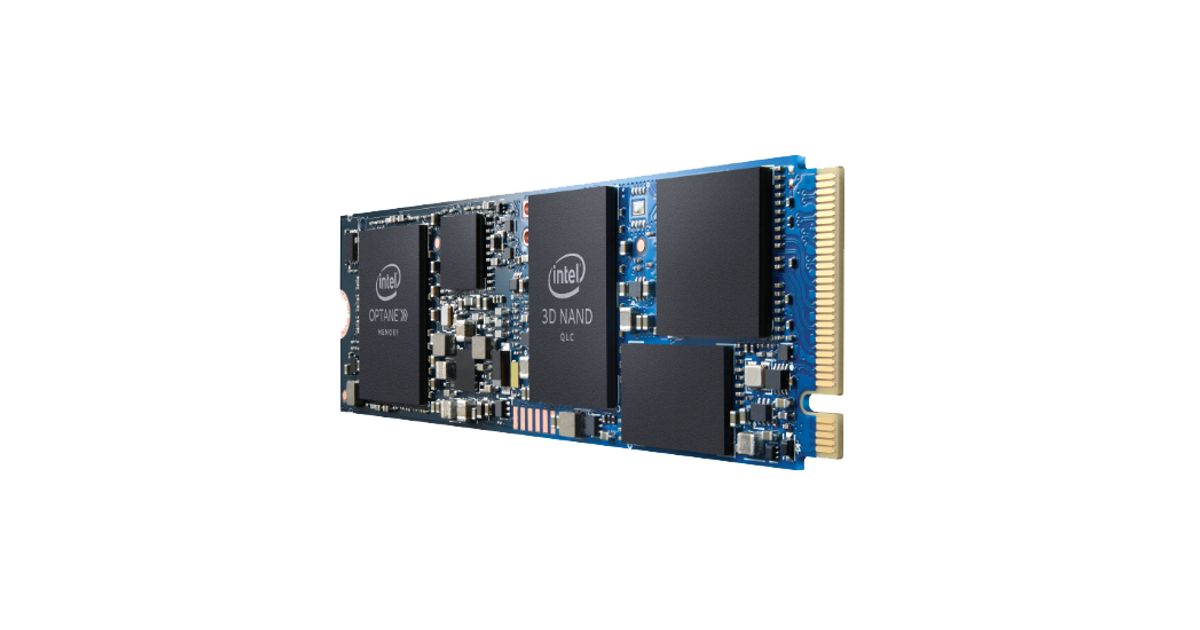

Intel ® Optane™ Memory H10 with Solid State Storage ( ® Optane™ Memory 16GB + ® QLC 3D NAND SSD 256GB, M.2 80mm PCIe 3.0)
Intel ® Optane™ Memory H10 with Solid State Storage ( ® Optane™ Memory 16GB + ® QLC 3D NAND SSD 256GB, M.2 80mm PCIe 3.0), 256 GB, M.2
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Intel |
| Product code | 187479748 |
| EAN | 00735858427135 |
| Manufacturer part number | HBRPEKNX0101A08 |
| Category | SSD kõvakettad |
| Features | |
|---|---|
| SSD form factor | M.2 |
| Read latency | 8 µs |
| Write latency | 30 µs |
| End-to-End Data Protection | Y |
| Enhanced Power Loss Data Protection technology | Y |
| SSD temperature monitoring | Y |
| TBW rating | 75 |
| Harmonized System (HS) code | 84717070 |
| Temperature monitoring and logging | Y |
| Storage | |
|---|---|
| SSD capacity | 256 GB |
| Ports & interfaces | |
|---|---|
| Interface | PCI Express 3.0 |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 1600000 h |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G158570 |
| Brand-specific features | |
|---|---|
| Intel® Rapid Start Technology | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Maximum operating temperature | 70 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 3.13 G |
| Operating / non-operating shock | 1000 G / 0.5 ms and 1500 G / 0.5 ms |
| Weight & dimensions | |
|---|---|
| Weight | 10 g |
| Other features | |
|---|---|
| Target market | Gaming, Content Creation |
| Power consumption (active) | 5.3 W |
| Launch date | Q2'19 |
| Product brief URL | https://www.intel.com/content/www/us/en/products/docs/memory-storage/optane-memory/optane-memory-h10-solid-state-storage-brief.html |
| Random write (8GB span) | 150000 IOPS |
| SSD endurance rating | 75TBW |
| SSD power consumption (idle) | L1.2 : <12mW |
| SSD shock | 1000 G / 0.5 ms and 1500 G / 0.5 ms |
| Sequential reading | 1450 MB/s |
| Sequential writing speed | 650 MB/s |
| Status | Launched |
| Random read (8GB span) | 230000 IOPS |
| Product series | Intel® Optane™ Memory H10 with Solid State Storage |
| Product codename | Teton Glacier |
Product Description
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Intel® Rapid Start Technology
Intel® Rapid Start Technology allows quick system resumes from the hibernate state.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
