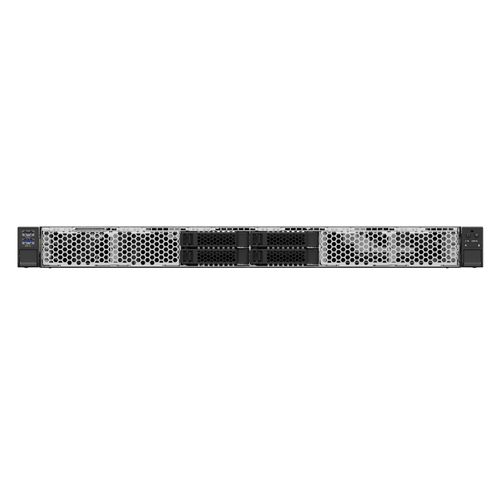

Intel Server System M50CYP1UR204 Intel C621A LGA 4189 Rack (1U)
Intel Server System M50CYP1UR204, Intel C621A, LGA 4189, Intel, DDR4-SDRAM, 12000 GB, 2.5"
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Intel |
| Product code | 345174837 |
| EAN | 00675901870153 |
| Manufacturer part number | M50CYP1UR204 |
| Category | Servers |
| Features | |
|---|---|
| Built-in processor | N |
| Motherboard chipset | Intel C621A |
| Number of storage drives supported | 4 |
| Storage drive sizes supported | 2.5" |
| Integrated BMC with IPMI | Y |
| Trusted Platform Module (TPM) | Y |
| Trusted Platform Module (TPM) version | 2.0 |
| Harmonized System (HS) code | 8473301180 |
| Power supply type | AC |
| Riser card included | Y |
| Processor | |
|---|---|
| Processor socket | LGA 4189 |
| Processor manufacturer | Intel |
| Thermal Design Power (TDP) | 270 W |
| Other features | |
|---|---|
| Number of processors supported | 2 |
| USB 2.0 ports quantity | 1 |
| Backplanes support | Y |
| Redundant fans support | Y |
| Motherboard | Intel® Server Board M50CYP2SB1U |
| Expected discontinuance date | 2026 |
| Extended warranty available for purchase (select countries) | Y |
| Launch date | Q2'21 |
| Riser slot 1 number of lanes | 16 |
| Riser slot 2 number of lanes | 24 |
| Status | Launched |
| Supported RAID configuration | 0/1/5/10 |
| Target market | Mainstream |
| Riser slot 3 number of lanes | 16 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 12000 GB |
| Storage | |
|---|---|
| Hot-swap HDD bays | Y |
| Design | |
|---|---|
| Number of 2.5" bays | 4 |
| Chassis type | Rack (1U) |
| Rack rails | N |
| Rack-Friendly board | Y |
| Heat sink included | Y |
| Storage controllers | |
|---|---|
| Supported storage drive types | SSD |
| RAID levels | 0, 1, 5, 10 |
| Ports & interfaces | |
|---|---|
| USB ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Number of SATA connectors | 10 |
| Number of SAS ports | 8 |
| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 2 |
| Performance | |
|---|---|
| Export Control Classification Number (ECCN) | 5A002U |
| Commodity Classification Automated Tracking System (CCATS) | G157815L1 |
| Processor special features | |
|---|---|
| Intel Advanced Management Technology | Y |
| Intel Remote Management Module Support | Y |
| Intel Intelligent Power Node Manager | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel® Optane™ Memory Ready | Y |
| CPU configuration (max) | 2 |
| Power | |
|---|---|
| Power supply | 1300 W |
| Redundant power supply (RPS) support | Y |
| Weight & dimensions | |
|---|---|
| Width | 781 mm |
| Depth | 438 mm |
| Height | 43 mm |
| Graphics | |
|---|---|
| On-board graphics adapter | Y |
Product Description
The Intel® Server System M50CYP Family is designed to be your primary workhorse server for all your mainstream needs, including collaboration, storage, database, web server, ecommerce, analytics, and more.
