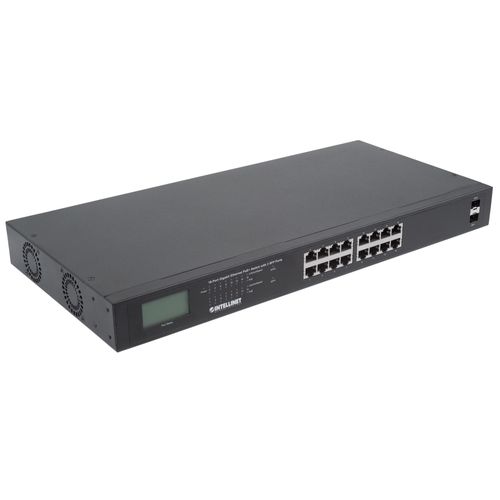

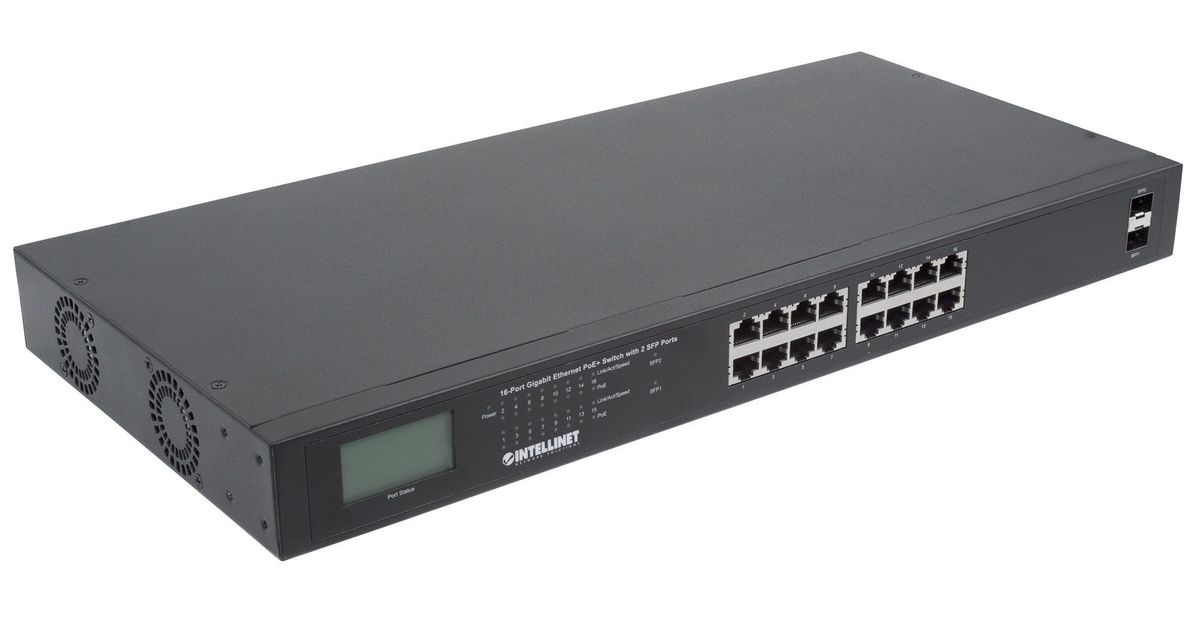

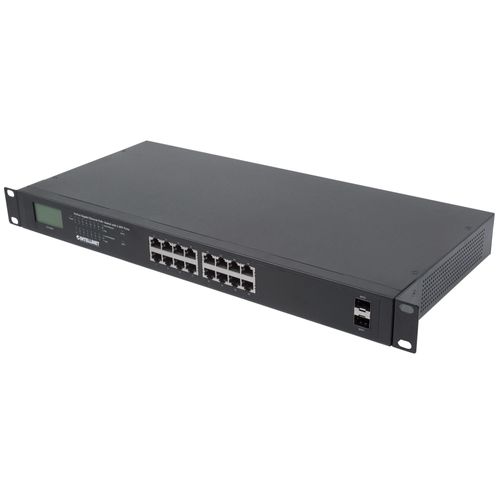

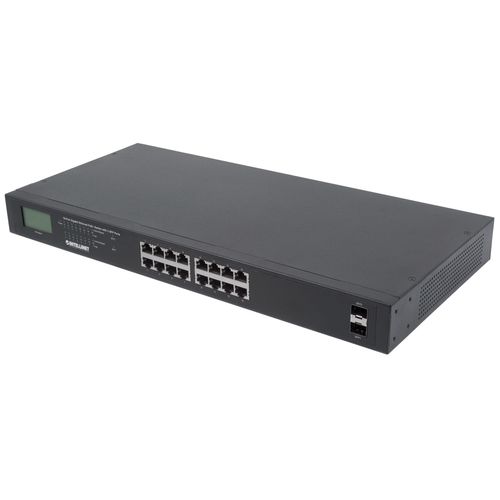

Intellinet 16-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports, LCD Display, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 370 W, Endspan, 19" Rackmount (Euro 2-pin plug)
Intellinet 16-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports, LCD Display, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 370 W, Endspan, 19" Rackmount (Euro 2-pin plug), Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Intellinet |
| Product code | 185710220 |
| EAN | 00766623561259 |
| Manufacturer part number | 561259 |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
| Noise level | 21.3 dB |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 100BASE-TX,1000BASE-T |
| Cable types supported | Cat5,Cat5e |
| Auto MDI/MDI-X | Y |
| Auto-sensing | Y |
| Features | |
|---|---|
| Full duplex | Y |
| Flow control support | Y |
| Certification | FCC A, CE, RoHS |
| Power protection features | Over voltage, Overload, Short circuit |
| Data transmission | |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 36 Gbit/s |
| Store-and-forward | Y |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 0.5 MB |
| Design | |
|---|---|
| Rack mounting | Y |
| Stackable | N |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power, Speed |
| Number of fans | 2 fan(s) |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 144000 h |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 420 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 441.1 mm |
| Depth | 204.3 mm |
| Height | 44 mm |
| Weight | 4 kg |
| Packaging content | |
|---|---|
| Cables included | AC |
| Manual | Y |
| Rack mount kit | Y |
Product Description
High-Power Unmanaged PoE Switch with LCD Status Display_x000D_
_x000D_
The Intellinet Network Solutions 16-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports (561259) passes both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with 16 Gigabit Ethernet ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1,000 Mbps._x000D_
_x000D_
Power over Ethernet 802.3at_x000D_
_x000D_
This high-powered switch supports the IEEE 802.3at protocol and can inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short-circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest the use of an Intellinet Network Solutions PoE/PoE+ Splitter._x000D_
_x000D_
Innovative LCD Status Display_x000D_
_x000D_

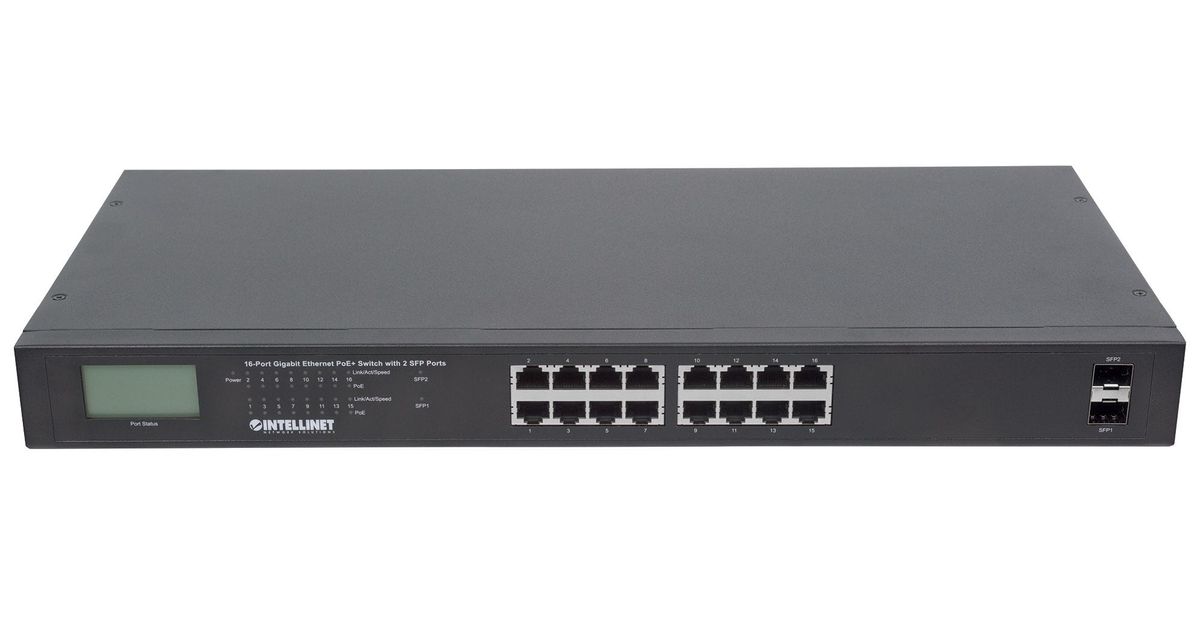

The Intellinet Network Solutions 16-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports is equipped with an LCD status screen on the front that provides real-time power information. This includes how much power each connected PoE device consumes, the combined used-power total of all connected devices and the total power available. Additionally, the LCD screen informs users of potential warnings for overload, high temperature, short-circuit protection and others. This feature always keeps you informed about the status of your PoE switch with a glance at the screen._x000D_
_x000D_
Eliminate Bottlenecks with 18 Gigabit Ports._x000D_
_x000D_
Equipped with 16 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, this switch offers plenty of performance for your computers, servers and other networking devices. In addition, two small, form-factor pluggable GBIC module slots (SFP) provide fibre connectivity for greater distances. These are not shared combo-ports but true Gigabit ports, pushing the total available bandwidth up to 36 Gbps. _x000D_
_x000D_
* Total PoE budget for this switch is 370 watts. Per-port average power distribution is 23.125 watts; maximum per-port power usage cannot exceed 30 watts.
_x000D_
The Intellinet Network Solutions 16-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports (561259) passes both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with 16 Gigabit Ethernet ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1,000 Mbps._x000D_
_x000D_
Power over Ethernet 802.3at_x000D_
_x000D_
This high-powered switch supports the IEEE 802.3at protocol and can inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short-circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest the use of an Intellinet Network Solutions PoE/PoE+ Splitter._x000D_
_x000D_
Innovative LCD Status Display_x000D_
_x000D_
The Intellinet Network Solutions 16-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports is equipped with an LCD status screen on the front that provides real-time power information. This includes how much power each connected PoE device consumes, the combined used-power total of all connected devices and the total power available. Additionally, the LCD screen informs users of potential warnings for overload, high temperature, short-circuit protection and others. This feature always keeps you informed about the status of your PoE switch with a glance at the screen._x000D_
_x000D_
Eliminate Bottlenecks with 18 Gigabit Ports._x000D_
_x000D_
Equipped with 16 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, this switch offers plenty of performance for your computers, servers and other networking devices. In addition, two small, form-factor pluggable GBIC module slots (SFP) provide fibre connectivity for greater distances. These are not shared combo-ports but true Gigabit ports, pushing the total available bandwidth up to 36 Gbps. _x000D_
_x000D_
* Total PoE budget for this switch is 370 watts. Per-port average power distribution is 23.125 watts; maximum per-port power usage cannot exceed 30 watts.
