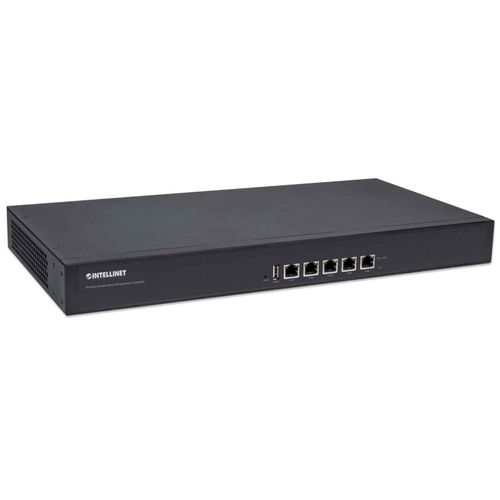

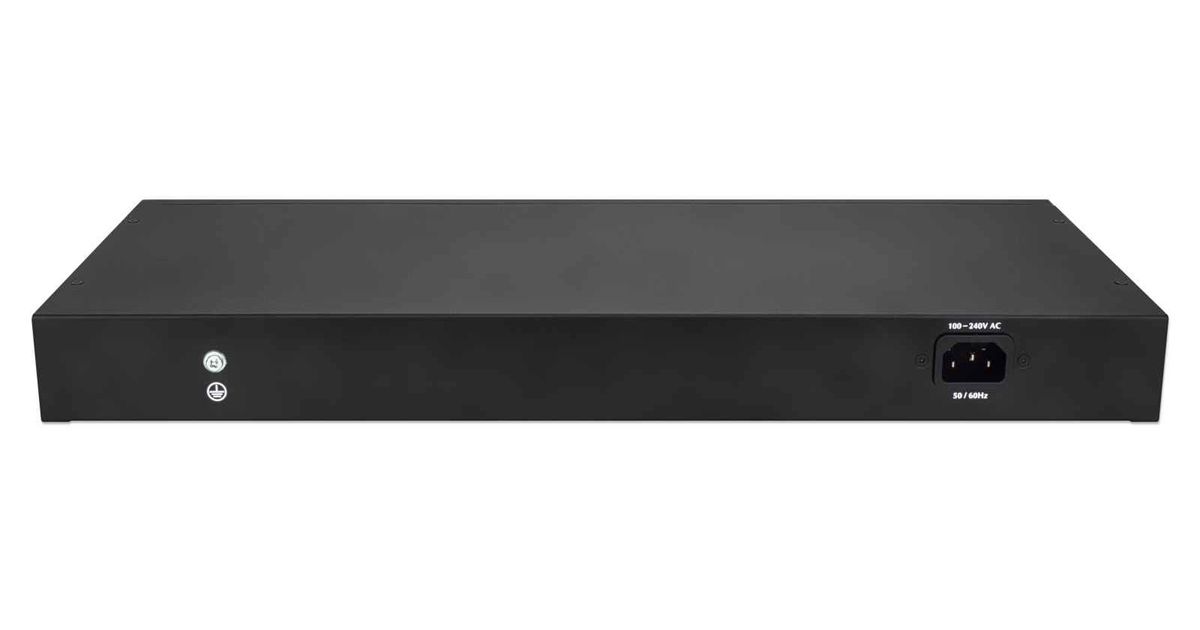

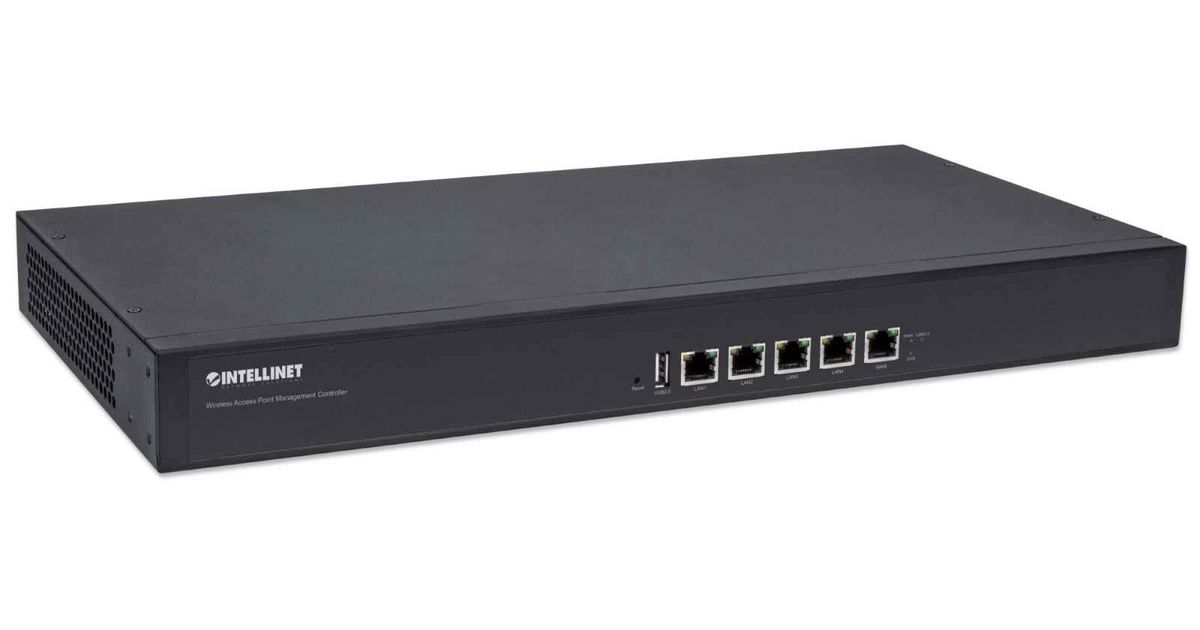

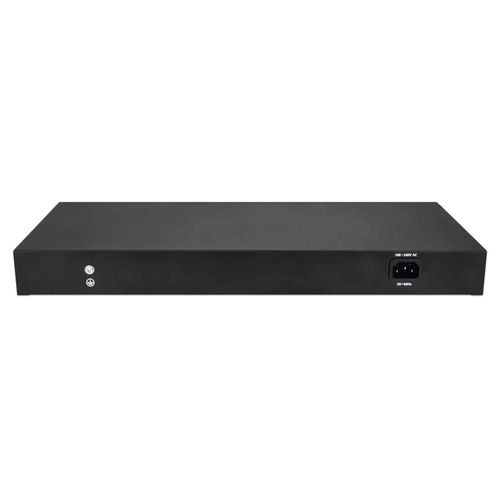

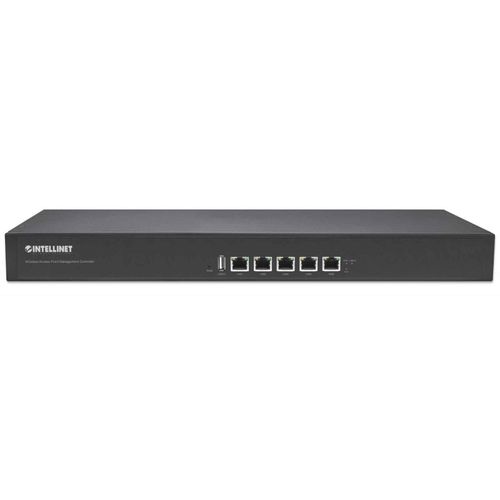

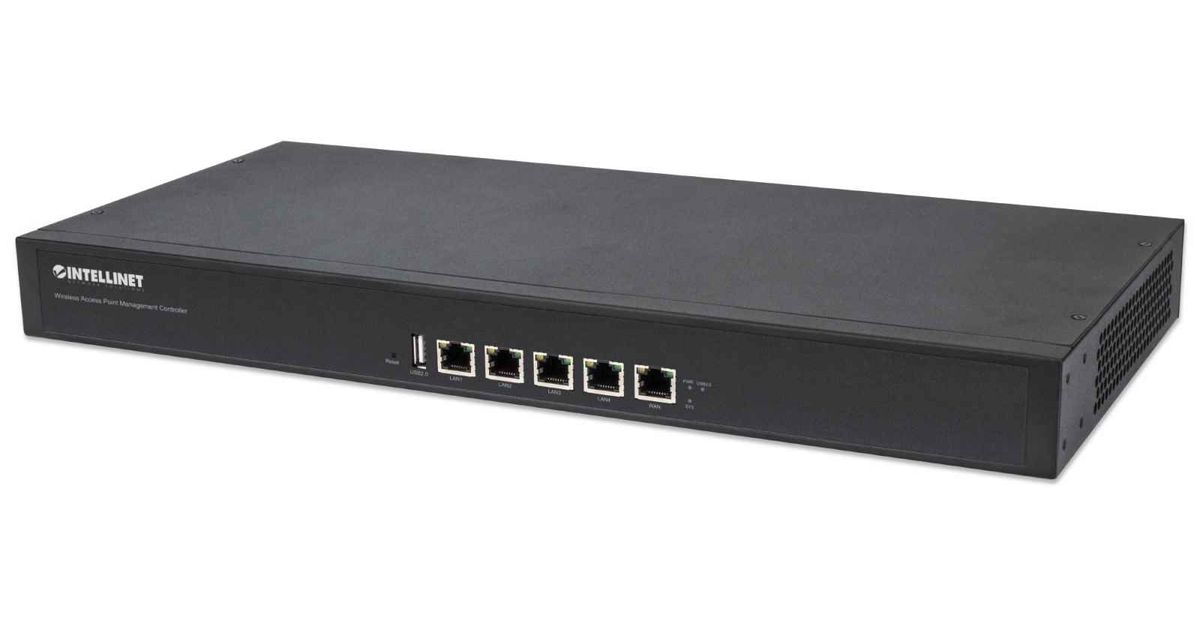

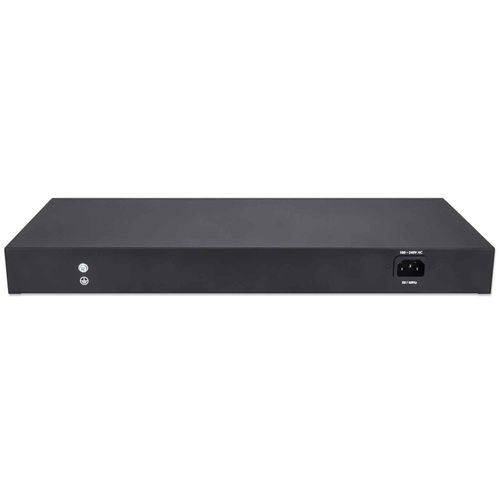

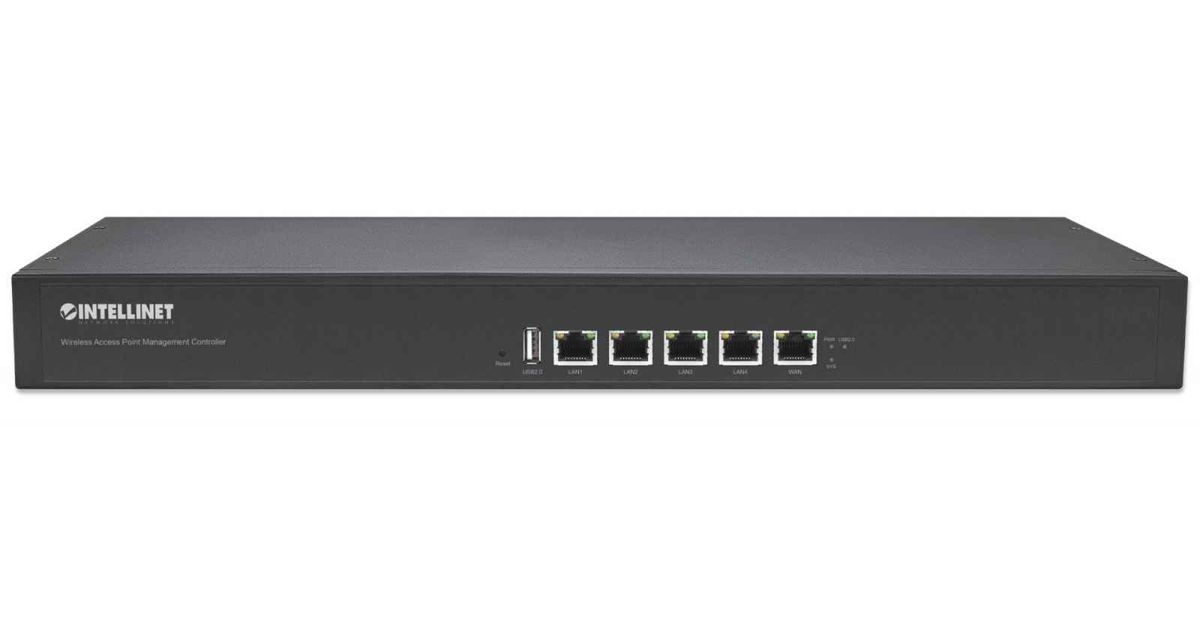

For illustrative purpose only

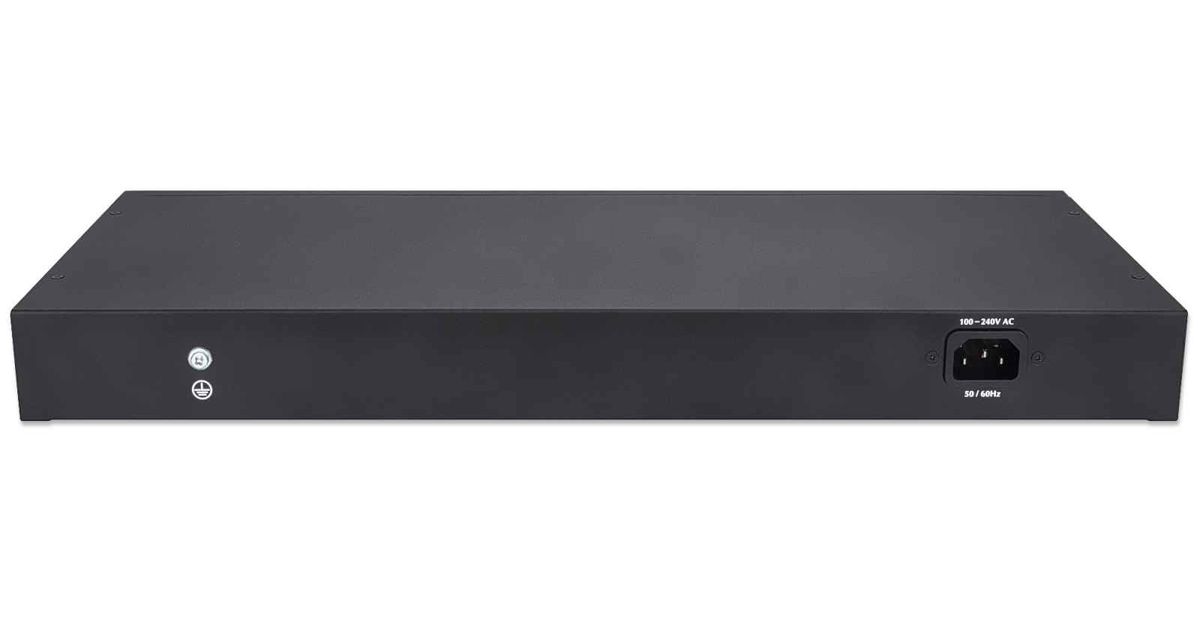

Intellinet 525749 gateway/controller 10, 100, 1000 Mbit/s
Intellinet 525749, Black, Rack mounting, Power, FCC A, CE, RoHS, 880 MHz, 256 MB
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Intellinet |
| Product code | 03396495 |
| EAN | 00766623525749 |
| Manufacturer part number | 525749 |
| Category | Access points and routers |
| Design | |
|---|---|
| Product colour | Black |
| LED indicators | Power |
| Reset button | Y |
| Mounting | |
|---|---|
| Mounting type | Rack mounting |
| Features | |
|---|---|
| Certification | FCC A, CE, RoHS |
| Built-in processor | Y |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Harmonized System (HS) code | 85176990 |
| Processor | |
|---|---|
| Processor frequency | 880 MHz |
| Number of processors installed | 1 |
| Other features | |
|---|---|
| Internal memory | 256 MB |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u |
| USB 2.0 ports quantity | 1 |
| Memory | |
|---|---|
| Internal memory type | DDR3 |
| Performance | |
|---|---|
| Flash memory | 16 MB |
| DHCP server | Y |
| Syslog | Y |
| Network | |
|---|---|
| DHCP client | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Dynamic DNS (DDNS) | Y |
| Security algorithms | SSH |
| Protocols | |
|---|---|
| DMZ support | Y |
| Security | |
|---|---|
| MAC address filtering | Y |
| Firewall security | Y |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| WAN connection | Ethernet (RJ-45) |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Y |
| Power | |
|---|---|
| Output voltage | 5 V |
| Output current | 2 A |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 208 mm |
| Height | 44 mm |
| Weight | 1.7 kg |
| Packaging content | |
|---|---|
| Manual | Y |
| Cables included | AC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Product Description
Manages up to 200 Access Points, Built-in Router Feature With One WAN Port, 19" Rackmountable
