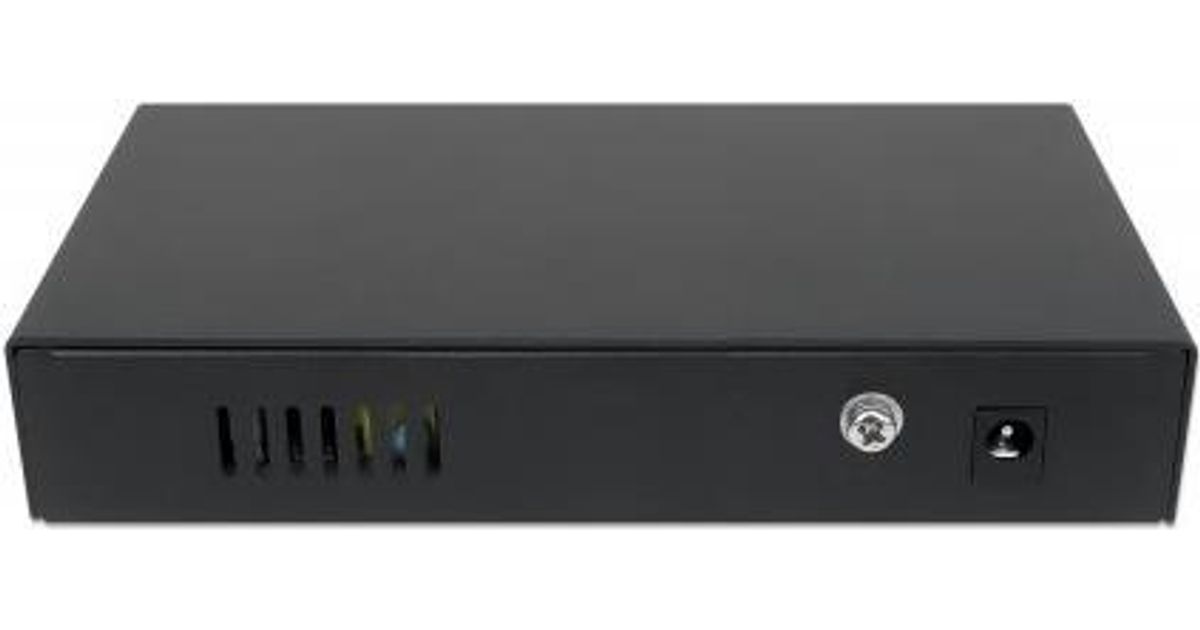

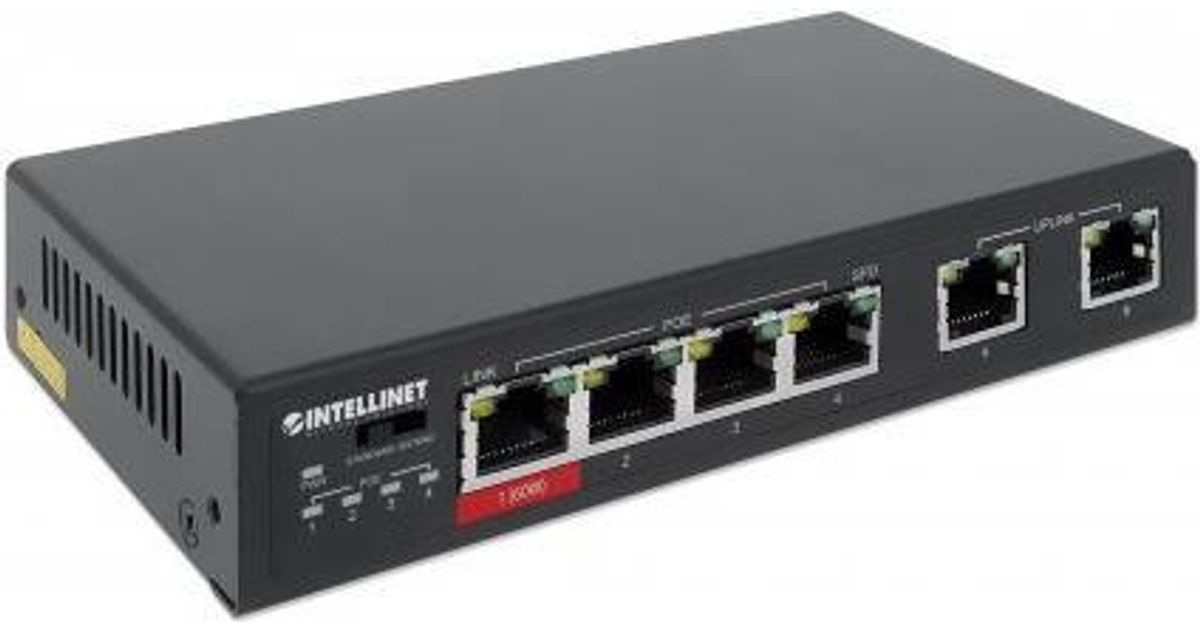

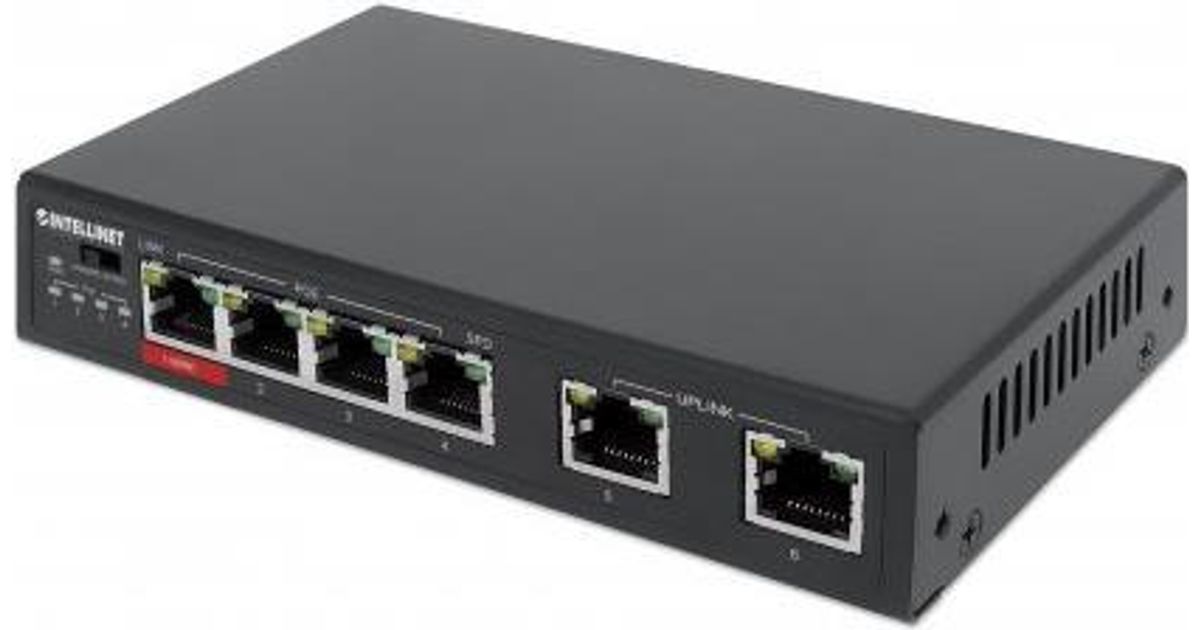

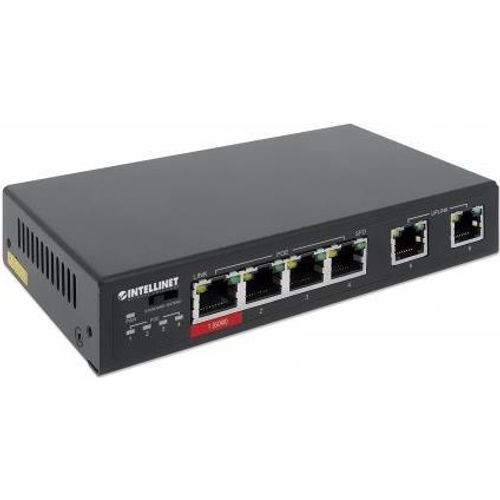

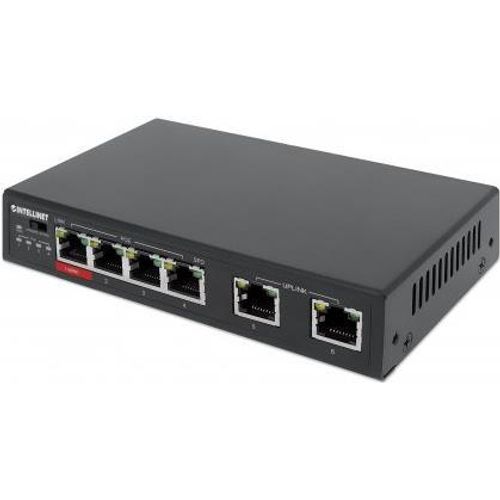

Intellinet 561686 network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Intellinet 561686, Fast Ethernet (10/100), Power over Ethernet (PoE)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Intellinet |
| Product code | 216436590 |
| EAN | 00766623561686 |
| Manufacturer part number | 561686 |
| Category | Switches & accessories |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Uplink ports quantity | 2 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat5e |
| VLAN support | Y |
| Data transmission | |
|---|---|
| MAC address table | 1000 entries |
| Switching capacity | 1.2 Gbit/s |
| Store-and-forward | Y |
| Design | |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power, Speed |
| Features | |
|---|---|
| Certification | FCC Class B, CE, RoHS |
| Harmonized System (HS) code | 85176990 |
| Power | |
|---|---|
| Power source | AC/DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 44 - 57 V |
| Power supply | |
|---|---|
| Power supply included | Y |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 65 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 87 mm |
| Depth | 153 mm |
| Height | 29 mm |
| Weight | 410 g |
| Packaging content | |
|---|---|
| Manual | Y |
Product Description
A Fast Ethernet PoE Switch with extend mode and a lot of PoE power - ideal for IP camera installations
The 6-Port Fast Ethernet Switch with 4 PoE Ports from Intellinet Network Solutions stands out with useful features that are particularly useful for IP camera installations. A manual PoE extend mode – to be activated at the flip of a switch – reduces network speed and extends PoE support up to 250 m (820 ft.), which is ideal for remote IP cams and other PoE devices.
Save time and money with Power over Ethernet
Three of its four PoE ports deliver data and power up to 30 W each to IEEE 802.3at or IEEE 802.3af-compliant PoE devices such as wireless access points, VoIP phones and IP cameras. One high-power PoE port even delivers up to 60 W with a total PoE power budget of 65 watts. Devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short-circuit, overload and high-voltage protection function, your equipment is well protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet Network Solutions PoE/PoE+ Splitter.
The 6-Port Fast Ethernet Switch with 4 PoE Ports from Intellinet Network Solutions stands out with useful features that are particularly useful for IP camera installations. A manual PoE extend mode – to be activated at the flip of a switch – reduces network speed and extends PoE support up to 250 m (820 ft.), which is ideal for remote IP cams and other PoE devices.
Save time and money with Power over Ethernet
Three of its four PoE ports deliver data and power up to 30 W each to IEEE 802.3at or IEEE 802.3af-compliant PoE devices such as wireless access points, VoIP phones and IP cameras. One high-power PoE port even delivers up to 60 W with a total PoE power budget of 65 watts. Devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short-circuit, overload and high-voltage protection function, your equipment is well protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet Network Solutions PoE/PoE+ Splitter.
